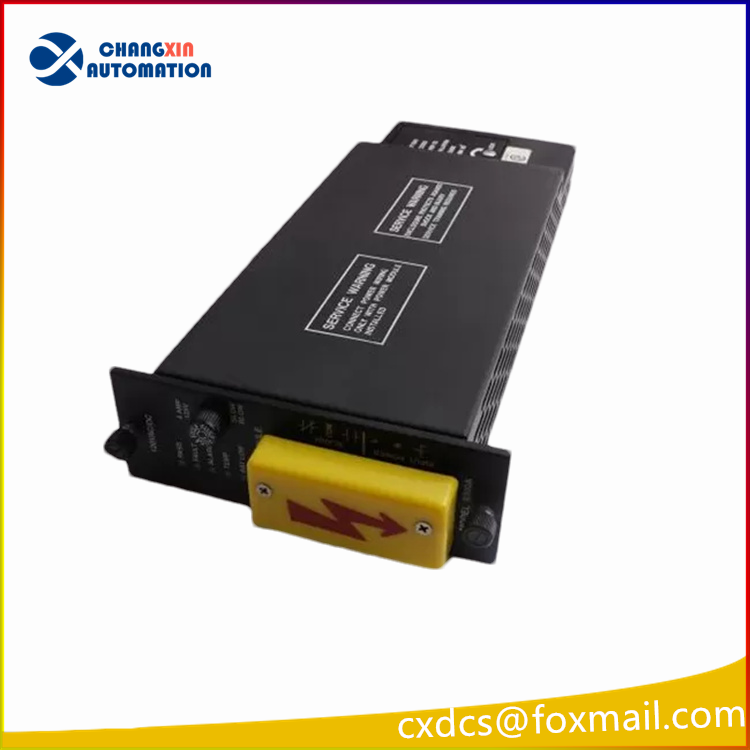

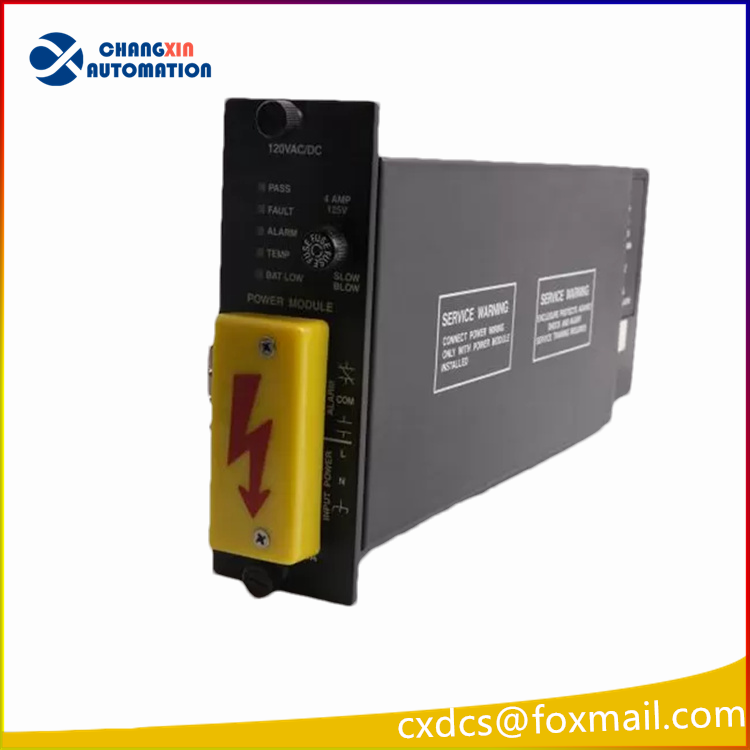

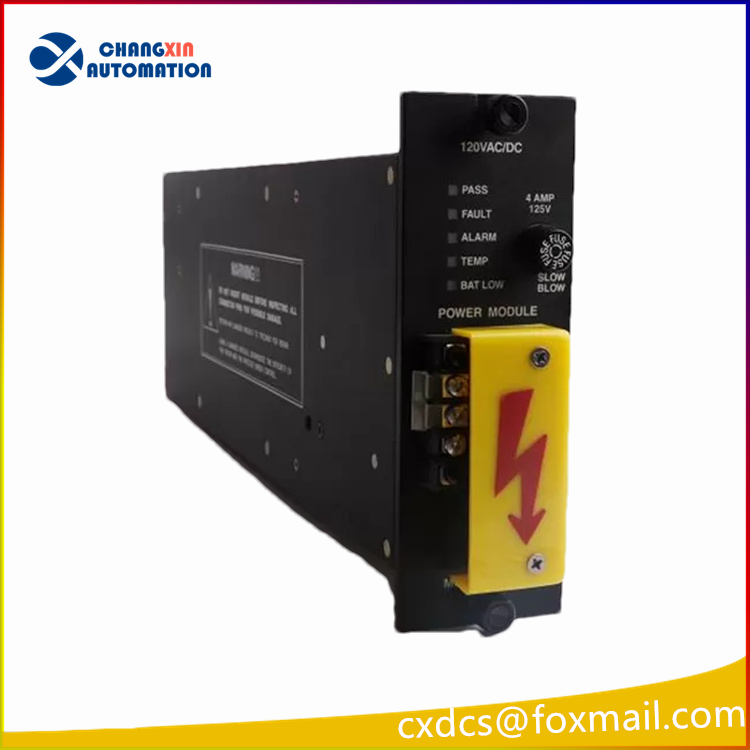

Information about the TRICONEX 8300A Main Power Supply Module
Basic Information
The TRICONEX 8300A Main Power Supply Module is manufactured by Triconex and is a widely used power supply module in the industrial field. Its order number, item number, product number, and material code are all 8300A. This module belongs to the analog input module 12.
Technical Parameters
Operating Voltage: The operating voltage is quite flexible, ranging from 0 to 5VDC or -5 to +5VDC, with a fluctuation range of +6%. Additionally, there are also cases where the operating voltage is 50 and 115VAC/DC.
Accuracy: Within the temperature range of 0°C to 60°C, the accuracy can reach 0.15% of FSR.
Common Mode Rejection: The common mode rejection capability is -85dB (DC – 100Hz).
This module is one type of card for the SIS safety system. There are many other related cards in the Invensys safety system module and DCS safety system module, such as the analog output module AO3481, input/output module I/O3501E, various digital input modules (such as 3502E 48VdcVac, 3503E 24Vac, etc.) and various digital output modules (such as 3603B/E/T, 3604E 24Vdc, etc.).
Application fields and system applications of TRICONEX
Application industries
TRICONEX process safety solutions are widely applied in industries with high and strict safety requirements. The specific applications are as follows:
Petroleum, chemical, coal chemical, and natural gas industries: In these industries, the production process involves a large amount of flammable, explosive, and toxic substances, and safety requirements are extremely high. The TRICONEX system can provide reliable safety guarantees for the production process, such as being used in emergency shutdown systems (ESD) in chemical production. When dangerous signals such as excessive temperature or abnormal pressure are detected, it can immediately stop the production process to prevent accidents
Electric power industry: It can be used for monitoring and control of the power system, such as monitoring and controlling switch status, circuit breaker status, etc., to ensure the stability and safety of the power system
Rail transportation industry: It can ensure the safety during the operation of rail transit. However, regarding the specific application methods and scenarios, no detailed information is provided in the references. However, given its high safety and reliability, it can be inferred that it may be applied in train operation control, signal systems, etc.
Nuclear power industry: It can provide continuous safety interlocks and protection for the safety of nuclear power plants and key units, as well as process monitoring. It can also safely shut down in case of necessity to ensure the safe operation of the nuclear power plant
