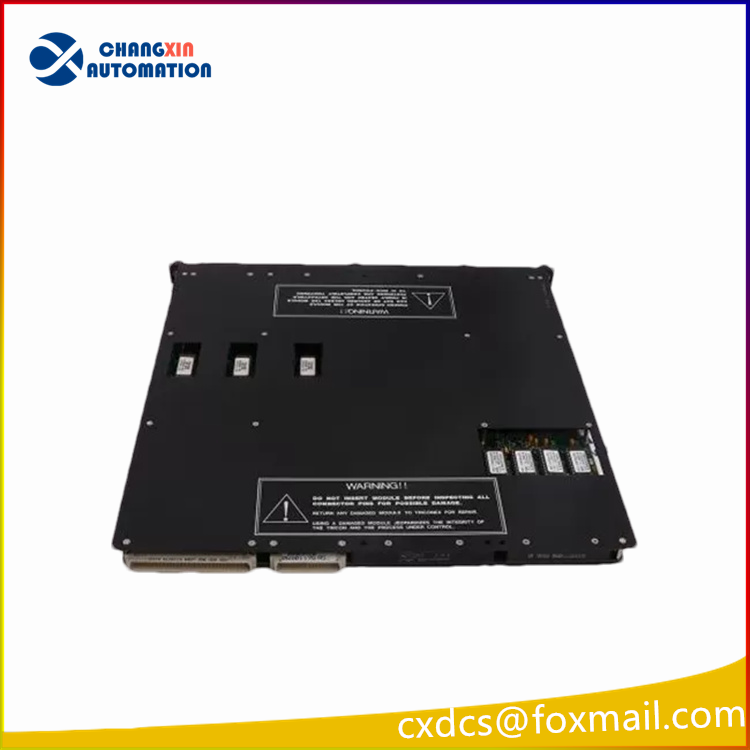

Triconex CIM3211 Digital Output Module

The TRICONEX CIM3211 is a Digital Output Module designed for use in safety systems, particularly in industries like oil and gas, chemical, and power.

Technical Specifications:
●Number of Channels: 32 digital output channels
●Output Type: High or Low state
●Operating Temperature Range: -40°C to +70°C
●Storage Temperature Range: -40°C to +85°C
●Humidity: 5% to 95% non-condensing
●Vibration Resistance: 5g @ 10-500 Hz
●Dimensions: 12.8cm x13.4cmx 4.4 cm
●Weight: 0.39 kg
●Power Consumption: 5 W maximum
●Input Voltage Range: 10.8 VDC to 30 VDC
●Input Current: 450 mA maximum
●Isolation Voltage: 1500 VAC minimum
●Isolation Resistance: 1000 MO minimum
●Output Voltage Range: 0 VDC to 30 VDC
●Output Current: 0.5 A maximum per channel, 8 A maximum per module

Features: .
●Safety Applications: Designed for use in critical safety systems across
industries such as oil and gas, chemical, and power .
●High Reliability: Built to operate in harsh industrial environments
with high resistance to vibration and wide temperature ranges.
●Output Control: Provides reliable high or low state digital outputs for
precise control and signaling.
●Isolation: High isolation voltage and resistance for enhanced safety
and protection in demanding applications.
●Power Efficiency: Low power consumption and optimized for energy-
efficient operations.
