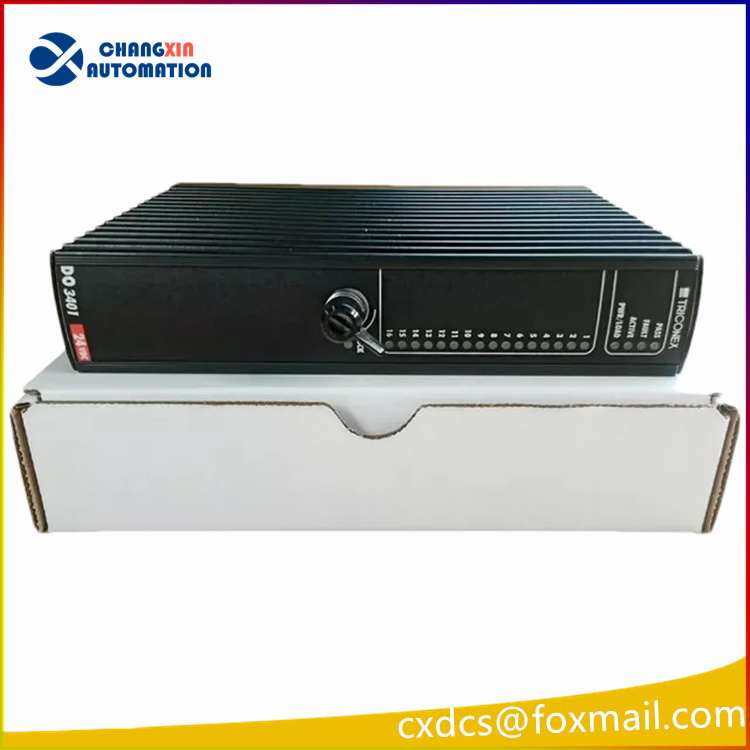

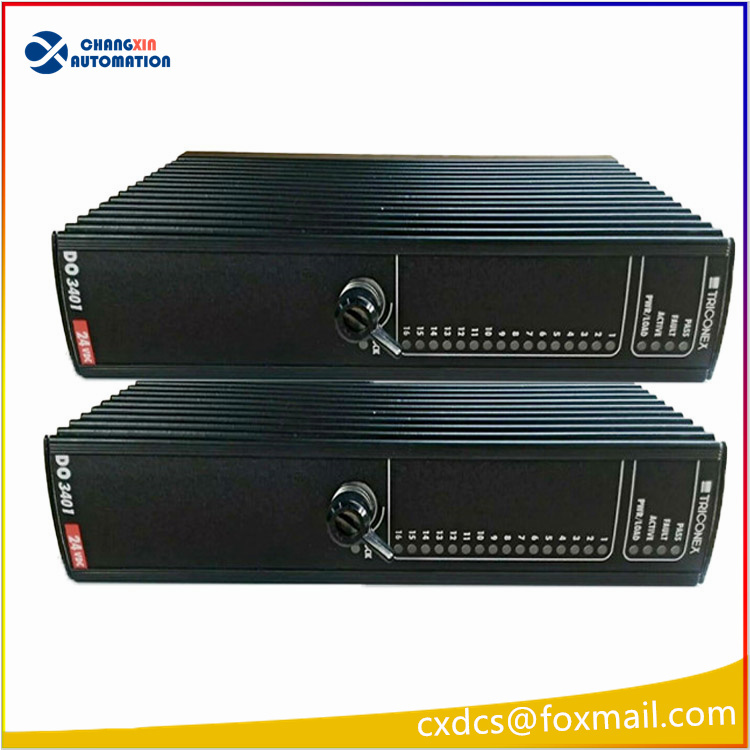

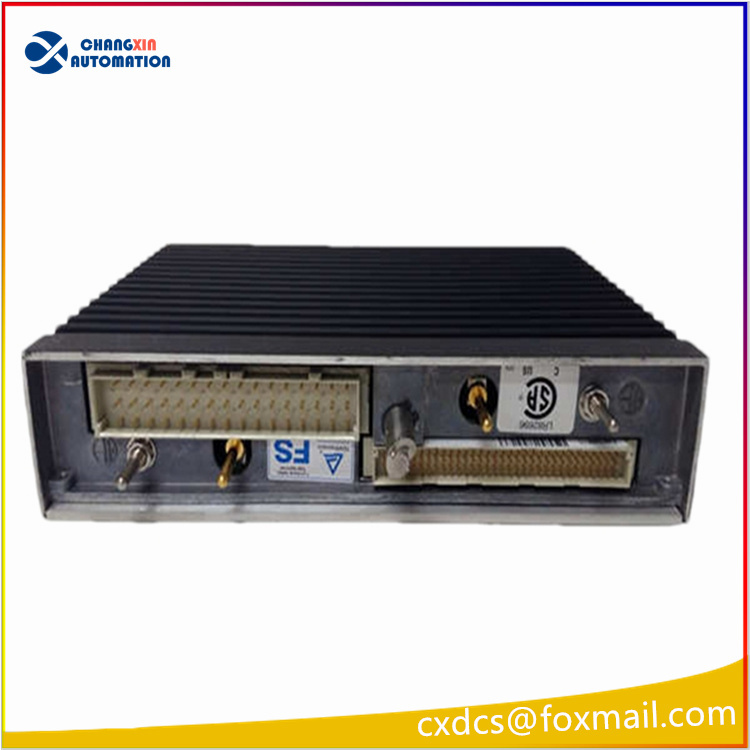

TRICONEX DO 3401S2 TMR Communication Interface Module

product description：

The TRICONEX DO 3401S2 is not a standard publicly available model. It is presumed to be a derivative version of the TMR communication interface based on the TRICONEX DO3401 digital output module. The following are the possible functions and technical parameters it may possess, based on the characteristics of the DO3401 module:
I. Core Function Speculation
Triple Module Redundancy (TMR) Communication Interface
It may integrate the TMR architecture, ensuring the reliability and security of data transmission through three redundant communication channels (such as RS-485, Ethernet).
Supports TMR bus communication with Triconex controllers and is compatible with SIL 3 safety standards.
Integration of Digital Output and Communication
Combined with the digital output function, it may remotely monitor the output status (such as the on/off status of relays, solenoid valves).
Supports real-time data feedback, facilitating integration with upper computers or HMI systems.
High Reliability Design
Possibly features channel-level isolation, short-circuit protection, overcurrent protection, etc., suitable for harsh industrial environments.
Supports hot swapping for convenient online maintenance.

Advantages and Value
High Reliability: The TMR architecture and redundant communication interfaces ensure that the system can still operate normally even in the event of a single point failure.
Easy Integration: Supports standard communication protocols, facilitating seamless integration with existing systems.
Security: Compliant with SIL 3 standards, suitable for high-risk industries.

Application scenario speculation
Safety Instrumented System (SIS)
Used for emergency shutdown (ESD), fire and gas system (F&G), etc., it remotely triggers safety interlocks through communication interfaces.
Process control
Integrated into the DCS system, it monitors the status of valves, pumps, etc. through communication interfaces.
Remote monitoring and diagnosis
Supports uploading output status to the cloud or SCADA system via Ethernet for remote diagnosis.
