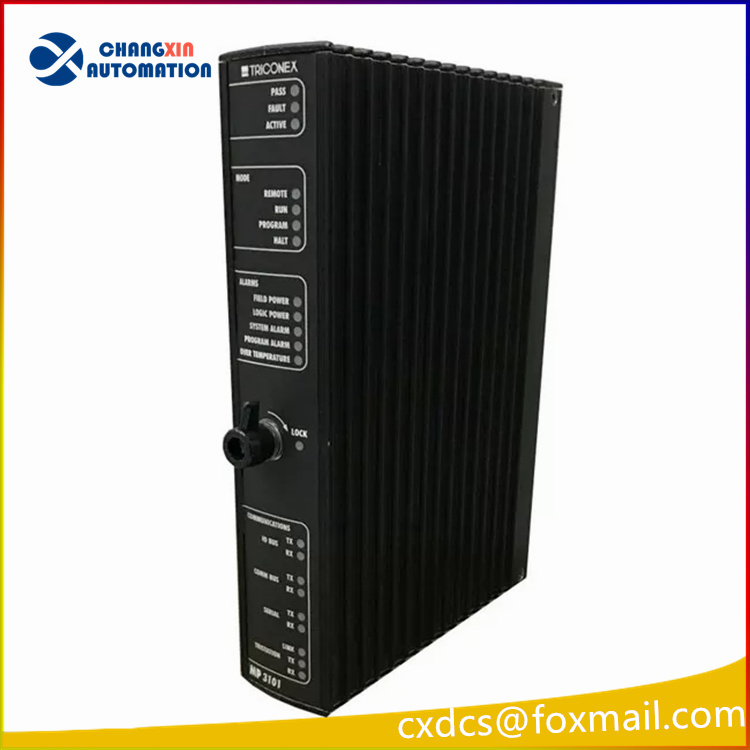

Triconex MP 3101 PROCESSOR MODULE

product description：

1. Overview of the TRICONEX 3101 series digital output modules
TRICONEX is a well-known brand specializing in safety instrumentation systems (SIS) and industrial automation solutions, and its 3101 series of digital output modules are commonly used for signal output in industrial control systems, such as driving solenoid valves, relays, indicators and other devices.

2. Core features (based on 3101 series)
Digital output channels: Multiple digital output channels (such as 8 or 16 channels) are usually provided, supporting dry contact or source/drain output.
Output voltage range: Support common industrial voltage classes such as 24VDC, 48VDC or 120VAC.
Load capacity: Single channel output current capacity may range from 0.5A to 2A, depending on module model.
Redundancy design: Some high-end models may support TMR (Triple redundancy) or dual redundancy to improve system reliability.
Communication interface: The controller is usually communicated via a TRICONEX dedicated bus (such as TriBus), and some models may support Modbus, TCP/IP, and other protocols.
Diagnostic function: Provides output status diagnosis, short circuit/open circuit detection, overload protection and other functions.
Environmental adaptability: The operating temperature range is usually -40°C to +70°C, and the protection level meets industry standards (such as IP20 or higher).

3. Possible characteristics of 3101 (speculation)
If “S2” is a specific model identifier, it may indicate the following characteristics:

Output type: S2 may represent a specific output configuration, such as Dual Redundant output or a specific voltage level (such as 48VDC).
Number of channels: Possible 16 outputs (compared to 8 on the base model).
Special features: such as enhanced diagnostics, faster response times or compatibility with specific protocols.

4. Application Scenarios
Petrochemical: For valve control in emergency shutdown systems (ESD).
Electricity: Drives circuit breakers or relays.
Rail transit: signal light, switch control.
Manufacturing: Actuator control in automated production lines.
