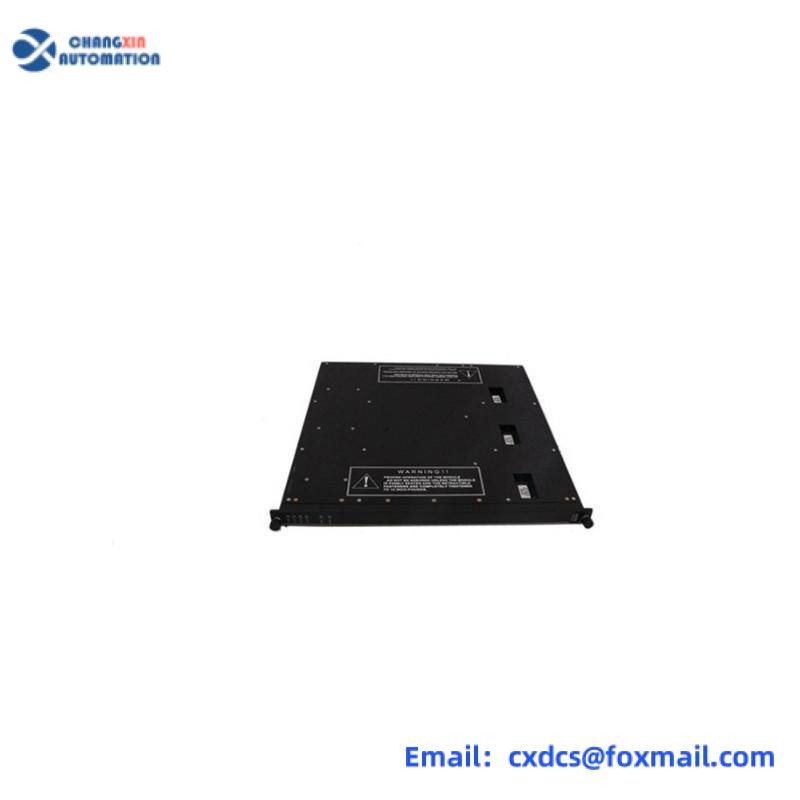

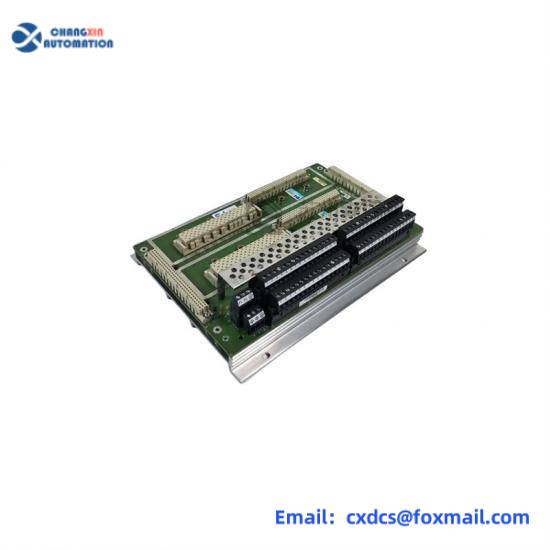

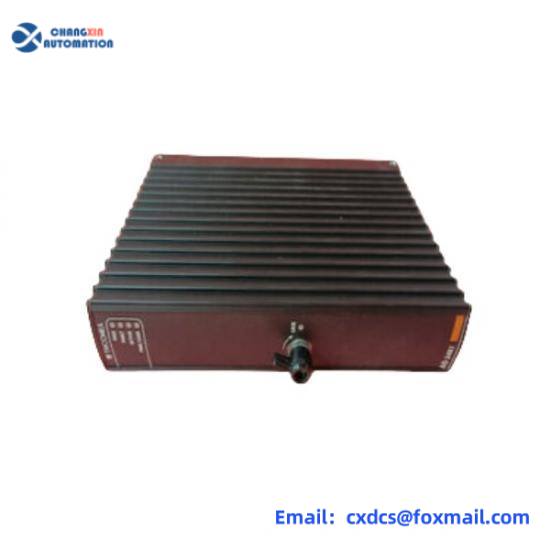

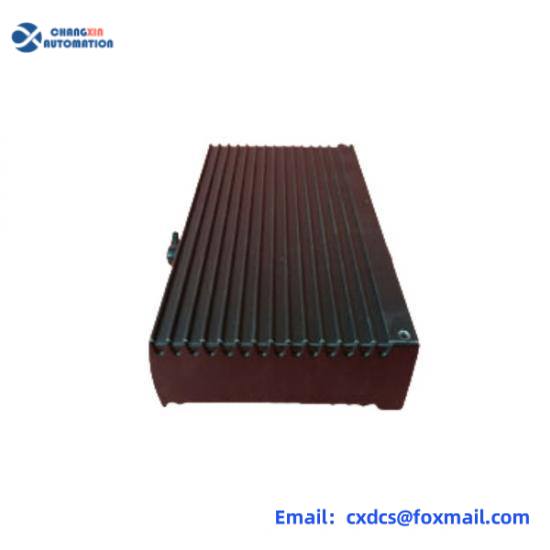

TRICONEX PM6301A Industrial Control Module for Process Automation & Safety Systems
The TRICONEX PM6301A is a high-integrity industrial control module engineered for mission-critical applications in process automation and safety instrumented systems (SIS). Featuring triple modular redundancy (TMR) architecture, this SIL 3-certified module ensures uninterrupted operation in demanding environments like oil & gas, chemical processing, and power generation.
Key Features
- TMR Architecture: Eliminates single-point failures through triple redundant processing cores
- Field-Configurable: Supports custom I/O mapping and protocol adaptation for legacy systems
- DIN Rail Mounting: 19″ rackmount design with tool-less installation capability
- Real-Time Diagnostics: Built-in self-test circuitry with fault-tolerant memory
- Extreme Environment Resilience: -40°C to +85°C operating temperature range
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | TRICONEX PM6301A |
| Power Requirements | 24V DC (Redundant Power Supply) |
| Dimensions | 215 x 133 x 55 mm (8.5″ x 5.2″ x 2.2″) |
| Weight | 1.8 kg (4.0 lbs) |
| Operating Temp | -40°C to +85°C (-40°F to +185°F) |
| Certifications | IEC 61508 SIL 3, FM, CSA, ATEX |
Application Fields
Engineered for high-integrity control applications including:
- Emergency Shutdown Systems (ESD)
- Fire & Gas Detection Systems
- Process Safety Systems (PSS)
- Rotating Equipment Protection
- High-Integrity Pressure Protection Systems (HIPPS)
