Description:
Ultra-high-speed optical fiber network
The baud rate of optical fiber networks can reach 2.12Gbaud (or 2.125G, with slight variations among different sources), providing high-speed and real-time data transmission capabilities.
The transmission rate can reach 43 Mbyte/s (4-byte data packets) to 170 Mbyte/s (64-byte data packets), and in some cases, it can even reach 174 MB/s.
Dynamic data packet size
Support dynamic adjustment of data packet size, ranging from 4 to 64 bytes, to meet different data transmission requirements.
Large-capacity on-board memory
The on-board SRAM capacity is selectable, including 64 Mbyte, 128 Mbyte or 256 Mbyte, to meet the data storage requirements in different application scenarios.
Extensive node support:
Supports data sharing among up to 256 independent systems (nodes) and is suitable for large-scale distributed networks.
Long-distance transmission capacity
The connection with multimode optical fibers can reach up to 300 meters at most, and with single-mode optical fibers can reach up to 10 kilometers at most, meeting the requirements of long-distance data transmission.
Low latency and high efficiency
The data transmission process between nodes does not require the participation of the CPU, achieving low latency (such as hundreds of nanosecond latency) and efficient data transmission.
Redundancy and Reliability
Optional redundant transmission mode is available to enhance the reliability and fault tolerance of data transmission.
Operating system independence from the bus:
It is independent of the operating system, processor and bus mode, and is easy to integrate into various existing computing environments.
Flexible topological structure
Supports ring and star topologies, and the appropriate network structure can be selected according to actual needs.
Rich interfaces and compatibility:
It provides a VMEbus interface and is compatible with PCI buses (such as 33MHz/66MHz 64-bit/32-bit, supporting 3.3V and 5.0V levels).
Product details Parameters:

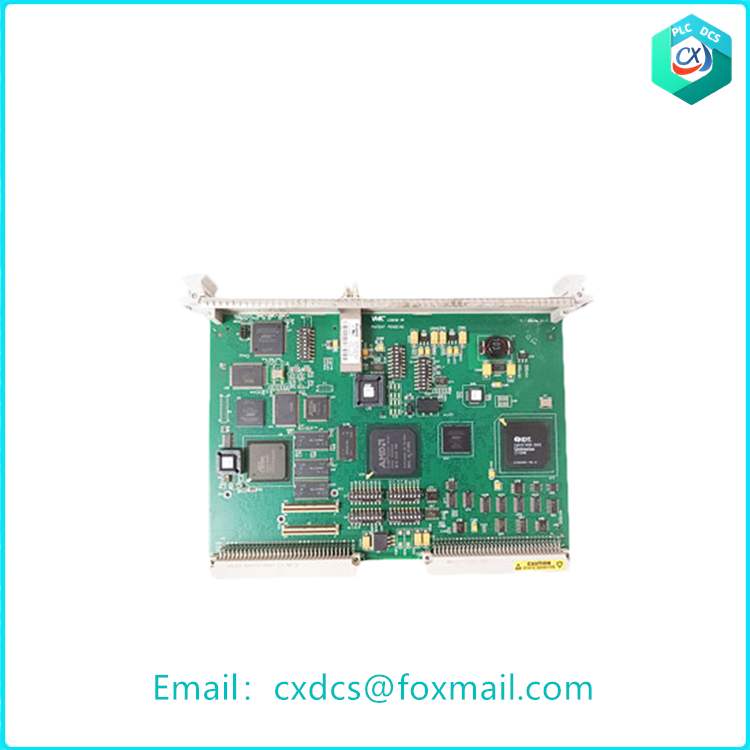

Model: VMIVME-5565-110000
Manufacturer: VMIC
Type: Reflective Memory node card
Features: Ultra-high-speed shared memory based on halo, supporting distributed networks to share real-time data at a determined rate
Application field:
The VMIVME-5565-110000 VMIC reflective memory node card is particularly suitable for application scenarios that require high-speed and real-time data sharing, such as:
Industrial automation control system
Distributed data acquisition and processing system
Real-time simulation systems (such as flight simulation systems)
High-performance computing
