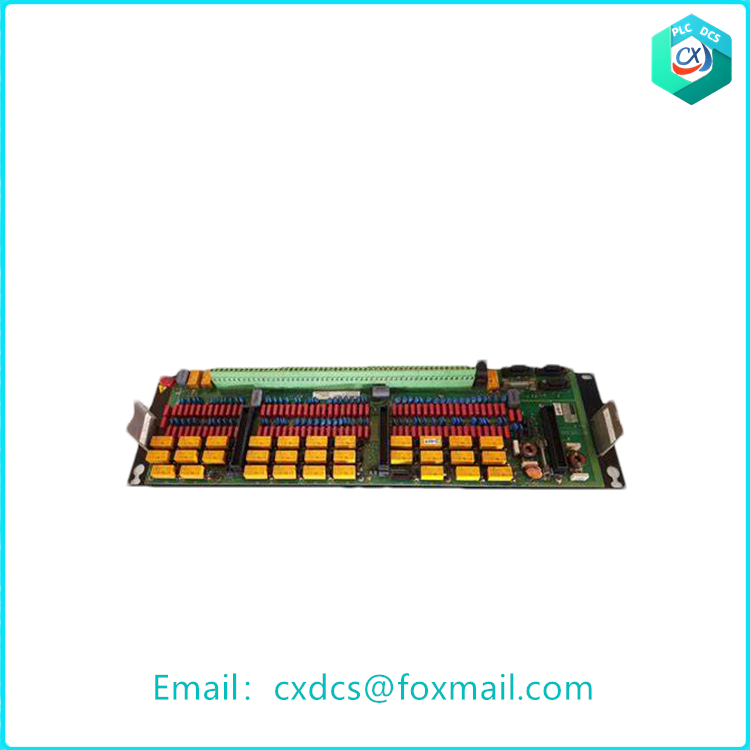

WESTERM D20 S GE DCS control module

Description:

The WESTERM D20 S is a key component in the GE DCS control module and is mainly used for field wiring terminals and signal processing. The following is a detailed analysis of this module:

I. Module Composition and Functions
Module composition: WESTERM D20 S is part of the D20 state module and is usually used in conjunction with the WESDAC D20 S module. The WESTERM D20 S, as the bottom module, undertakes the terminal functions of all on-site wiring. The WESDAC D20 S is responsible for processing the collected data and transmitting it to the main D20 processor.
Functional characteristics:
Input processing: Supports up to 64 digital inputs, which can be installed on a compressed terminal. By using a voltage drop resistor, the input within the range of 12 VDC to 130 VDC can be processed.
Protection function: Equipped with capacitors and rheostats to provide surge withstand capability (SWC) and pulse protection, ensuring the safety of all on-site inputs.
Electrical isolation: The input is divided into 8 groups, with 8 status inputs in each group. Each group has its own common circuit and is electrically isolated from other groups, which enhances the reliability and safety of the system.
Maintenance port: The WESMAINT D20 maintenance port is provided, allowing communication with the VT 100 terminal or simulator through the DB 9 connector, facilitating the maintenance and diagnosis of the module.

Application scenarios
Industrial Automation: In the manufacturing industry, WESTERM D20 S can be used to control the equipment, machinery and processes on the production line to achieve automated production.
Process Control: In fields such as chemical engineering, petroleum, and food processing, this module can be used to monitor and control complex production processes, ensuring the stability and safety of the production process.
Energy Management: In the energy management system, WESTERM D20 S can be used to monitor and control energy distribution and usage, and improve energy utilization efficiency.
