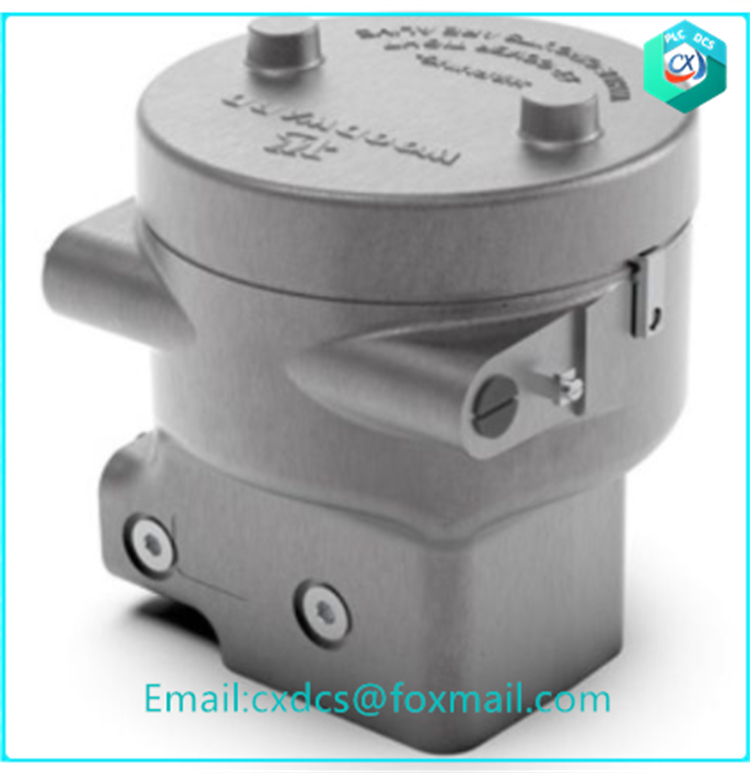

The Woodward 9907-1228 Current to Pressure Converter (CPC-II) is a device used in industrial control systems to convert an electrical current signal (typically 4-20 mA) into a proportional pneumatic output pressure (3-15 psi or 20-100 kPa). This type of device is commonly used in process control applications to interface between electronic control systems and pneumatic actuators or valves.
Installation and Calibration:
Mounting: Ensure the CPC-II is securely mounted in a location free from excessive vibration and temperature extremes.
Electrical Connection: Connect the 4-20 mA input signal to the appropriate terminals.
Pneumatic Connection: Connect the output pressure line to the actuator or valve.
Calibration: Use the zero and span adjustments to calibrate the device so that 4 mA corresponds to the minimum output pressureand 20 mA corresponds to the maximum output pressure.
Key Features and Capabilities
1.Digital Load Sharing:
The 2301D control system excels in load sharing applications, allowing multiple engines or turbines to operate in parallel while maintaining balanced load distribution. This feature is critical in applications where power generation or propulsion systems require multiple units to work together seamlessly. The system ensures that each unit contributes equally to the load, preventing overloading of any single unit and enhancing overall system reliability.
2.Precise Speed Control:
The 2301D provides highly accurate speed control, ensuring that engines or turbines operate at the desired setpoints under varying load conditions. This precision is achieved through advanced control algorithms that continuously monitor and adjust the speed of the prime mover, maintaining stability and responsiveness even during rapid load changes.
Application fields
Industrial Automation: Applicable to various industrial automation systems, such as production line control, machine tool control, etc.
Energy Management: Can be used for the control of energy management systems to achieve optimized allocation and utilization of energy.
Process Control: In industries like chemicals, petroleum, and natural gas, used to control the operation of various equipment and systems.
WOODWARD 9907-252 CONTROL GOVERNOR MODULE
WOODWARD 9907-018 SERIES 2301A LOAD SHARING AND SPEED CONTROL
WOODWARD 505D 8200-1302 TURBINE CONTROL 18-36VDC

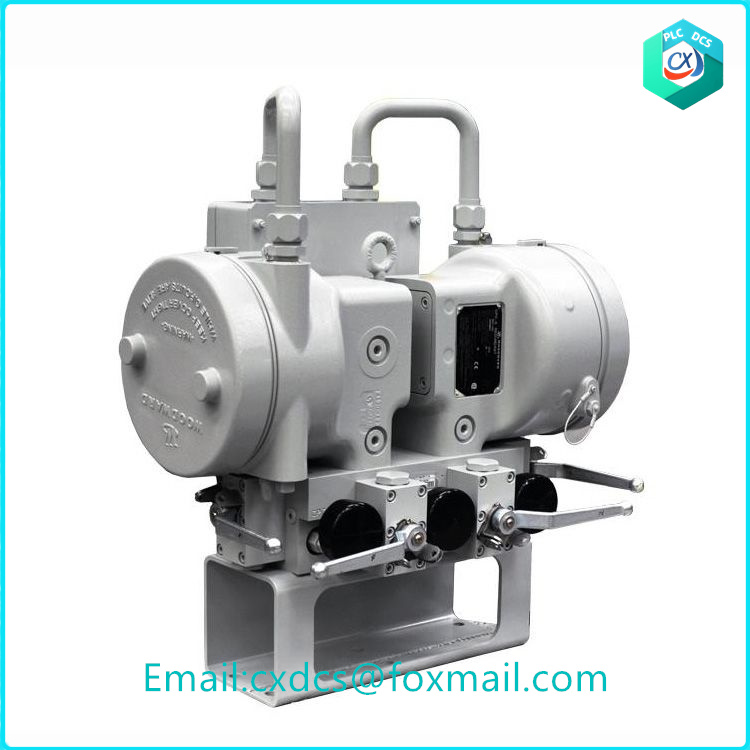

WOODWARD 9907-1200 CPC-II CURRENT TO PRESSURE CONVERTER
WOODWARD 9907-164 505E SPEED CONTROL
WOODWARD 8237-1246 PROTECH-GII | safety device overspeed protection
