Woodward 9907-252 Module control governor

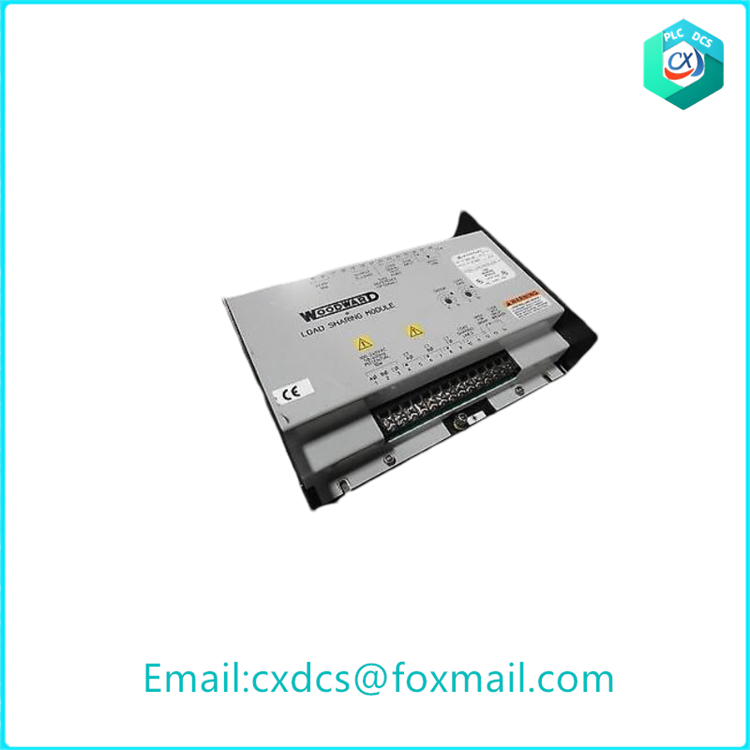

Woodward Load Sharing Module Part 9907-252. This part features +0.5 to +4.5 VDC analog output type and 24 VDC supply voltage. Allows load sharing with Woodward and non-Woodward equipped engines and provides isochronous and droop load sharing.
Introduction to the Woodward Speed Controller 2301E Series
The control functions based on the Woodward 2301E microprocessor are similar to those of the 2301A load sharing and speed control as well as the 2301D load sharing and speed control.
This control device is installed in a metal plate chassis and is used in both ordinary and hazardous locations, and consists of a single printed circuit board.
The 2301E is configured using a computer with Control Assistant software or the Woodward ToolKit service tool.
The controller is powered by a 24 Vdc power supply.
2301E includes:
1 load sensor circuit
1 actuator driver, 4-20 mA, 0-20 mA, 0-200 mA or PWM
1 MPU speed sensor
1 configurable analog output
2 configurable analog inputs
8 discrete (switch) inputs
4 discrete (relay driver) outputs
OTHER COMMON MODELS OF WOODWARD SPEED CONTROLLERS:
WOODWARD 9900-430
WOODWARD 9900-432
WOODWARD 9900-433
WOODWARD 9905-017
WOODWARD 9905-025
WOODWARD 9905-030
WOODWARD 9905-031
WOODWARD 9905-132
WOODWARD 9905-144
WOODWARD 9905-145
WOODWARD 9905-148
WOODWARD 9905-181
