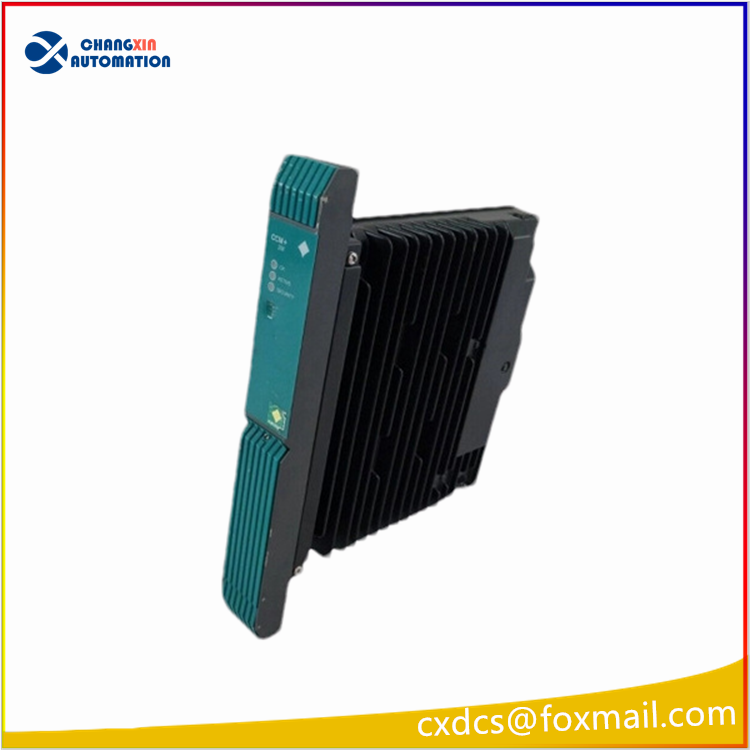

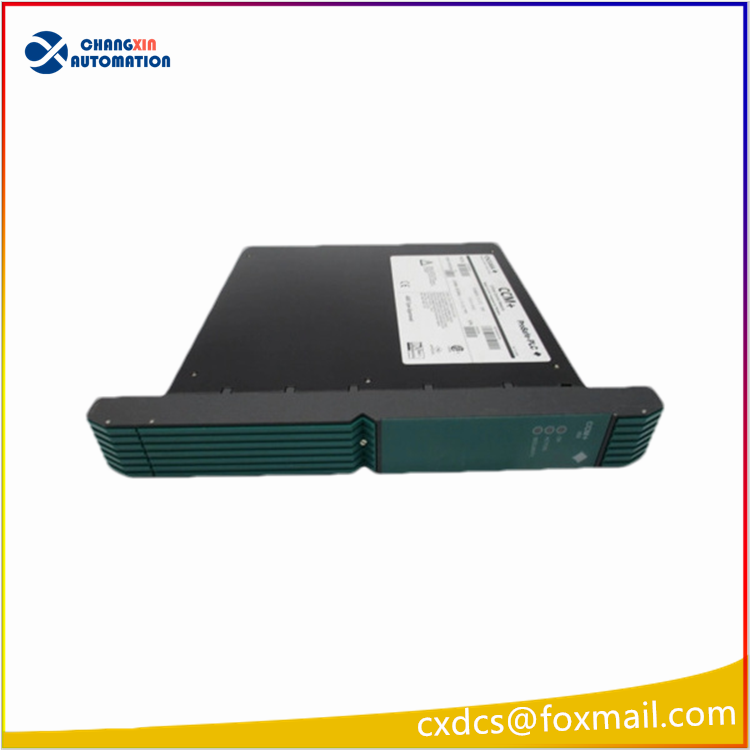

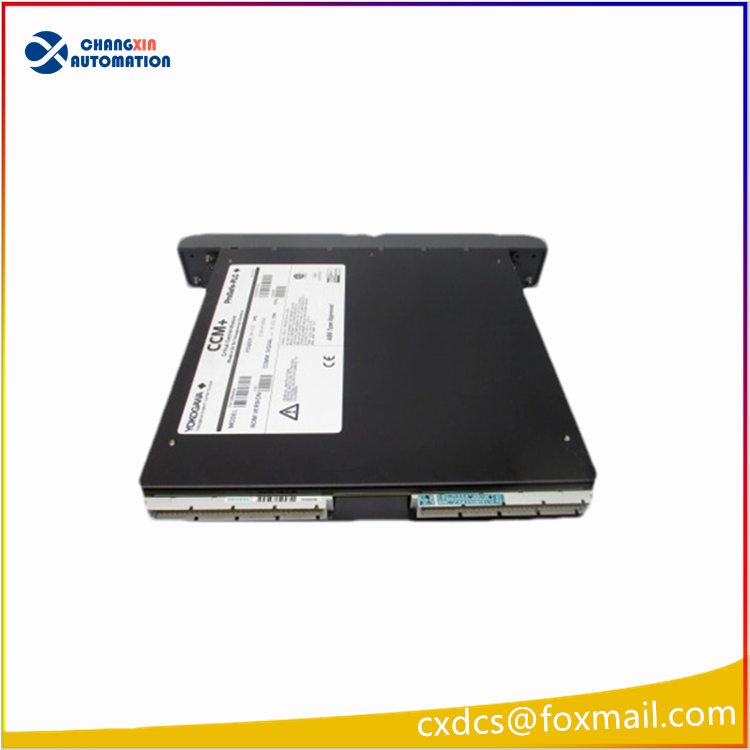

YOKOGAWA PSCAMAAN 16404-500/3 Critical Analog Module CAM ProSafe-PLC

The Yokogawa PSCAMAAN 16404-500/3 is a Critical Analog Module (CAM) designed for ProSafe-PLC, Yokogawa’s safety PLC system. This module is used in high-integrity safety applications, such as process shutdown systems (ESD, F&G, BMS).

Key Features & Specifications:

1. Function:
   • Analog Input/Output Module for safety-critical control systems.
   • Monitors analog signals (e.g., 4-20mA, 0-10V) from sensors (pressure, temperature, flow).
   • Used in SIL2/SIL3 (IEC 61508) safety applications.
2. I/O Type:
   • Analog Input (AI) or Analog Output (AO).
   • Supports HART communication.
3. Redundancy & Diagnostics:
   • Fault-tolerant design with self-diagnostics.
   • Supports redundant configurations for high availability.
4. Isolation & Noise Immunity:
   • Channel-to-channel isolation to prevent cross-talk.
   • High noise immunity for industrial environments.
5. LED Indicators:
   • Module status (OK, Fault, Active).
   • Per-channel status for troubleshooting.
6. Compatibility:
   • Part of ProSafe-PLC safety system.
   • Works with Yokogawa ProSafe-RS and CENTUM VP.

7. Applications:

   • Emergency Shutdown Systems (ESD)
   • Fire & Gas Detection (F&G)
   • Burner Management Systems (BMS)
   • Process Safety Systems (SIL2/SIL3 certified)
   •
