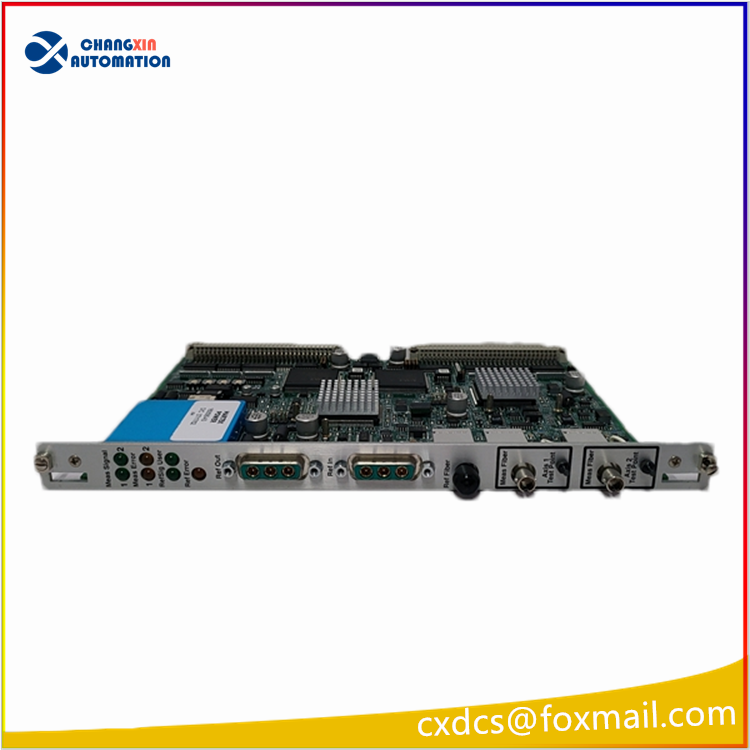

Zygo ZMI-2001 Laser system control board ZMI2001 8020-0210-01-J

.Many products are not yet on the shelves please contact us for more products

.If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation

.We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

Zygo ZMI-2001 Laser system control board ZMI2001 8020-0210-01-J、8020-1210-01 .The ZMI 2000 VME Measurement Boards are single or dual axis boards requiring fewer backplane slots. The Zygo ZMI-2001 is a single-axis 6U VME measurement board that is used in displacement measuring interferometers. Displacement measuring interferometers are used to measure small changes in the position of an object, and are commonly used in precision manufacturing and metrology applications. The ZMI-2001 is part of the ZMI series of measurement electronics, which calculate displacement using optical signals from the interferometers driven by a ZMI laser source

Features:

Multiple-Axis Boards Require Fewer Backplane Slots

Simplified P2 Interfacing

Single or Multiple Boards Can Be Easily Bussed

The ZMI 2000 VME Measurement Boards are single or dual axis boards requiring fewer backplane slots. Simplified P2 interfacing means single or multiple boards can be easily bussed to a single servo card or motor controller.

With the ZMI 2000 Measurement Boards:

The ZMI 2002 offers two axes of interferometry on a single 6U VME board.

The measurement boards are fully programmable through the interface bus (VME or ISA), or the P2 interface. Reduced cost of integration

Standard hardware interfaces for up to 7.7 MHz P2 data rates for up to 16 axes. Easily expanded to accommodate more axes at the same rates.
