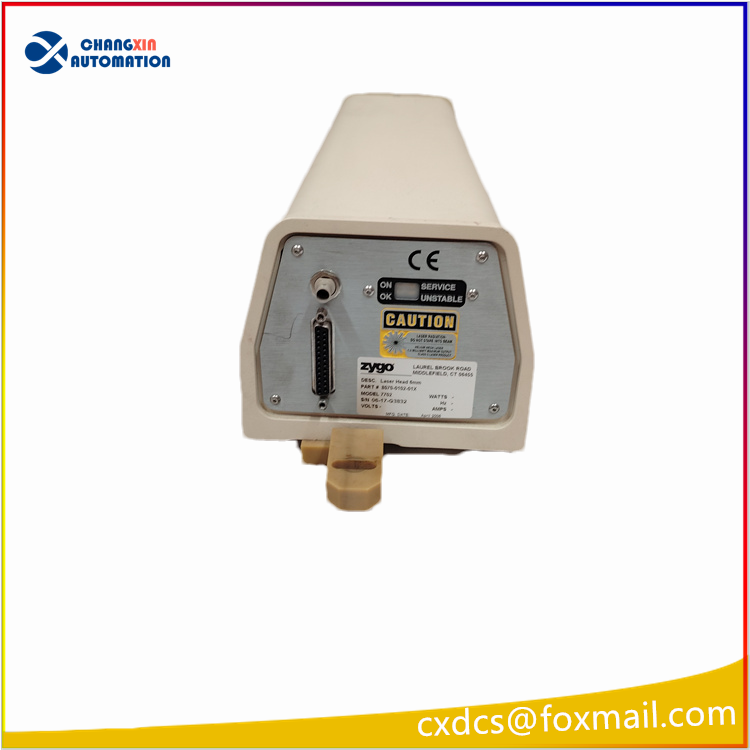

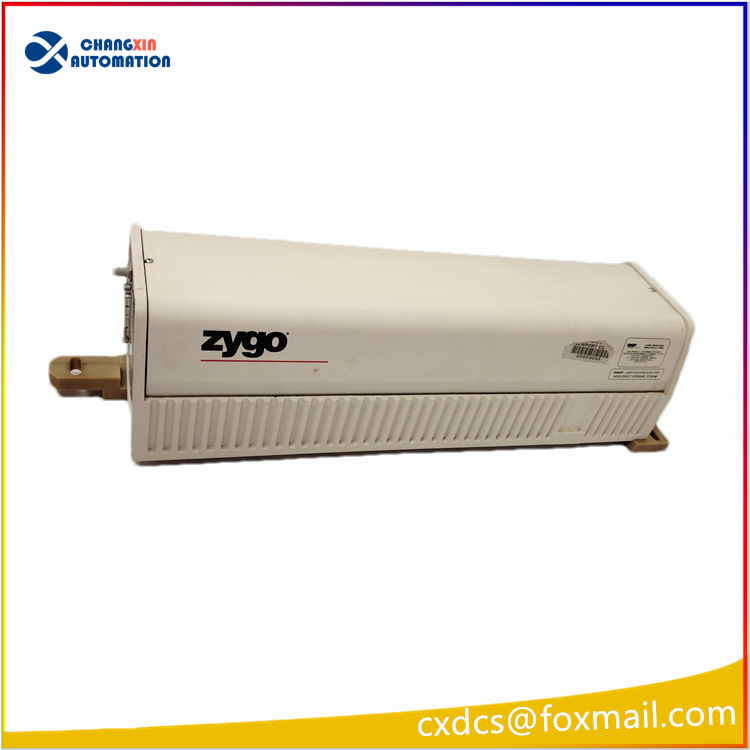

The ZYGO ZMI-7705 laser head is a high-stability dual-frequency laser device based on helium-neon technology. It is specifically designed for high-precision position measurement and possesses the following core features and application values:
I. Technical Characteristics
Dual-frequency Output Stability
The ZMI-7705 provides highly stable dual-frequency laser output with precisely controllable frequency difference. It offers a reliable reference signal for interferometric measurement systems, ensuring the repeatability and accuracy of nanometer-level displacement measurement.
Helium-Neon Laser Technology
Using a helium-neon gas laser, it features high coherence, low noise, and long lifespan, making it suitable for industrial and research applications that require long-term stable operation.
Compact Design
When used in conjunction with the ZMI-501A measurement enclosure, it can integrate up to two measurement axes within a single package, saving space and simplifying system integration. Compatibility
Supports linkage with ZMI-240X and 4X04 series measurement boards to achieve multi-axis synchronous measurement, meeting the requirements of complex motion control.
Features:
Multiple-Axis Boards Require Fewer Backplane Slots
Simplified P2 Interfacing
Single or Multiple Boards Can Be Easily Bussed
The ZMI 2000 VME Measurement Boards are single or dual axis boards requiring fewer backplane slots. Simplified P2 interfacing means single or multiple boards can be easily bussed to a single servo card or motor controller.
With the ZMI 2000 Measurement Boards:
The ZMI 2002 offers two axes of interferometry on a single 6U VME board.
The measurement boards are fully programmable through the interface bus (VME or ISA), or the P2 interface. Reduced cost of integration
Standard hardware interfaces for up to 7.7 MHz P2 data rates for up to 16 axes. Easily expanded to accommodate more axes at the same rates.
