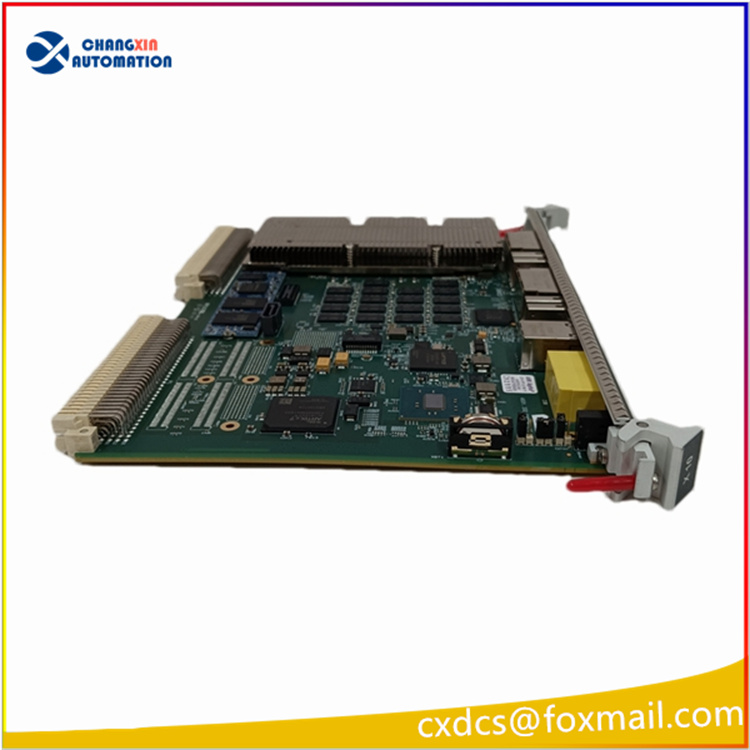

Abaco X10 605-A53842-002A LBS-UP2 Embedded Single Board Computer

Product Description

Model: X10, Part Number: 605-A53842-002A, Marking LBS-UP2, Brand: Abaco Systems. It is a 3U OpenVPX rugged embedded Single Board Computer (SBC) with conduction cooling design for real-time computing under harsh environments. Equipped with multi-core processor, industrial memory and solid-state storage, integrated multi-channel Gigabit Ethernet, USB, serial ports and high-speed PCIe interface. Compliant with MIL‑STD‑810G for shock & vibration and MIL‑STD‑461G EMC military standards, compatible with multiple real-time operating systems. The module supports hot-swap via VPX backplane, with hardware watchdog and built-in self-test, deployed for data acquisition, real-time computation and control management on airborne, shipboard, vehicle and field industrial equipment.

Technical Specifications

• Model: X10
• Part Number: 605-A53842-002A
• Marking: LBS-UP2
• Brand: Abaco Systems
• Type: 3U OpenVPX Rugged Embedded Single Board Computer (SBC)
• Processor: Multi-core Intel processor
• Memory: Up to 8GB DDR3
• Storage: Industrial SSD, SATA3 expandable
• Interfaces: 2×Gigabit Ethernet, 4×USB3.0, 2×RS232/485 serial ports, PCIe x4
• Power Input: 9~36V DC wide range DC input
• Cooling: Conduction cooling, convection cooling optional
• Operating Temperature: Conduction cooled -40℃ ~ +85℃; air-cooled -40℃ ~ +70℃
• Environmental Compliance: MIL‑STD‑810G (vibration, shock, temperature cycle); MIL‑STD‑461G EMC
• Form Factor: 3U OpenVPX, slot rack mounting
• Dimension: 170 × 120 × 40 mm
• Weight: Approx.1.5kg
• Features: Soldered memory for anti-vibration, hardware watchdog, BIST built-in self-test, RTOS support, VPX hot swap

Application

Applied for high-reliability embedded real-time measurement-control and edge computing:

1. Airborne, shipboard and vehicle-mounted embedded control & navigation systems
2. Military measurement, signal acquisition and tactical communication processing units
3. Remote monitoring and data processing for oil & gas, wind power field equipment
4. High-end edge computing nodes for large industrial DCS/PLC systems
5. Automatic test equipment, simulation systems, radar signal pre-processing Function: Complete multi-channel sensor data collection, real-time calculation and protocol conversion, output control commands. Operate continuously and stably under heavy vibration, wide temperature and strong electromagnetic interference to guarantee reliable operation of mission-critical systems.
