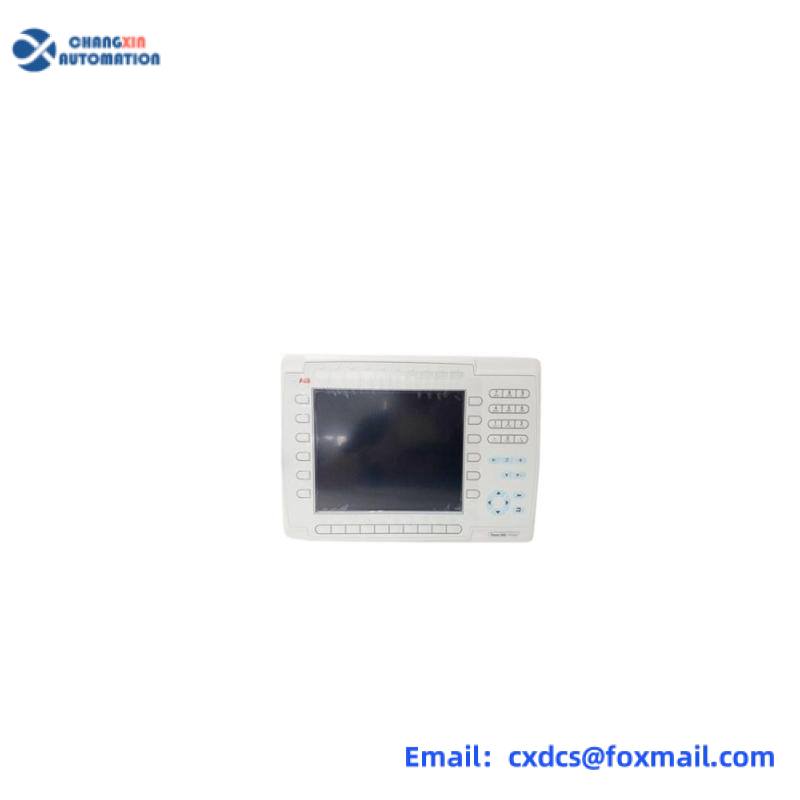

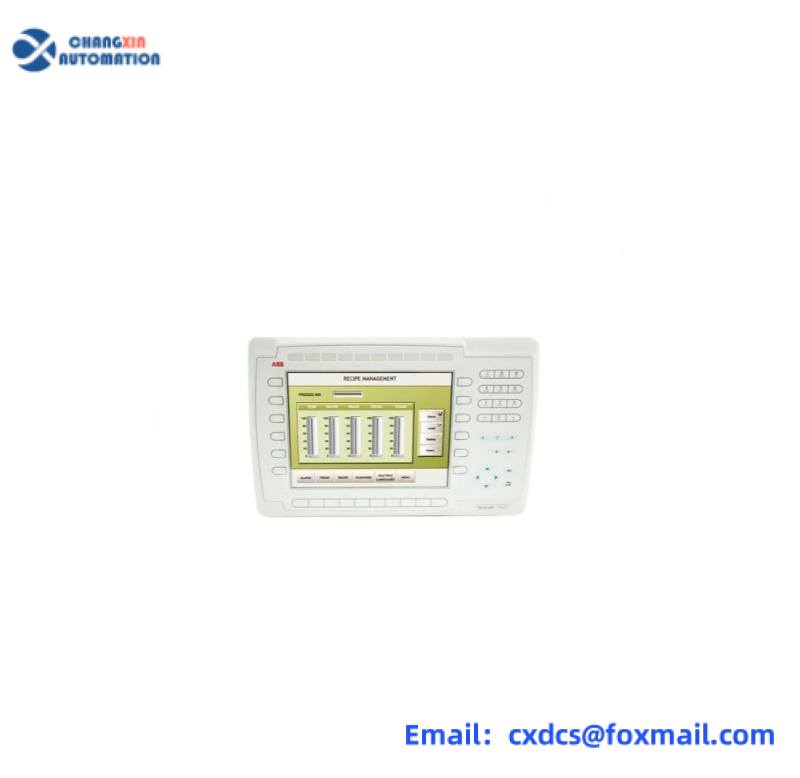

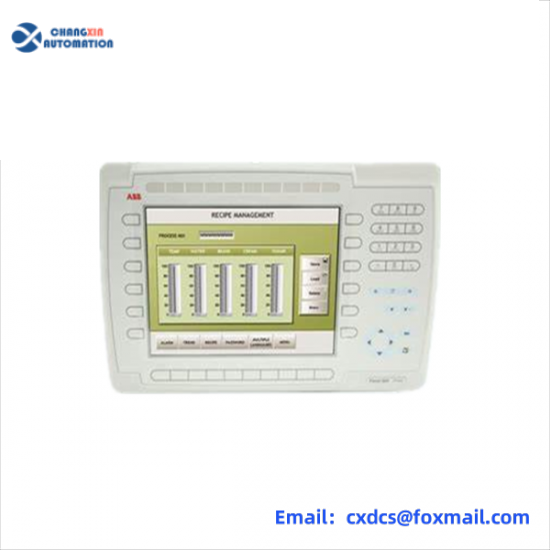

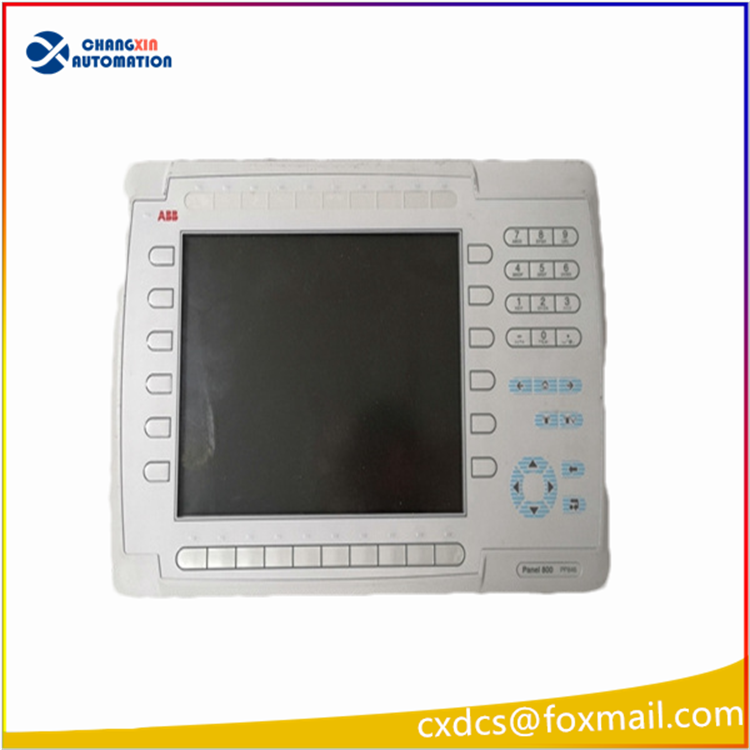

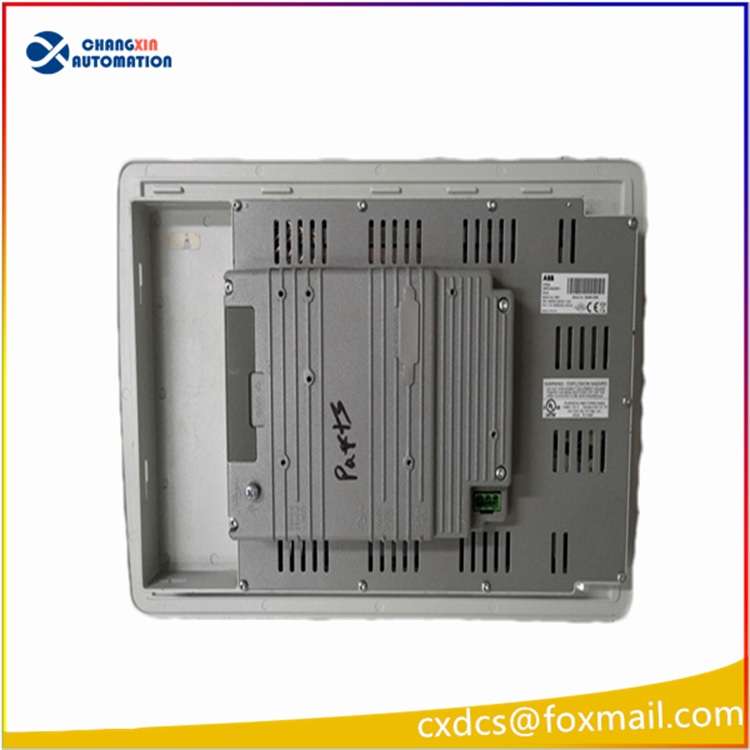

ABB PP846 3BSE042238R1 High-Performance Industrial Control Module

ABB PP846 3BSE042238R1 is a touchscreen card module, mainly used for integration with ABB’s control system or other devices, providing a touchscreen control interface to facilitate operation and monitoring of the automation system. Here is a detailed introduction about this module:
I. Main Functions
Touchscreen Control: This module is equipped with a touchscreen, allowing users to interact through it, perform control, monitoring, and other operations.
Communication Capability: The touchscreen card module usually has the ability to communicate with other systems and devices to achieve data exchange and collaborative work. It supports various communication protocols, such as PROFINET, Modbus TCP, OPC UA, etc., and can securely communicate with MES, SCADA, and HMI systems to achieve IT/OT integration.
Programmability: The module may have a certain degree of programmability to adapt to different application requirements and be able to customize the interface and functions.

Technical features
Display:
Size: 7 inches
Type: TFT/LED
Brightness: 350 candelas/square meter
Display resolution: 800 x 480 (16:9)
Processor and memory:
Processor: ARM9 (1 GHz)
Main memory: 512MB
External storage medium: 2 GB (SSD), of which 1.5 GB is available for application storage
Physical characteristics:
Size (W x H x D): 204 x 143 x 50 millimeters
Net weight: 0.8 kilograms
Power supply and working environment:
Power supply: +24 volt direct current (18 to 32 volt direct current)
Operating temperature: -10 °C to +60 °C
Maximum humidity: 85%
Other features:
Touchscreen panel with vivid TFT/LED display colors and multi-protocol connections.
Equipped with high-resolution vector-based graphics, featuring icon-based interfaces, navigation, and control.
Uses a sturdy and lightweight die-cast powder-coated aluminum casing, with the front cover capable of withstanding moisture, dust, and harsh environments.

Application scenario
The ABB PP825A 3BSE042240R3 touchscreen module is typically used in industrial control systems, such as in manufacturing, energy industries, and chemical sectors, providing an intuitive human-machine interface. It enables operators to quickly identify the causes of equipment failures, thereby enhancing the efficiency of the enterprise.
