Bachmann IPC1412 Embedded Industrial All-in-One Computer

I. Basic Information
Brand: Bachmann (Austrian Bachmann)

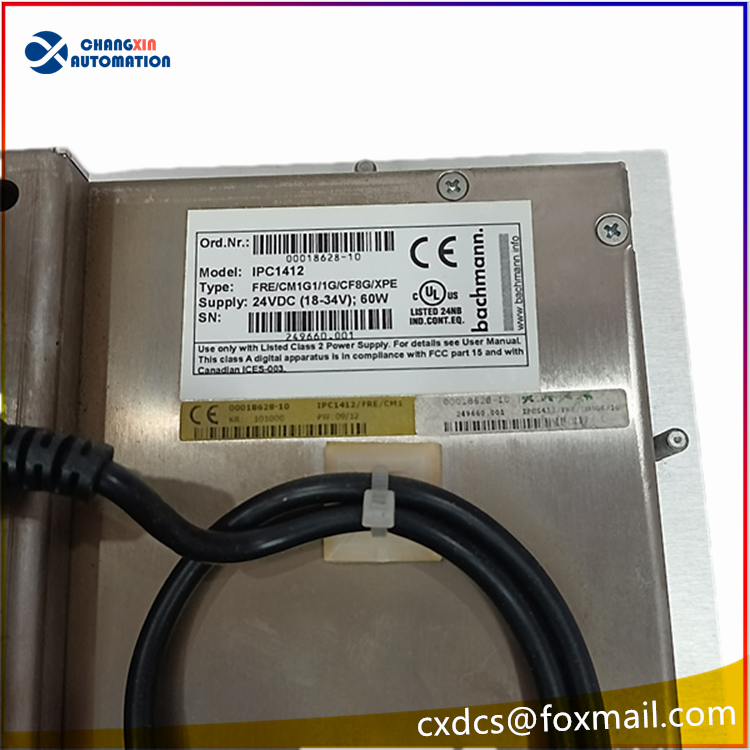

Model: IPC1412, Common Configuration Model: FRE-CM1G1-1G-CF8G-XPE
Product Type: 12-inch embedded industrial touch screen all-in-one machine (HMI + industrial control computer)
Installation Method: Embedded installation on control cabinet panel
Product Status: The original factory has discontinued production. It is mostly used for replacing old equipment parts in wind power, injection molding machines, and industrial machinery groups
Power Supply: DC24V (18～34VDC), The overall power consumption is approximately 60W

Hardware Core Configuration
Processor: Intel industrial-grade low-power Atom/Celeron embedded CPU, without fan cooling design, dust-resistant, shock-resistant, and anti-electromagnetic interference
Memory: Standard 1GB industrial wide-temperature memory
Storage: 8GB CF card (CompactFlash industrial flash memory card), replacing mechanical hard drives, resistant to vibration damage, suitable for vehicle-mounted, wind power, injection molding, etc. working conditions
Screen: 12-inch industrial LCD display, resistive touch; panel integrates membrane function keys + emergency stop knob, gear position switch, allowing on-site operation of equipment start/stop, parameter setting
Operating System: Pre-installed Windows XP Embedded (XPE) industrial embedded system, supporting running SCADA monitoring software, configuration programs, Bachmann real-time control programs

Standard Hardware Interfaces
Network Port: Multiple gigabit Ethernet, connecting to PLC, DCS, upper-level monitoring system
Serial Port: RS232/RS422/RS485, supporting Modbus, Profibus, etc. industrial bus communication
USB Interface: For program copying, peripheral access, firmware upgrade
VGA, PS2, CAN bus interface, compatible with Bachmann real-time control system networking

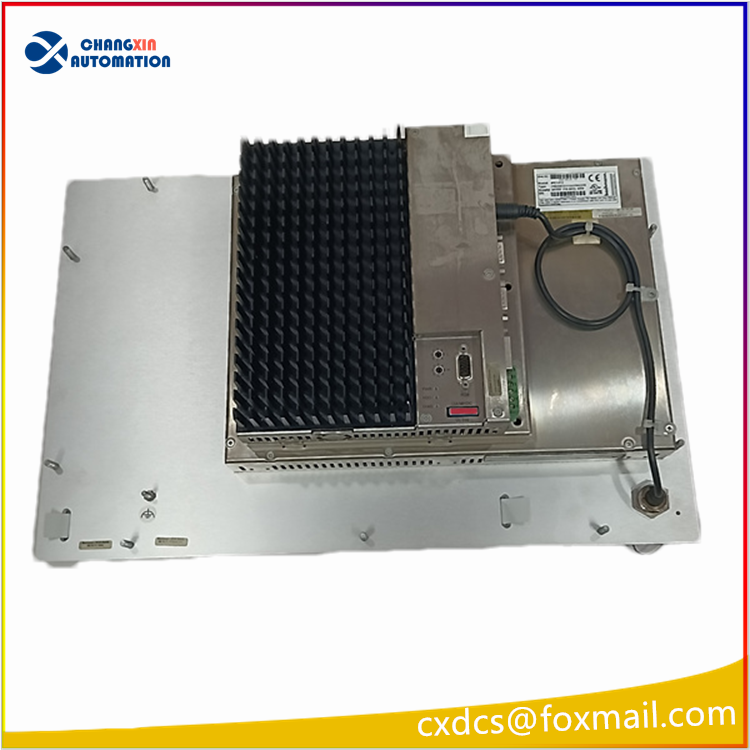

Backside aviation plug strong power supply terminals, industrial-grade waterproof and dustproof wiring design

Core Functions
On-site human-machine operation (HMI)
Real-time monitoring of equipment operating parameters, fault alarms, trend curve viewing; through panel buttons + touch control to complete equipment start/stop, parameter modification, mode switching, fault reset; integrated safety emergency stop knob to ensure on-site operation safety.
Industrial data acquisition and gateway forwarding
As the central control data upper computer, collect data from Bachmann PLC, various on-site instruments, frequency converters, etc., perform protocol conversion, data archiving, event recording, and upload to the factory SCADA system.
Real-time control operation of the unit
Can run embedded control programs, cooperate with Bachmann CPU module to achieve wind turbine pitch control, injection molding closed-loop control, large-scale unit status monitoring and protection logic operation.
Fault storage and traceability
Local CF card long-term stores fault logs, operation history data, facilitating equipment fault review and operation analysis.

Key Electrical Environmental Parameters Table
Parameters Technical Specifications
Power Supply DC24V (18～34VDC)
Overall Power Consumption 60W
Operating Temperature -20℃～+60℃
Humidity 5%～95% RH, no condensation
Shaking Resistance Grade Industrial vehicle-level shaking resistance, suitable for wind power, heavy machinery
Protection Grade IP65 for front panel, IP20 for back panel
Overall Size 480×310×120mm, net weight approximately 7kg

Typical Application Scenarios
Wind Turbine Generator Main Control System: On-site monitoring of wind turbines, pitch system operation, fault data recording (Bachmann HMI for classic wind power applications)
High-end Hydraulic Injection Molding and Casting Equipment: Process parameter monitoring for FRECH and other high-end hydraulic injection molding machines, closed-loop control for molding
Hydropower and Waste Heat Power Generation Units’ On-site Operation Stations, Excitation / Speed Regulation System Upstream Monitoring
Embedded Control and On-site Maintenance Operation Stations for Ships, Mines, and Heavy Machinery
Renovation of Old Industrial Control Systems, Replacement of Fault Integrated Machines, Program Migration and Upgrade
