I. Basic Model and Positioning
Brand Origin: Bachmann Electronic (Austrian Bachmann) Wind Power Specialized Controller
Product Series: MX200 Compact CPU Processor, compatible with M1 Backplane Rack
Standard Part Number
MX213: 00031491-00 Standard Version
MX213 CC: 00031494-00 Cold Climate Model
MX213/CF 2GB / 4GB: Version with Large Capacity CF Storage Card
Product Status: Mainstream wind turbine in-use units are in use, not completely discontinued; Wind power maintenance spare parts are in high circulation
Core Purpose: Main control for wind power generation units, PLC core for pitch system, also used in ships, metallurgy, small-scale units automation
Core Hardware Configuration (AMD LX 266MHz Single Core)
1. Computing and Storage
CPU: AMD LX 266MHz x86 Single-Core Real-time Processor
Running Memory: 256MB DRAM
Power-on Data Retention Memory: 512kB nvRAM (Fault data, parameters saved when power is off)
Built-in Program Flash Memory: 64MB File-Flash
Expansion Storage: Front PC-Card Slot, Side CF Card Slot (Optional 2GB/4GB)
Real-time Clock: Battery-backed RTC, supports SNTP/IEEE1588 Clock Synchronization

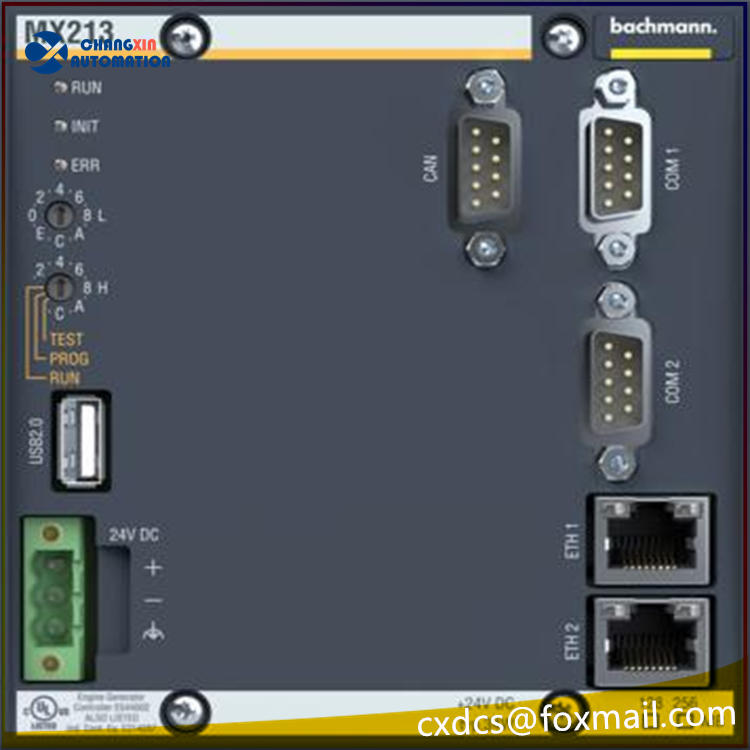

2. All Panel Interface (From Top to Bottom)
CAN (DB9): Isolated CAN/CANopen/J1939 Bus, Wind Turbine Pitch Communication
COM1 (DB9): Standard RS232, Debugging, Printing
COM2 (DB9): Switchable RS232/RS422/RS485, Connectors for Instruments, Frequency Converter Modbus
USB2.0 A Port: Program Download, Data Export, USB Drive Log Backup
ETH1 / ETH2 (Dual RJ45 10/100M Ethernet)
ETH1: Upper-level Configuration, SCADA, Modbus TCP
ETH2: Unit Internal Network, Wind Turbine Ring Network, OPC Communication
24VDC Power Terminal: Input for the entire machine power supply
Status Indicator Lights: RUN Running, INIT Initialization, ERR Fault Alarm
Twelve-Position Hexadecimal Rotary Dials: Set Startup Mode, Rack Address, Download Mode
3. Backplane and Power Supply Capacity
Backplane Bus: M1 Special Backplane, Expansion DI/DO/AI/AO, Communication Module
I/O Backplane Power Supply: Rated 16.75W, Output + 5V, ±15V for Expansion IO Cards
Overall Power Supply: DC24V (18~34VDC Wide Industrial Power Supply)
Weight: 675g, Standard 22mm Narrow Rack Module
4. Software Programming Support
Standard IEC 61131-3: ST, LD, FBD, SFC, IL
Support for C/C++, Matlab/Simulink Modeling Download
Built-in Motion Control, PID Adaptive Adjustment, Wind Turbine Special Function Library
Real-time Multi-task Kernel, Hardware Watchdog Loop Monitoring
