BENTLY 3500/22M 138607‑01 Transient Data Interface

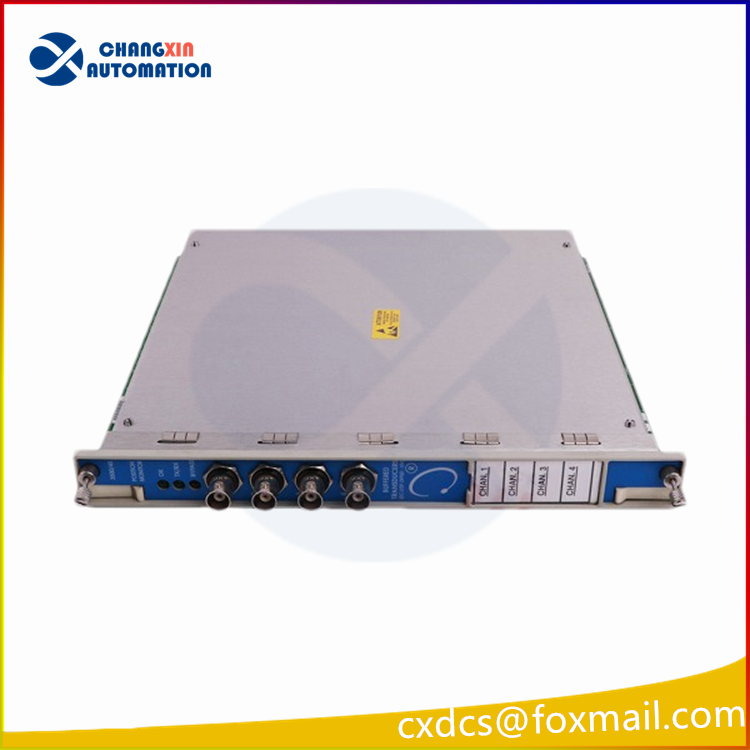

3500/42M 140734‑02 is a four-channel vibration/position monitoring module of the 3500 series mechanical protection system of Bently Nevada (now part of Baker Hughes). It is used for the continuous monitoring and protection of key parameters such as shaft vibration, displacement, differential expansion, and eccentricity of large rotating machinery such as steam turbines, generators, and compressors.

I. Model and Component Number Explanation
3500/42M: Model (42M = 4 channels, configurable, with communication)
140734‑02: Specific Component Number (PN), representing the hardware version and configuration, not interchangeable.
 Core Functions (4 independent channels, each channel programmable)
Radial vibration (shaft vibration): Peak-to-peak displacement in X/Y directions
Axial displacement (thrust position): Axial movement of the rotor
Differential expansion (Differential Expansion): Thermal expansion difference between the rotor and the cylinder
Eccentricity (Eccentricity): Bending degree of the rotor
REBAM: Bearing metal wear monitoring
Absolute vibration (shell vibration): Velocity/acceleration (seismic sensor)

Technical Specifications
Number of channels: 4 independent, isolated, configurable
Sensor compatibility:
Eddy current probe (3300XL series) – Displacement/Gap
Speed sensor – Shell vibration (mm/s)
IEPE accelerometer – High-frequency vibration (g)
Frequency response: 0.5 Hz – 15 kHz (full coverage)
ADC resolution: 24 bits, 100 kS/s per channel
Measurement accuracy: ±0.1% of full scale
Alarm: 2 levels per channel (Alert warning / Danger danger), relay output
Analog output: 4‑20 mA (can map any measured value)
Communication: Backplane bus + Ethernet (Modbus TCP, OPC UA) + RS‑485
Power supply: 24 VDC ±10% (supplied by the 3500 rack backplane), power consumption 7.7–9 W
Operating temperature: -40°C ~ +70°C
Size (height × width × depth): 241.3 × 24.4 × 241.8 mm (occupies 2 rack slots)
Weight: Approximately 0.91 kg

Typical Applications
Thermal power / Nuclear power: Turbines, generators, excitation machines
Petroleum and chemical industry: Centrifugal compressors, propylene machines, large pumps
Air separation / Metallurgy: High-speed fans, expansion machines, motors
Key requirements: Continuous online monitoring + Fault diagnosis + Protection interlock
