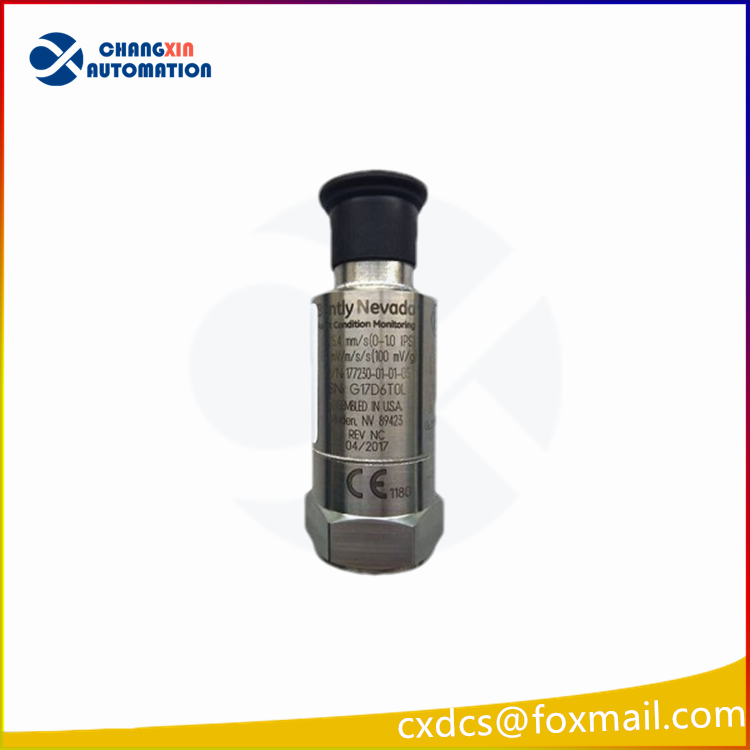

Bently Nevada 177230-01-01-05 vibration transmitter sensor

The Bently Nevada 177230-01-01-05 is an integrated vibration transmitter sensor. The following is a detailed introduction to this product:
I. Product Overview
Manufacturer: Bently Nevada (now a subsidiary of Baker Hughes).
Product Type: Integrated vibration transmitter sensor, mainly used for vibration monitoring and mechanical protection.
Application Fields: Widely used in power, petroleum, chemical, metallurgy and other industries, applicable to large rotating machinery such as steam turbines, motors, blowers, compressors, air separation units, gearboxes, pumps, etc.
Product Features
Integrated Design: Integrates accelerometers, integrators, transmitters, etc., without the need for additional signal conditioner, significantly simplifying system configuration and wiring.
Loop Power Supply: Uses 4-20mA current output, supports loop power supply, reducing wiring costs.
Easy Installation and Maintenance: Simple design, facilitating installation and maintenance, reducing training and service costs.
High Reliability: Built-in powerful CM design, meeting industry standards, improving equipment operational reliability.
Multiple Certifications: Possesses China explosion-proof certification (CN) and other international certifications (such as CSA, ATEX, IECEx, etc.), suitable for various hazardous areas.

Technical Parameters
Output Type: 4-20mA current output.
Sensitivity: Main circuit (signal one) 0.0 to 25.4mm/s (0 to 1.0in/s) ±10%, RMS effective value of frequency response.
Frequency Response: 10Hz to 1kHz (some models support 3Hz to 1kHz).
Operating Temperature: Usually 25℃ (specific operating temperature range may vary by model).
Shell Material: 304L stainless steel, with strong corrosion resistance.
Connection Type: 3-pin MIL-C-5015 stainless steel connector.
Connection Cables: Supports armored and non-armored connection cables, such as 16925-AA (non-armored) and 16710-AA (armored) and other models.
Size: Diameter 25.4mm (1.00in), height 66.0mm (2.60in).
Application Scenarios
Pumps: Centrifugal pumps, feed pumps, circulating pumps, etc.
Fans: Exhaust fans, induced fans, cooling fans, etc.
Motors: Small and medium-sized asynchronous motors, drive motors, etc.
Compressors: Some non-critical areas of reciprocating or centrifugal compressors.
Gearboxes: Vibration monitoring of general gearbox shells.
