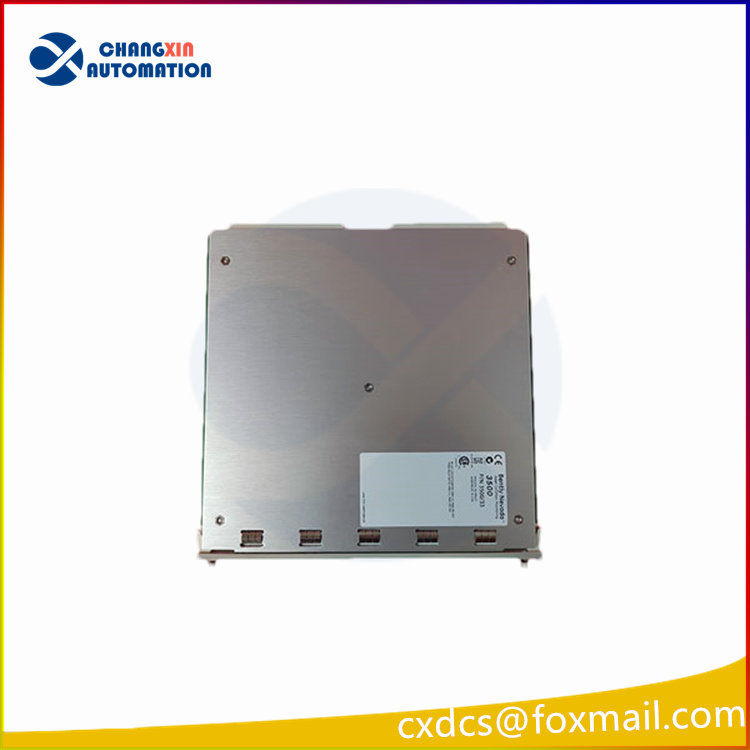

Bently Nevada 3300/81-050-00-00 Communication Gateway Module

Bently Nevada 3300/81-050-00-00 Communication Gateway Module Detailed Explanation

Model and Product Line Positioning

1. Serial Number Breakdown**
The complete order number `3300/81-050-00-00` belongs to the **old model 3300 rack-mounted TSI unit monitoring system dedicated communication gateway + expansion IO integrated module**: The segmented encoding `050` represents the hardware channel configuration version, the last two segments are firmware, regional customization identifiers, and spare parts procurement must be fully matched with the number.
2. **Generation Distinction**
It is only compatible with **the old 3300 series racks**, and it is completely incompatible with the 3500/60 temperature measurement module (the new generation 3500 rack) hardware slots and underlying protocols that you previously queried. It cannot be mixed and replaced; it is also independent of the ABB excitation industrial control board.
3. Core Positioning**: Summarize the measurement point data from vibration, displacement, and temperature monitoring cards in the rack, connect externally to the plant DCS and upper-level operation and maintenance software, and has built-in analog quantity expansion receiving and transmitting capabilities. It mainly serves as a data transfer for the existing old TSI systems of the units.

2. Core Hardware Specifications Table

| Parameter Item | Detailed Specifications
| Power Supply | The backplane of the rack is uniformly powered by 24VDC. Single-slot installation is plug-and-play, supporting power-off insertion and maintenance. |
| Operating Temperature Range | -20℃ to +70℃, suitable for industrial cabinets with 95% RH without condensation and humidity conditions. The board cards are coated with three protection layers. |
| External Interfaces | Ethernet port + RS232/RS485 serial ports. Native support for mainstream industrial protocols such as Modbus TCP/RTU. |
| Signal Expansion | Compatible with 0-10V, 4-20mA analog quantity acquisition / transducer output. Can be externally connected to third-party instrument measurement points. |
| Sampling Bandwidth | 0~400Hz, covering the frequency bands for vibration monitoring of steam turbine units and compressors in general. |

Core Functions

1. **Centralized Data Forwarding of the Entire Machine**
– Collect real-time values and warning/danger alarm statuses of various monitoring cards such as vibration, phase angle, and temperature within the rack, and upload them to the DCS and System1 predictive diagnosis platform for remote centralized monitoring.
2. **Expansion of IO Conversion**
– Supplement independent instrument signals outside the cabinet and output transducer signals to expand the measurement points of the entire TSI system, without the need for adding new machine racks.
3. **Link Self-Detection and Remote Configuration**
– Real-time diagnosis of communication link failures, active reporting of abnormalities; supports online modification of communication addresses and range parameters, without the need for disassembly operations.
4. **Protocol Adaptation and Conversion**
– Complete conversion between TSI private bus and factory standard industrial protocols, breaking through the barriers of connecting old monitoring equipment with new automatic control systems.

 Typical Application Scenarios

– Retrofitting of 3300 rack TSI systems for older steam turbine units in thermal power and hydropower, oil and gas centrifugal compressors, and large-scale rolling mills in metallurgy. This is often used for upgrading the operation of older factory units.

 Purchase Replacement & Maintenance Tips

Spare Parts Matching

It is necessary to purchase the complete serial number `3300/81-050-00-00`. Different suffixes of the same model have incompatible firmware versions. Before replacement, check the firmware version of the entire 3300 rack; it is not possible to insert it into a 3500 rack for use.

Typical Fault Phenomena

– Interruption of upper computer measurement point data, numerical data freezing without refreshing, module self-check errors, disconnection of serial port / network port communication, signal jumps in the expanded analog channels.

Installation and Disassembly Specifications

– Release the residual electricity of the rack’s capacitor after power-off, wear an anti-static wristband for insertion and removal; after replacement, reconfigure the communication address and channel range, and verify the DCS connection parameters.

Horizontal Comparison (Two Modules of the Same Brand) Table

| Model | Category Usage | Compatible Rack | | — | — | — |
| 3300/81-050-00-00 | Communication Gateway + Extended I/O | Old 3300 Rack |
| 3500/60 133827-01 | 6-channel Special Temperature Monitoring Card | New Generation 3500 Rack |
