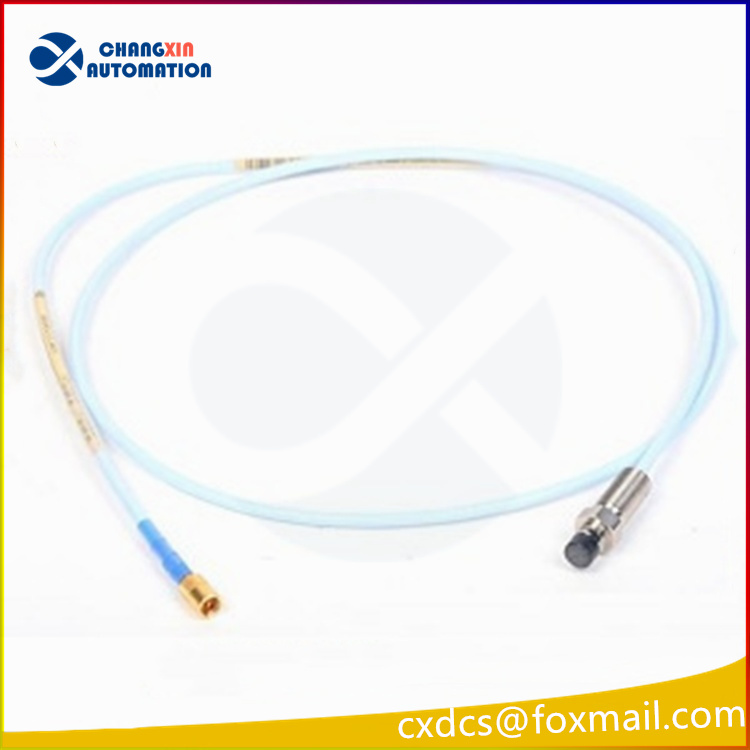

Bently Nevada 330105-XX-XX-05-02-05 Electromagnetic Induction Probe

Product Description

Bently Nevada 330105‑XX‑XX‑05‑02‑05 is a 3300 XL 8 mm reverse‑mount eddy‑current proximity probe. XX denotes configurable unthreaded length and housing length; 05 means integral probe cable length 0.5 m; 02 stands for top‑mount MIL‑C‑5015 two‑pin connector; 05 is standard FEP cable (non‑FluidLoc). Full transducer system requires matching 3300 XL extension cable and 3300 XL proximitor. It outputs voltage proportional to target gap for non‑contact shaft‑vibration, axial‑position and keyphasor speed measurement, complying with API‑670 standard. Probe body is 316L stainless‑steel with TipLoc reinforced tip and high‑tensile‑strength cable for heavy‑duty industrial‑condition‑monitoring spare‑part applications.

Technical Specifications

1. Model: 330105‑XX‑XX‑05‑02‑05; Series: 3300 XL 8 mm Reverse‑Mount Probe
2. Integral Probe Cable: 0.5 m; Connector: Top‑mount MIL‑C‑5015 2‑pin
3. Sensitivity: 7.87 V/mm (‑200 mV/mil)
4. Linear Range: 2 mm (80 mils); Recommended installation gap:1.27 mm (50 mils)本特利
5. Thread: 3/8‑24 UNF reverse‑mount thread
6. Material: 316L stainless‑steel probe body; FEP cable jacket
7. Operating Temperature:‑45 ℃ ~ +177 ℃
8. Required Accessories: 3300 XL extension cable, 3300 XL proximitor
9. Compatible Monitor Modules: 3500/40M, 3500/42M, 3500/45, 2300/20 etc.本特利
10. Standards: API‑670 4th edition compliant, CE approved

Product Applications

1. Shaft‑vibration and axial‑displacement monitoring for steam turbines, gas turbines, hydro‑turbines
2. Condition monitoring for centrifugal compressors, expanders, fans, motors and gearboxes
3. Keyphasor pickup for rotational‑speed and zero‑speed detection
4. Rotating‑machinery protection systems in power, petrochemical and metallurgical plants
5. Sensor spare‑part replacement and site retrofits for Bently 3500 monitoring systems
6. Predictive‑maintenance and early‑fault warning for critical rotating assets

Peer Series Part Numbers

1. 330105‑02‑12‑10‑02‑05 (1.0 m cable)
2. 330105‑02‑12‑15‑02‑05 (1.5 m cable)
3. 330105‑02‑12‑05‑00‑05 (0.5 m cable, no connector)
4. 330106‑05‑30‑05‑02‑05 (M10 thread reverse‑mount probe)
5. 330101‑00‑08‑05‑02‑05 (Standard‑mount 8 mm probe)
