BENTLY NEVADA 3500/42-04-00 Communication Gateway Module

product description：

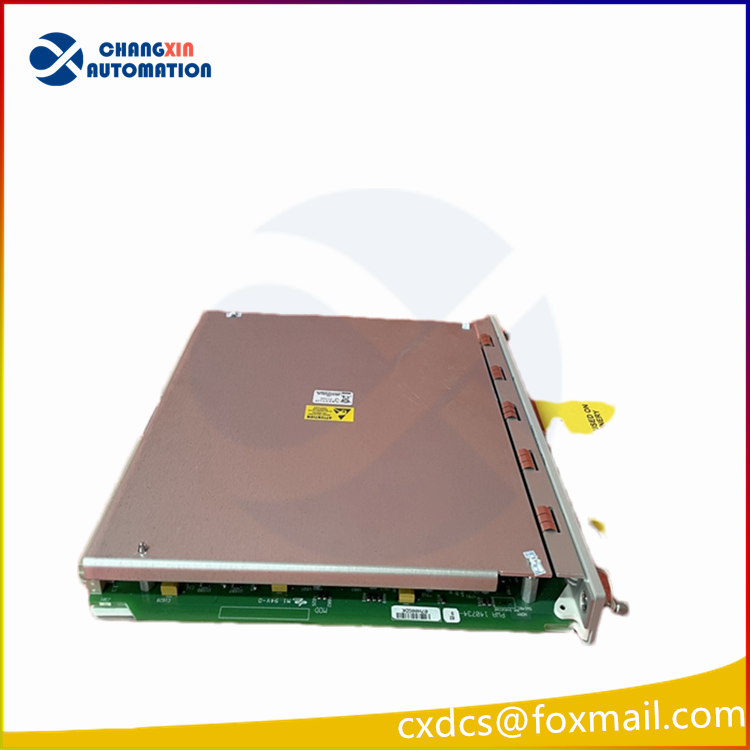

Bently Nevada 3500/42-04-00 Communication Gateway Module
I. Model Segmentation Explanation (3500/42-04-00)
3500/92: Base model of the module, 3500 system communication gateway
04: I/O sub-module type = Ethernet + RS485 Modbus interface
01: Memory specification = Low memory version
00: No third-party certification / classification certification options
Origin: United States (Baker Hughes’ Bently)

 Core Positioning
The dedicated gateway for the 3500 unit protection framework uniformly outputs all the vibration, displacement, speed, alarm, and channel status externally, replacing a large number of hard-wired connections and interfacing with DCS/PLC/SCADA/upper-level configuration software.

 Hardware Interfaces
Ethernet port RJ45 (10BASE-T)
Protocol: Modbus TCP, Bently proprietary protocol
Usage: For online connection with 3500 configuration software, for data collection from the upper-level network interface
Serial port RS485 (standard for 04 sub-module)
Protocol: Modbus RTU
Can be directly connected to PLC, RTU, and third-party monitoring systems
Backplane bus of the rack: High-speed interaction with 3500/40M, 3500/42M, 3500/50 and other monitoring cards
Panel indicator lights
OK: Module running normally
TX/RX: Internal bus communication flashing

Supported Communication Protocols
Modbus RTU (RS485 serial)
Modbus TCP (Ethernet)
Bently proprietary protocol (配套 3500 configuration and data acquisition software)
Feature： Customizable Modbus register mapping， freely selecting the channel data to upload， the old 3500/90 does not have this flexible function.

Electrical and Environmental Parameters
Power consumption： Approximately 5.6W
Size： 241 × 24.4 × 242 mm (standard 3500 single slot)
Operating temperature： -30℃ ~ +65℃
Storage temperature： -40℃ ~ +85℃
Applicable： Power plant steam turbine units， compressors， fans， pumps， petrochemical turbine units 3500 monitoring system

Main Functions
Collect real-time values of all monitoring cards in the rack： peak value of vibration， gap voltage， speed， temperature， phase
Upload alarm status， OK / fault of channels， shutdown interlock signals of the unit
Store event logs， remotely read fault records through network interface / serial port
A single gateway uniformly aggregates all the data of one unit， without each monitoring card outputting separately
Remote online modification of 3500 framework configuration parameters (Ethernet)

Comparison and Replacement of the Same Series
3500/92 replaces the old 3500/90， with more flexible register configuration
Suffix differences：
-04： Ethernet + RS485 (current model)
-02： Only RS232 serial port
-03： Only RS485 serial port
Multiple 92 modules on the same rack can be parallelly connected， respectively interfacing with different control systems

Typical Application Scenarios
3500 vibration protection system for thermal power turbines， gas turbines， air separation compressors， petrochemical large-scale units， blast furnace fans， etc.， will send unit status data to ABB System800xA， Honeywell DCS， Siemens PLC， etc. control systems.
