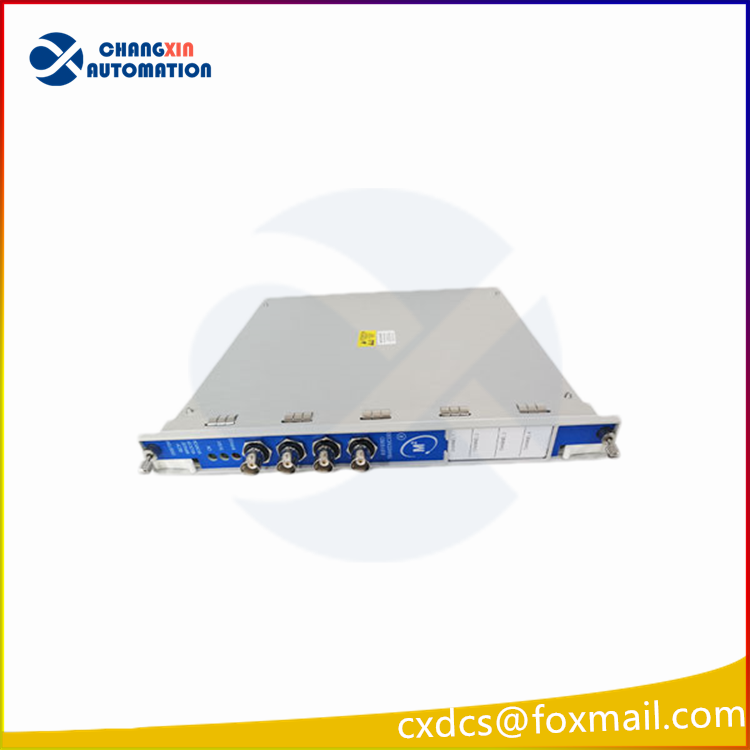

BENTLY NEVADA 3500/42M-09-00 Earthquake Monitoring Module

Product Description

Bently Nevada 3500/42M-09-00 is a 4-channel Proximitor / Seismic Monitor module for Bently Nevada 3500 Machinery Protection TSI system, the core card of rotating machinery protection system. This module accepts signals from eddy-current proximitors and seismic velocity / acceleration transducers. The four channels are independently programmable to measure radial vibration, thrust position, differential expansion, eccentricity, vibration velocity, acceleration and more. It provides programmable alarm and trip outputs. Compliant with API670 and IEC61508 SIL2. It is mounted in the 19-inch rack of the 3500 system. Widely used for online condition monitoring and protection of steam turbines, compressors and other critical rotating equipment, it is a common spare part for TSI systems in power, oil & gas and chemical industries.

Specifications

1. Model: 3500/42M-09-00
2. Product Type: 4-Channel Proximitor / Seismic Monitor
3. Number of Channels: 4 independent programmable channels
4. Supported Sensors: Eddy current displacement proximitors, velocity transducers, acceleration transducers
5. Measurable Parameters: Radial vibration, thrust position, differential expansion, eccentricity, shaft absolute vibration, vibration velocity, acceleration
6. Input Impedance: 10kΩ for displacement input
7. Power Consumption: 7.7 W
8. Configuration Software: 3500 Rack Configuration Software, independent alarm / danger threshold per channel
9. Safety Level: IEC61508 SIL2, compliant with API 670
10. Mounting: Slot installation in standard 19-inch 3500 rack
11. Front Panel Indication: OK status LED, channel alarm and fault LED indicators
12. Operating Temperature: 0 ~ +60℃ (inside cabinet)
13. Storage Temperature: -40 ~ +85℃
14. Protection Class: IP20 (PCB board installed in control cabinet rack)
15. Certifications: CE, optional Ex certification

Applications

• Thermal & Hydropower: TSI supervisory instrumentation for steam turbines and hydro turbines, shaft vibration and axial displacement monitoring & protection
• Oil & Gas / Chemical: Online monitoring and interlock protection for large centrifugal compressors, expanders and pump trains
• Metallurgy: Condition monitoring and machinery protection for large fans and main exhaust fans
• Coal Chemical: Equipment protection for syngas compressors and recycle gas units
• Maintenance & Retrofit: Faulty card replacement for 3500 rack systems, spare parts for unit overhaul, legacy TSI system upgrade

Family Models

3500/40M Proximitor Monitor 3500/42M 4-Channel Displacement & Vibration Monitor 3500/44M Aeroderivative Gas Turbine Monitor 3500/45M Differential Expansion / Thrust Position Monitor 3500/50 Speed / Keyphasor Module 3500/53 Relay Output Module
