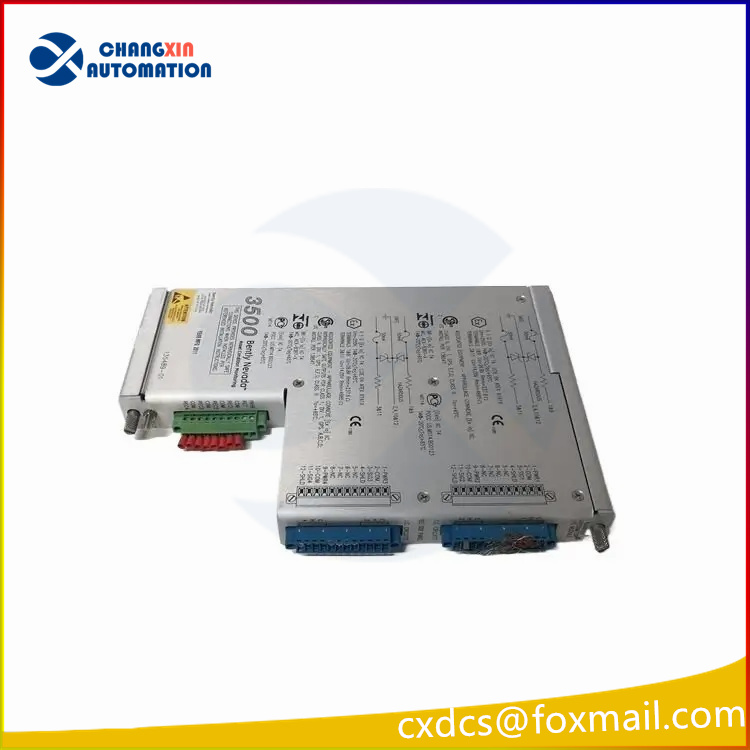

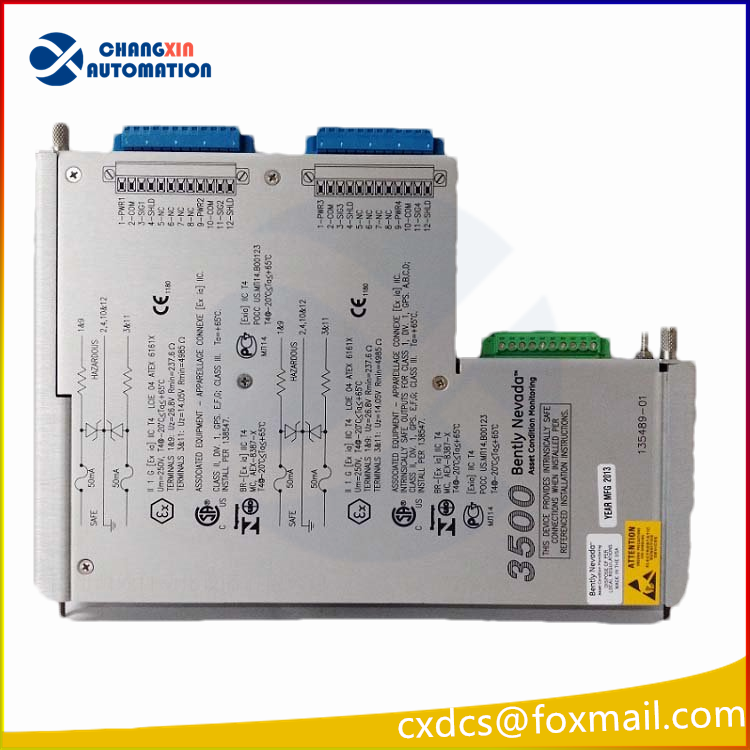

Bently Nevada 3500/42M 135489-01 Four-channel Vibration Monitoring Module

Bently Nevada 135489-01 (3500/42M Four-channel Vibration Monitoring Module)
135489-01 is an internal terminal I/O module of Bently Nevada (now part of Baker Hughes) 3500/42M, which is a core component of the 3500 series TSI (Turbine Monitoring Instrument) system. It is used for high-precision monitoring and protection of vibration, displacement, and acceleration in rotating machinery.

I. Basic Information
Model: 135489-01 (3500/42M compatible I/O card, with internal terminals)
Manufacturer: Bently Nevada (GE Baker Hughes)
System: 3500 Series Mechanical Protection System (TSI)
Module Type: Four-channel vibration/ displacement monitoring module (internal terminal version)
Sensor Compatibility: Eddy current displacement probe, speed/acceleration sensors (such as 3300/7200 series)
Installation Location: Standard full-height slot of 3500 rack, supports hot swapping

Core Parameters
Channel Number: 4 independent inputs (configurable as vibration, displacement, acceleration, speed)
Input Signals:
Eddy current probe: -24V ~ +10V (input impedance 20kΩ)
Seismic sensor: acceleration/velocity signal
Frequency Response: 5Hz ~ 1kHz (covering the main frequency of industrial equipment vibration)
Accuracy: ±0.5% of full scale, supports API 670 standard certification
Power Supply: 24VDC (rack power supply, redundant design)
Power Consumption: ≤8W
Operating Temperature: -40℃ ~ +70℃
Size/Weight: Full-height module (133.4mm×44.5mm×133.4mm) / approximately 0.7kg
Terminal Characteristics: Internal integrated terminals, cannot be combined with external terminal blocks (different from 128229-01)

Functional Features
Multi-parameter Compatibility Monitoring: Four channels can be independently configured, supporting radial vibration, axial displacement, eccentricity, differential expansion, acceleration, speed, etc. for multi-parameter measurement.
Internal Terminal Design: Built-in wiring terminals, no need for additional terminal blocks, simplifies wiring, suitable for compact rack configuration.
High Precision and Diagnosis: Built-in DSP processing, supports FFT spectrum analysis, can identify imbalance, misalignment, bearing wear and other faults in advance.
Alarm and Protection: Independent alarm for each channel / dangerous threshold, drives relay interlock, supports shutdown protection.
Hot Swap and Redundancy: Supports online replacement, redundant power supply adaptation, ensures continuous system operation.

Typical Applications
Power: Turbine, generator, boiler fan, feed pump vibration/displacement monitoring
Chemical Industry: Centrifugal compressor, reaction vessel, pump group, turbine expander condition monitoring
Metallurgy: Rolling mill, fan, motor, gearbox vibration protection
Others: Online monitoring and fault warning for high-speed rotating machinery (rotational speed ≤ 10,000 RPM)
