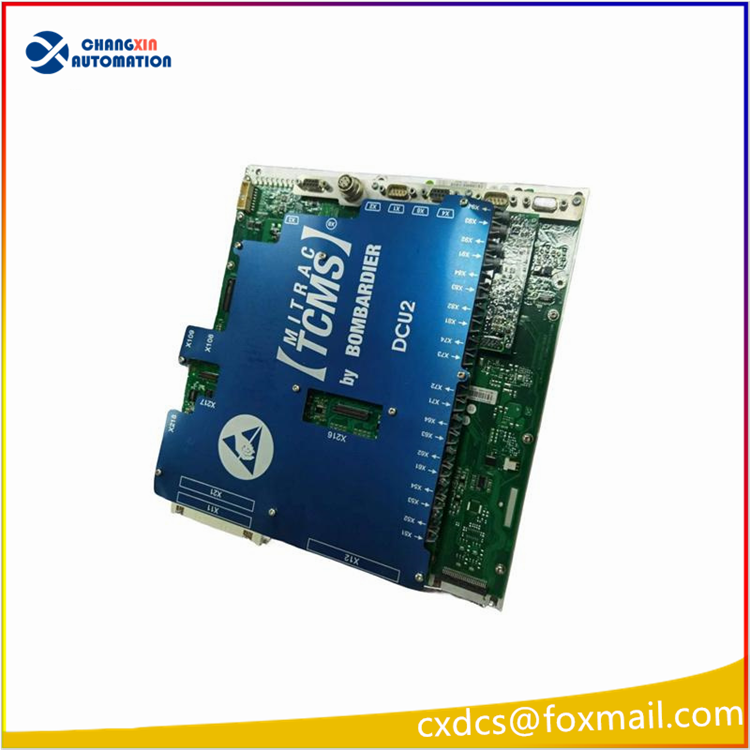

Bombardier DCU2 DCC 2580B 3EST000214-2070 Traction and Drive Control Unit Module

I. Brand and System Background
Manufacturer: Bombardier, the rail transportation business has been acquired by Alstom
Ownership Platform: MITRAC TCMS Train Control Management System, DCU2 = Drive Control Unit Traction Drive Control Unit
Full Model: DCU2 DCC 2580B, Internal Material Code 3EST000214-2070
Application Scenario: Core main control board for urban rail, EMU, electric locomotive traction converters, installed inside the traction inverter box
Life Cycle: The original factory no longer produces new vehicle components, only dismantled spare parts and inventory leftovers circulate, train maintenance spare parts

Core Function Positioning
DCU2 is the bottom-level computing core of the traction converter, independently completing traction/electrical braking closed-loop control, and interacting with the entire TCMS:
Traction motor vector control: Real-time calculation of torque and speed, output PWM pulses to drive IGBT power modules, achieving train traction, regenerative braking
High-voltage circuit monitoring: Collecting contact wire voltage, intermediate DC bus voltage, three-phase motor current, temperature signals
Full vehicle protection logic: Overcurrent, overvoltage, grounding, IGBT overheating, speed sensor failure, inverter short-circuit hardware-level protection, fault blocking pulse and reporting to TCMS
Bus communication interaction
MVB traction bus: Exchanging traction instructions and fault codes with VCU vehicle control unit
Ethernet debugging port: Software download, parameter calibration, fault log reading
Fiber optic channel: Isolated communication with speed sensors, power units
IO signal processing: Multi-channel isolation DI/DO collection of contactors, circuit breakers, fans, temperature relays status, output driving cooling fans, pre-charging circuit

Hardware Architecture Composition
The entire board integrates four layers of core circuits:
CPU main control board: 32-bit industrial DSP + FPGA, responsible for vector algorithms, protection logic, and bus protocol stack
Analog sampling board: High-precision current/voltage sampling, temperature signal conditioning, 2500V strong and weak electrical isolation
Fiber pulse board: Optical coupling isolation PWM pulse output, driving power IGBT, anti-high-voltage interference
Digital IO backplane: Isolated switch quantity input/output, vehicle interlock circuit
Electrical and mechanical parameters
Power supply: Vehicle DC 24~65V vehicle control power supply
Operating temperature: -25℃ ~ +60℃ (cabinet air-cooled of the locomotive)
Protection: Board card IP30, entire inverter cabinet IP54
Size: 229 × 127 × 35 mm
Weight: Approximately 3.3kg
Interface definition (multiple sets of DB9 / aviation sockets)
X1/X2: MVB train traction bus
X5: Ethernet debugging interface
X6: Speed sensor fiber optic channel
X21/X22: Digital input/output terminals

Communication Protocol
MVB (Multifunctional Vehicle Bus): Standard real-time control bus of the entire TCMS
Ethernet: Debugging, program download, fault data export
Plastic optical serial communication: Isolated speed pulse collection
Internal parallel bus: Data interaction between the board’s CPU and sampling, pulse board
V. Compatible Vehicle Models
Bombardier MITRAC platform metro, urban multiple unit EMU
HXD3B and other domestic high-power electric locomotive traction systems
Export to overseas light rail, EMU traction inverters

Spare Parts Procurement and Fault Explanation
1. Current Supply Status
Domestic rail transportation spare parts suppliers in Xiamen and Shenzhen have dismantled test pieces and a small amount of new inventory; new quality guarantee is 12 months, dismantled test pieces have a regular 6-month quality guarantee.
Pre-test items before installation:
MVB bus communication reception and transmission normal Full simulation sampling channel accuracy verification
No loss of optical pulse output
Conduction and isolation performance of all DI/DO channels
Reading internal fault logs, clearing historical errors
2. Common typical faults
Train reports traction lockout, no traction force: DCU2 DSP firmware lost, optical pulse channel damaged
Frequent reports of motor overcurrent: current sampling amplifier, isolation optocoupler breakdown
MVB communication loss, TCMS reports converter offline: MVB interface chip, backplane connector oxidation
Electric braking failure, regenerative braking unavailable: temperature sampling circuit failure, triggering overheating protection
Power-on self-test failure: onboard power circuit, storage chip aging
