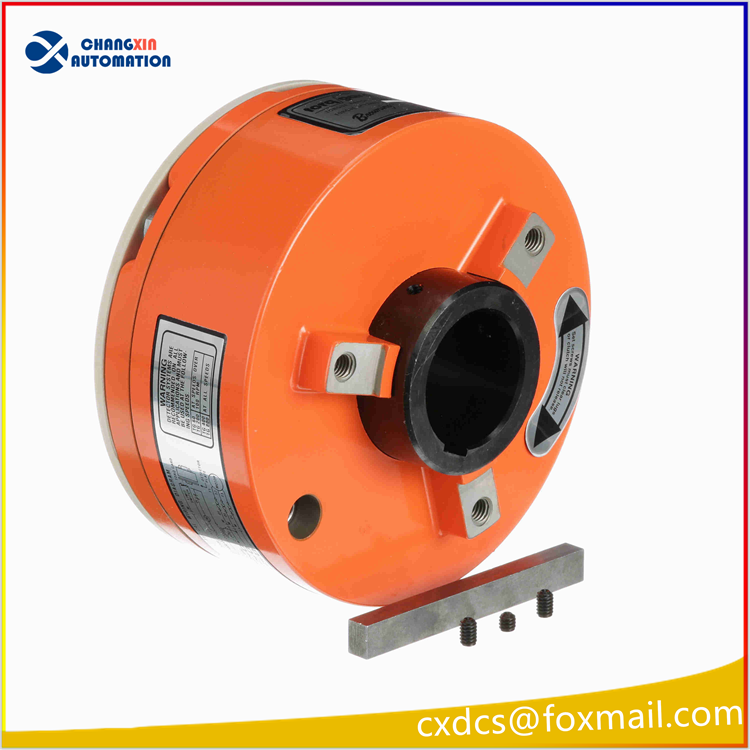

Browning 1295161 TGC200 Cam-type Torque Limiting Overload Clutch

Product Description

Browning TGC200, part number 1295161, is a cam detent torque limiting overload clutch of Browning Torq/Gard series under Regal Rexnord. It adopts cam-detent mechanical structure with preset disengagement torque. When machine jamming or overload occurs, the clutch disengages instantly to protect the whole drive train from damage. Automatic reset can be achieved by jogging the machine after fault clearance, and it works for bi-directional rotation. The housing is made of close-grained aluminum alloy with forged alloy steel cam and heavy-duty needle bearings. The lifetime-sealed chamber is filled with moisture-resistant lithium grease, suitable for outdoor and washdown environments. Bright orange enamel finish enables easy field identification. Equipped with sensor trigger plate for external overload alarm signal output. It serves as a key safety protection component for mechanical power transmission systems.

Technical Parameters

• Model: TGC200
• Part Number: 1295161
• Brand: Browning (Regal Rexnord, USA)
• Product Type: Torq/Gard Cam Detent Overload Clutch / Torque Limiter
• Adjustable Torque Range: 600 ~ 2000 in-lb
• Max Speed: 680 RPM
• Max Horsepower: 21.5 HP
• Reset Type: Automatic reset (via machine jogging)
• Mechanism: Cam detent, bi-directional rotation
• Bore Diameter: 1-15/16 in
• Outside Diameter: 7 in
• Overall Length: 4.31 in
• Hub Keyseat: 1/2 × 1/8 in
• Housing Material: Close-grained aluminum alloy; Cam: forged alloy steel
• Bearing: Heavy-duty needle bearing
• Sealing: Lifetime sealed, moisture resistant, washdown capable
• Accessories: Sensor trigger plate for external overload detection sensor
• Backlash: Low backlash
• Weight: 11.86 LB (approx. 5.38kg)
• Product Status: Original active production, spare part for power transmission equipment

Product Application

It is installed on power transmission lines of conveyors, packaging machinery, material handling equipment, mixers, pumps and fans. In case of material blockage, stall or shock overload, the clutch disengages rapidly to avoid breakage of costly components including motors, gearboxes, chains and belts. Widely applied in food packaging, mining conveying, building materials, chemical and agricultural machinery industries. It acts as mechanical overload safety protector to reduce equipment downtime and maintenance cost.
