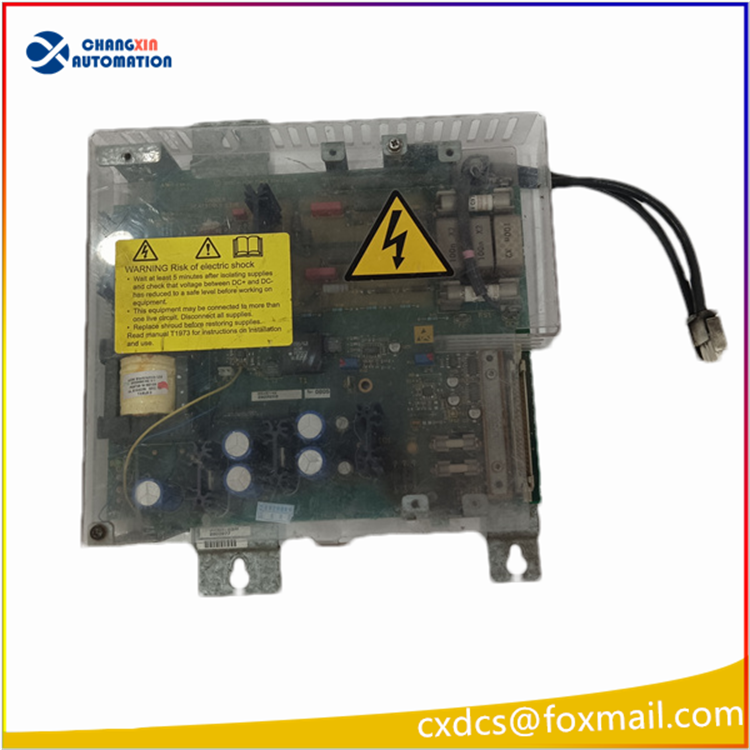

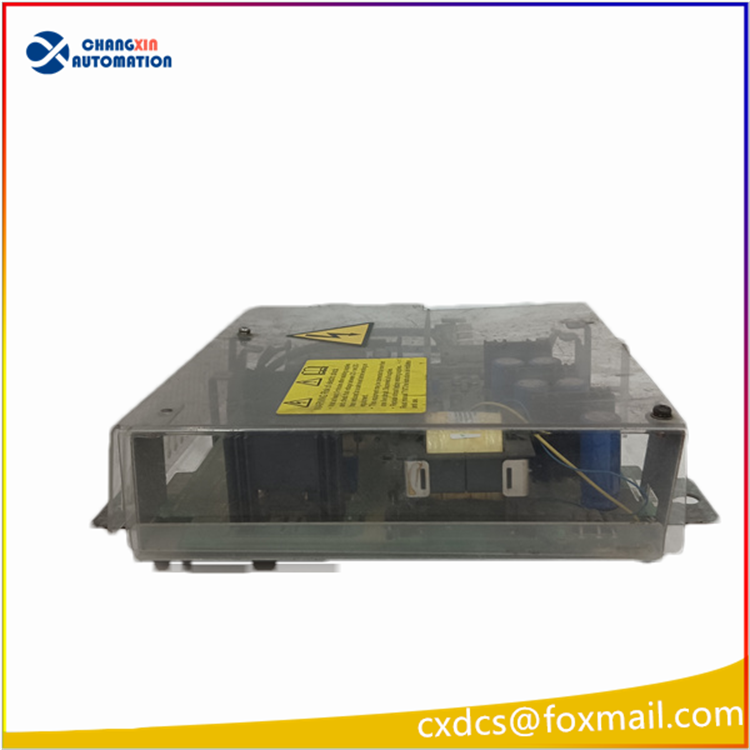

CONVERTEAM MVC3003-4030PP High-performance Servo Drive

CONVERTEAM MVC3003-4030PP High-performance Servo Drive
I. Basic Product Information
Brand: CONVERTEAM (France) (acquired by GE and now belongs to the energy transmission business of ABB)
Model: MVC3003-4030PP
Product Type: Three-phase AC servo driver (high-precision vector drive unit)
Product Status: The original factory has discontinued production. The market mainly consists of new inventory and refurbished spare parts from disassembled units
Origin: France

Model Meaning
MVC: Converteam Modular Vector Drive Series
3003: Series version + Rated Power 3kW
4030: Hardware specification for three-phase 400V voltage level compatible with hardware
PP: Dual-fiber redundant communication version
II. Core Electrical Parameters
Input Specifications
Three-phase AC 380~480V, 50/60Hz
Rated Power: 3kW
Rated Continuous Output Current: 7.5A; Peak Output Current: 15A
Output Parameters: 0~480V AC, Output Frequency 0~400Hz
Speed Control Range: 0~3000rpm
Position Control Precision: ±0.01%, Dynamic Response Time < 10ms
Protection Grade: IP20 (installed in control cabinet)
Overall Dimensions: 420×210×120mm, Overall Machine Weight approximately 15kg

Control Modes
Supports three mainstream control methods:
Speed Closed-Loop Control: for fans, pumps, conveyors, etc., speed regulation
Position Closed-Loop Control: for machine tool feed, positioning mechanical hands, printing and packaging synchronous shafts
Torque Closed-Loop Control: for tension winding and tension release, metallurgical rolling load control
Built-in V/F Open-Loop Control, Vector Closed-Loop Control two algorithms, strong load disturbance resistance.

 Communication and Hardware Interfaces
Dual-fiber redundant ring network interface (core configuration of PP version)
Supports fiber self-healing ring network, link failure automatically switches within 10ms, compatible with Profibus DP bus distributed multi-axis synchronous system, stable communication in strong electromagnetic environment over long distances.
Conventional Communication Ports
RS232, RS485, CANopen bus; Supports Modbus RTU, can be connected to PLC, upper-level monitoring system.
Encoder Feedback Interface: Compatible with incremental, rotary transformer high-precision position feedback.
DI/DO Switching Terminal: Digital Start/Stop, Fault Alarm, Operating Status Feedback.

Core Functional Features
High-reliability redundant communication
Dual-fiber ring network architecture, can achieve synchronous linkage of multiple drives, single optical fiber break does not stop operation, widely used in metallurgical, wind power, ship key transmission systems.
Complete hardware protection
Overvoltage, undervoltage, overcurrent, overload, overheating, output short circuit, motor phase loss, encoder break line comprehensive fault diagnosis, fault codes locally stored, convenient for operation and maintenance troubleshooting.
Multi-axis synchronous control
Support electronic gears, electronic cams, master-slave following, meet high-precision synchronous transmission of printing, film, papermaking, film production lines.
Industrial wide-temperature design
Working Temperature 0℃~+55℃, high EMC anti-interference, compatible with steel mills, wind power, ships, mines and other harsh working conditions.

 Typical Application Scenarios
Metallurgical Industry: Rolling mills, coil winding machines, belt conveyor high-precision transmission control
Wind Power Equipment: Wind turbine yaw, pitch system servo drive
Ship power propulsion, deck lifting equipment speed regulation system
Printing, packaging, papermaking, film production line multi-axis synchronous control
Numerical control machine spindle, feed servo drive
