The original DEIF factory standard AOP-1 cable is only 0.5 meters long. The manual clearly states: The theoretical maximum distance for serial communication is only 0.5 meters. The factory does not recommend extending it. It is only used in special ship/电站 cabinet split layouts with the 150036482 series extension cables.
Interface： Both ends are RJ45 crystal heads， directly plugged into the DU-2 backside “AOP-1” dedicated network port and the AOP-1 backplane network port.
Wire core function： It simultaneously transmits 24VDC power supply + serial communication， without a separate power supply terminal. 150036482-12C parameters

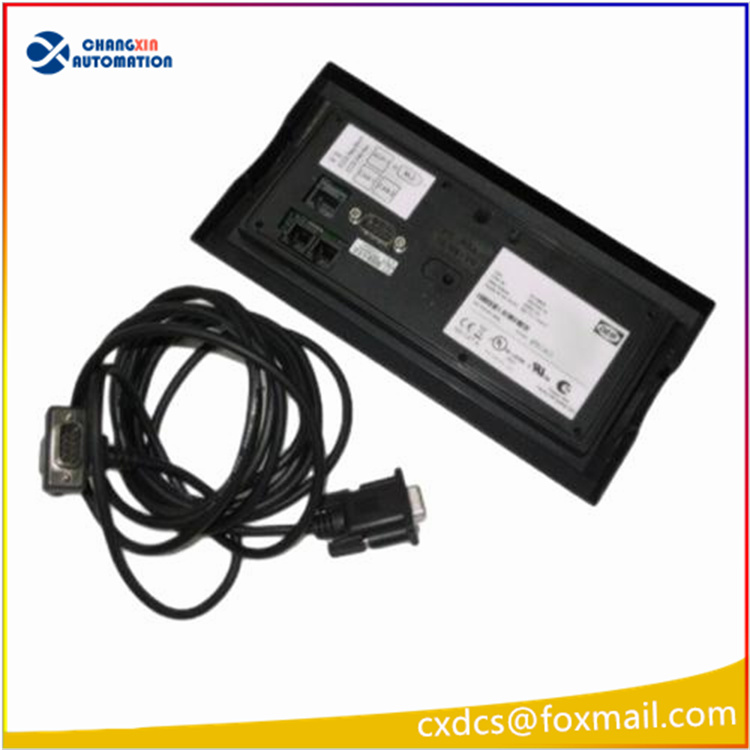

Full model name： Cable AOP-1， 12m， Order Number 150036482-12C
Structure： Shielded 8-core twisted pair， with an overall metal shielding layer， resistant to ship EMC interference
Length： 12 meters
Compatibility combination： DU-2 MKII / DU-2 MKIII + AOP-1 panel
Power supply： The cable carries the DU-2 output 24V to AOP-1， no additional power supply required
Certification： Classification Society compatible， CE， UL， compatible with marine auxiliary generator distribution panels
Four. Risks of Use and Debugging Points
Communication attenuation risk
After extending by more than 0.5 meters， electromagnetic interference is likely to occur： LED flashing， button no response， panel disconnection； 12 meters is an extremely long specification. Construction must be done separately in a shielded conduit， away from power cables.
Installation specifications
Shield layer grounded at one end (only the DU-2 side is connected to the cabinet ground， the AOP-1 end is floating)
Cable routing should avoid contactors， frequency converters， and large current cables， with a spacing of ≥ 30cm
Software confirmation
After powering on， use the DEIF USW software to read the panel. If the AOP-1 is not recognized， check this extension cable’s shielding grounding first.
Five. Length Differentiation of the Same Series (Material Number Suffix Rules)
150036482-0.5： Original factory standard 0.5 meters (panel is self-contained)
150036482-3C： 3-meter extension
150036482-6C： 6-meter extension
150036482-12C： 12-meter extension
