Product Description

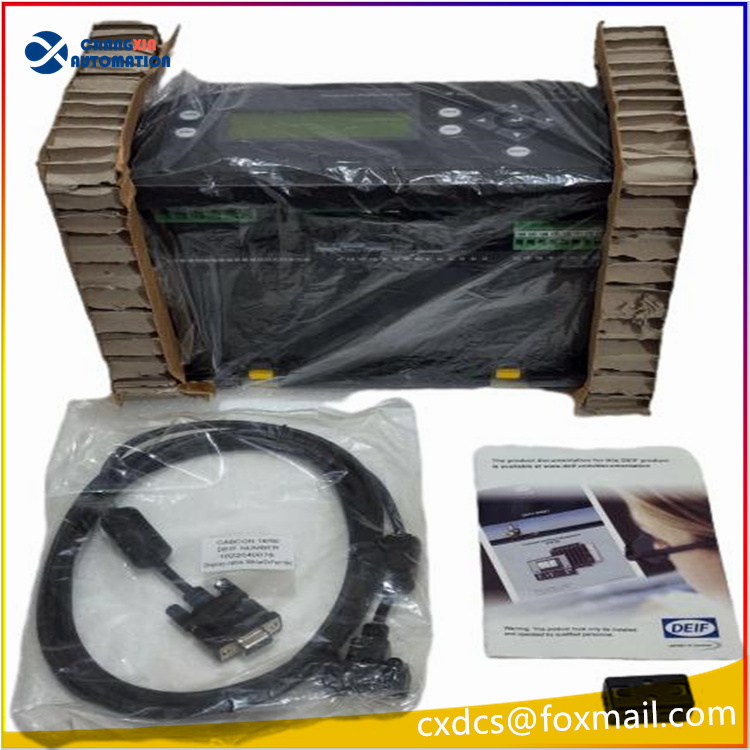

DEIF AGC‑4 Mk II is an Advanced Genset Paralleling & Power Management Controller, new‑generation hardware on Multi‑line 2 platform and upgraded successor of AGC‑4. Original OEM production active, brand‑new original units availableDEIF …. It supports standalone AMF operation, multi‑genset paralleling, grid‑tied mode, island operation and BTB bus‑tie control. Integrated auto‑synchronisation, full‑set protection, M‑Logic custom programmable logic, PID governor & AVR regulation and CAN‑bus engine protocols. Basic power‑management supports up to 32 gensets; extended power‑management can manage up to 992 generating units. Compatible with external TDU107 / TDU110 touch‑screen HMI, built‑in Ethernet web‑server monitoring. Supports Tier 4 Final / Stage V engines and complies with international grid‑codes including VDE, EN50549 and ENA G99. Redundant system configuration available for industrial, datacentre, marine and micro‑grid projectsDEIF …。
Technical Specifications
| Item | Specification |
|---|---|
| Full Model | AGC‑4 Mk II |
| Product Type | Genset Paralleling & Power Management Controller |
| Power Supply | 8‑36 VDC, typical power consumption 11 W |
| Mounting | DIN rail mount |
| Digital Inputs | 5 standard DI, expandable via CIO I/O modules |
| Relay Outputs | 5 relay outputs +1 status relay, 2 pulse outputs |
| Communication | Ethernet, CAN‑bus engine interface; optional Modbus‑RTU, Profibus‑DP |
| Core Functions | AMF auto‑mains‑failure start, automatic synchronisation, load sharing, P/Q PID regulation, M‑Logic programmable logic, comprehensive genset protection, embedded web‑server monitoring |
| Power Management | Up to 32 gensets in basic mode; max. 992 units in extended modeDEIF … |
| External HMI | TDU107 / TDU110 touch display units |
| Engine Protocol | J1939, CANopen; Tier4 Final / Stage V after‑treatment supportDEIF … |
| Operating Temperature | ‑20℃ ~ +70℃ |
| Storage Temperature | ‑40℃ ~ +85℃ |
| Certification | UL, TÜV, CE; VDE‑AR‑N‑4105, EN50549‑1, ENA G99 grid‑code compliantDEIF … |
| Enclosure | Industrial metal housing |
| Weight | Approx. 0.85 kg |
| Country of Origin | Denmark |
Product Application
- Stand‑alone automatic control for diesel / gas gensets, AMF backup power for mains failure.
- Multi‑genset parallel operation, load‑balancing, grid‑connected & island‑mode power‑plant control.
- Critical backup power for data centres, hospitals and industrial facilities.
- Automation control for marine and offshore power stations.
- Micro‑grid and hybrid energy‑storage generation power management.
- Retrofit of legacy power‑plants, replacement for older AGC‑4 / AGC150 controllers; building redundant control systemsDEIF.
Related Series Models
‑ AGC‑4: Previous‑generation hardware, similar function with older firmware
‑ AGC‑150: Economy‑range paralleling controller for mid‑small gensets
‑ ASC‑4 Mk II: Hybrid solar‑battery energy controller, network‑compatible with AGC‑4 Mk II
‑ ALC‑4: Load‑controller for heavy‑load‑management functions
‑ TDU107: 7‑inch external touch‑screen HMI
‑ TDU110: 10‑inch external touch‑screen HMI
‑ CIO: CAN‑bus expandable I/O modules for extra analogue & digital points
