I. Basic Definition

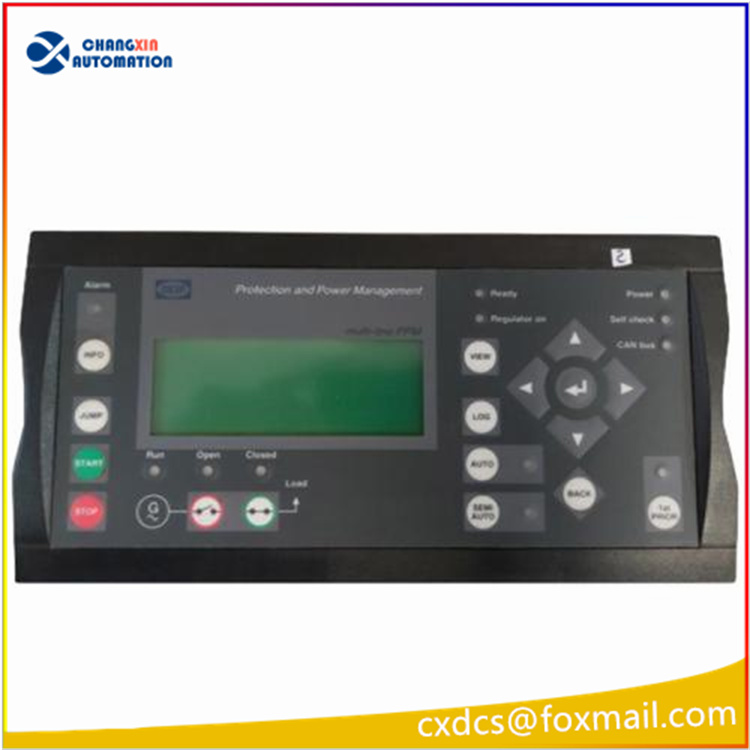

AOP-1 = Additional Operator Panel 1, is a local short-distance indicator operation panel for the DEIF MULTI-LINE 2 series (AGC/PPM generator set controller). It is an Option X3 expansion accessory and is used in conjunction with the DU-2 display unit. It is mainly applied for centralized indicator monitoring of multiple generator sets in ships and land power stations.

Hardware Configuration
Indicator Lights: 16 customizable LEDs (red/green/yellow color software allocation)
Red: Alarm, fault shutdown
Green: Operation, ready, normal
Yellow: Standby, mode status
Operation Buttons: 8 programmable function buttons (start/stop, mode switching, mute, lamp inspection, unit selection, etc.)
Power Supply and Communication
No independent power supply, no independent CAN address; must be directly connected to the DU-2 display via a dedicated cable, powered by DU-2 and using serial communication
Standard connection cables, maximum wiring distance of only 0.5 meters, cannot be extended
Installation and Electrical
Embedded installation on the cabinet, protection IP40
Operating Power Supply: DC24V (supplied by DU-2)
Dimensions: 220×120×20mm, net weight 190g
Certifications: UL, CE, applicable to classification society, CAT.III 50V insulation class
