DEIF SCM-2 Synchronous Measurement Control Module

DEIF SCM-2 Synchronous Measurement Control Module Product

I. Basic Information
Brand: DEIF (Danish Dynalink, a globally renowned brand for power management in ships and power stations)
Model: SCM-2
System: GPC-3000 Generator Set Multi-Generator Parallel Power Management System
Product Type: Synchronous Control + Electrical Parameter Measurement Expansion Module
Installation Method: Rack-mounted plug-in installation, used in the control cabinet (IP20 protection)
Power Supply Voltage: DC 24V
Rated Power Consumption: 2W
Operating Temperature: -25℃ ~ +70℃
Dimensions: 125×75×30mm, Net Weight approximately 0.5kg

Core Functions
Precise automatic synchronization and paralleling of generator sets
Real-time collection of two-phase three-phase voltages, frequencies, and phases, automatic adjustment of the speed and voltage of the generator to be paralleled, enabling seamless grid connection of multiple diesel generator sets without impact, phase synchronization accuracy < 1°, voltage matching accuracy ±0.25%, preventing grid connection impact from damaging the generator and grid equipment.
High-precision electrical parameter collection and measurement
Three-phase voltages, three-phase currents, active/reactive power, power factor, frequency, energy metering, imbalance monitoring, overvoltage, undervoltage, overfrequency, undervoltage, reverse power, overload protection logic.
Multi-generator load distribution control
Cooperates with the main controller to achieve equal distribution of active and reactive loads, avoiding overload of a single generator set and excessive circulating current, supports cross-current compensation, ensuring stable parallel operation of the power station.
Encoder speed collection expansion
Compatible with incremental encoders and rotary transformers for signal connection, accurately collecting engine speed and shaft position signals, used for speed closed-loop control, overspeed protection, speed fault monitoring.

Hardware Interface Configuration
Three-phase voltage/current analog input terminals: Access PT, CT secondary side signals
Encoder signal terminals: A/B/Z phases, 5V/24V encoder power supply interface
CAN bus communication interface: CANopen, communication rate 31.25kbit/s ~ 2Mbps, realizes data interaction with the main controller GPU/PPU module, supports redundant bus networking
DB25 European backplane socket: High-speed data interaction inside the rack

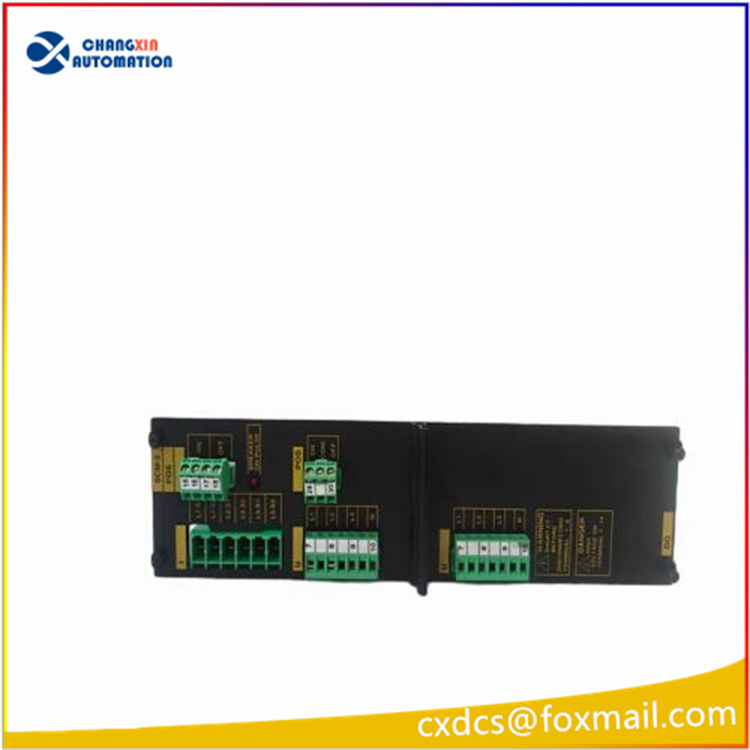

Operating, fault, and synchronization ready status LED indicators, facilitating on-site fault troubleshooting

Communication Protocols
CANopen (primary, data interaction between generator sets)
Compatible with Modbus RTU, can be connected to upper-level SCADA, PLC remote monitoring parameters and fault records
Support J1939, compatible with data exchange between diesel engine electronic control systems of ships

Typical Application Scenarios
Ship power station: Multiple generator sets for automatic paralleling, load management, black start
Land-based backup power station: Data center, hospital, mine, oil and gas field station multi-diesel generator set parallel power supply system
Distributed microgrid: Photovoltaic + energy storage + diesel generator set coordinated grid connection, power dispatching
Industrial emergency power supply: Multiple generator sets redundant power supply, automatic load shedding, reverse power protection scenarios

Compatible Models of the Same Series
SCM-1: Initial synchronous module, functionally simple, can be hardware-compatible replaced with SCM-2 (requires reconfiguration of parameters)
Matching main controller: GPU-3, PPU-3, PPU3000 series power management controller
