EATON XP-503-15-A10-A01-1V – Brief Introduction & Technical Specifications
Brief Introduction

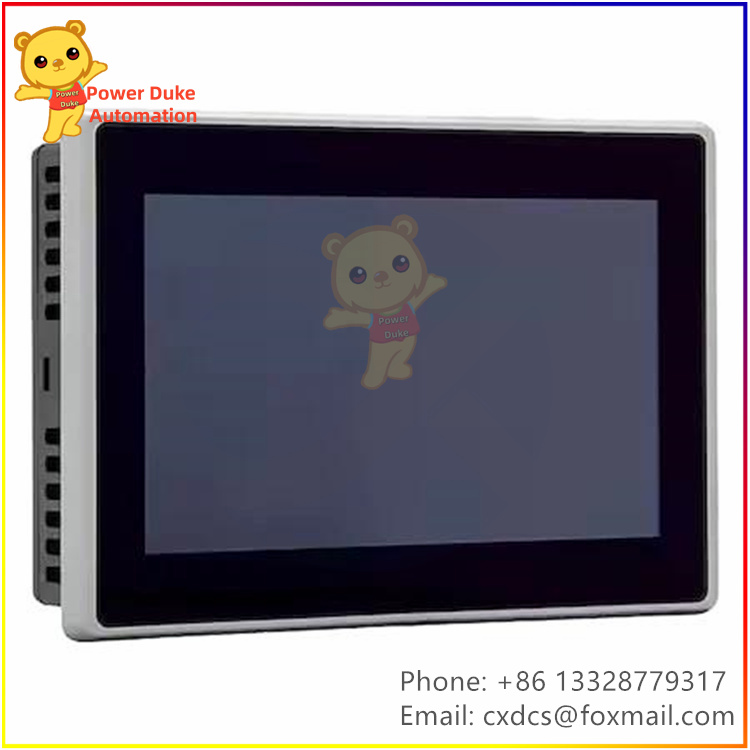

The EATON XP-503-15-A10-A01-1V is a high-performance industrial human-machine interface (HMI) touch panel belonging to Eaton’s XP503 product series, engineered for heavy-duty operation in complex industrial automation environments. It features a 15-inch large-format display with advanced touch technology and a rugged enclosure, integrating reliable data processing capabilities and versatile connectivity options. This HMI is widely applicable in power plants, petroleum chemical facilities, metallurgical equipment, and large-scale automated production lines, enabling intuitive operation control, real-time data visualization, and seamless communication with PLCs and other control devices.
Technical Specifications
Brand & Model
Brand: EATON Corporation;
Model: XP-503-15-A10-A01-1V.
Classified as a large-size industrial HMI touch panel, it is designed with enhanced environmental adaptability and operational stability. The model suffixes carry specific meanings: “15” indicates a 15-inch display, “A10” denotes the standard configuration of communication interfaces, “A01” refers to the power supply module type, and “1V” represents the optimized firmware version for voltage stability control. The product is supplied as new with full packaging and meets Eaton’s strict industrial quality standards.
Physical Specifications
Dimensions: The unit adopts an industrial-grade large-format form factor, with outer housing dimensions of 390 mm (15.3543 inches) in width, 280 mm (11.0236 inches) in height, and 55 mm (2.1654 inches) in depth. The cutout installation dimension is 375 mm (14.7638 inches) × 265 mm (10.4331 inches), complying with standard large-size HMI mounting norms, facilitating stable integration into control cabinets and equipment control stations.
Weight: The net weight of the product is 4.8 kg (10.5822 lbs), with a rugged enclosure design that ensures structural stability and impact resistance, suitable for fixed installation in industrial on-site environments.
Display Core Specifications
Equipped with a 15-inch color TFT-LCD display, the HMI delivers high-definition visual feedback with a native resolution of 1920×1080 pixels (FHD), supporting a 16.7 million color gamut for clear and detailed data presentation. It adopts projected capacitive touch technology, enabling multi-touch gestures (such as zoom and swipe) for intuitive operation, with a scratch-resistant and anti-glare tempered glass surface that enhances readability in bright industrial environments. The LED backlight has a rated service life of 50,000 hours, ensuring long-term stable operation.
Performance & Software
Powered by a 1.2 GHz dual-core ARM Cortex-A9 processor, the device achieves fast data processing and smooth screen transitions, paired with 1 GB DDR3 RAM and 8 GB internal storage for efficient program execution and data storage. It supports Eaton’s dedicated Galileo configuration software, enabling flexible project design, logic programming, and remote maintenance. The optimized firmware (suffix “1V”) enhances voltage stability control, ensuring reliable operation under fluctuating power supply conditions in industrial sites.
Electrical Specifications
Power Supply: It supports a wide-range DC power input of 18 VDC to 36 VDC (nominal 24 VDC), with a typical power consumption of 25 W and a maximum power consumption of 35 W. The power circuit is integrated with overvoltage, undervoltage, short-circuit, and reverse polarity protection functions, complying with industrial power supply safety standards. The “A01” power module ensures stable power conversion even in harsh power grid environments.
Operating temperature range:
Supports a wide operating temperature range (specific range may vary by model, but usually meets the requirements of industrial environments), ensuring stable operation in extreme environments.
Application scenarios
Production line monitoring: Graphically presents production processes and process data, real-time monitors equipment status, improving production efficiency.
Automation equipment control: Displays equipment operating parameters, supports start-stop operations and parameter settings, achieving automated control of equipment.
Energy and building management: Monitors energy consumption, equipment operation status, and triggers alarm prompts, helping users achieve effective energy management and intelligent control of buildings.
Industrial control cabinet: As a control and visualization platform for PLCs or remote I/O, simplifying the design and operation of the control system.
Special industries: Such as packaging, food, textiles, mechanical processing, etc., supporting local control and remote monitoring, meeting the needs of different industries.
