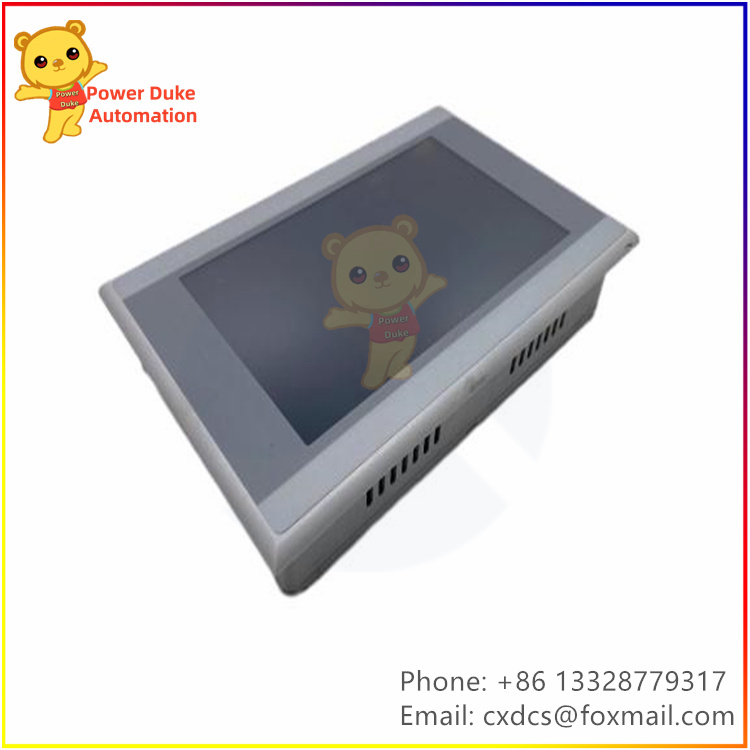

EATON XV-102-B6-35TQR-10-PLC Human-machine interface – Controller panel

The core information of the Eaton XV-102-B6-35TQR-10-PLC controller panel is summarized as follows:
I. Basic Parameters
Power Supply: 24V DC, conforming to common industrial power supply standards.
Display Screen: 12.1-inch TFT color touch screen, resolution 800×600 pixels (SVGA), capable of displaying 65536 colors or 256 colors, providing a clear visual experience.
Touch Control Technology: Resistive touch screen, supporting 4-line system, stable and reliable operation.
Protection Level: Panel reaches IP65 (front), suitable for dust-proof and water-proof harsh industrial environments.

Interfaces and Communication
Built-in Interfaces:
1 Ethernet 100Base-TX/10Base-T interface, supporting network communication.
1 RS232 serial interface, for traditional equipment connection.
1 PROFIBUS/MPI interface, supporting industrial fieldbus communication.
2 USB host interfaces and 1 USB device interface, supporting data transmission and device expansion.
Communication Protocols: Supports Profibus, MPI and other industrial standard protocols, enabling seamless connection with PLCs, sensors, drivers, etc.

Storage and Expansion
Memory: DRAM (operating system, program and data storage) 64MB, NVRAM (retained data) approximately 32KB.
External Storage: 2 Compact Flash I/II type card slots for operating system, program and data storage.
Real-time Clock: Built-in non-replaceable CR2032 soldered battery, providing long-term time support.
IV. Functional Features
HMI-PLC Function: Supports PLC function modification, allowing users to install licenses to achieve control, monitoring and programming integration.
Operating System: Based on Windows CE (requires license), providing a stable operating environment.
Visual Software: Supports Galileo EPAM, XSOFT-CODESYS and other programming and visualization platforms, providing an intuitive graphical programming interface.
Remote Access: Through GALILEO WebVisu function, users can remotely monitor and operate the touch screen from mobile devices.

Application Scenarios
Production Line Monitoring: Graphically presents production processes and process data, real-time monitoring of equipment status.
Automation Equipment Control: Displays equipment operating parameters, supports start-stop operations and parameter settings.
Energy and Building Management: Monitors energy consumption, equipment operation status, and triggers alarm alerts.
Industrial Control Cabinet: As a control and visualization platform for PLCs or remote I/O.
Special Industries: Such as packaging, food, textiles, mechanical processing, etc., supporting local control and remote monitoring.

 Physical Characteristics
Shell Material: Anodized metal shell and front panel, sturdy and durable.
Heat Dissipation: Power consumption 24W, heat dissipation design ensures stable operation.
Size and Weight: Weight approximately 4.1 kilograms. Specific dimensions need to be referred to the product manual.
Installation Method: Embedded installation, suitable for compact control cabinets.
