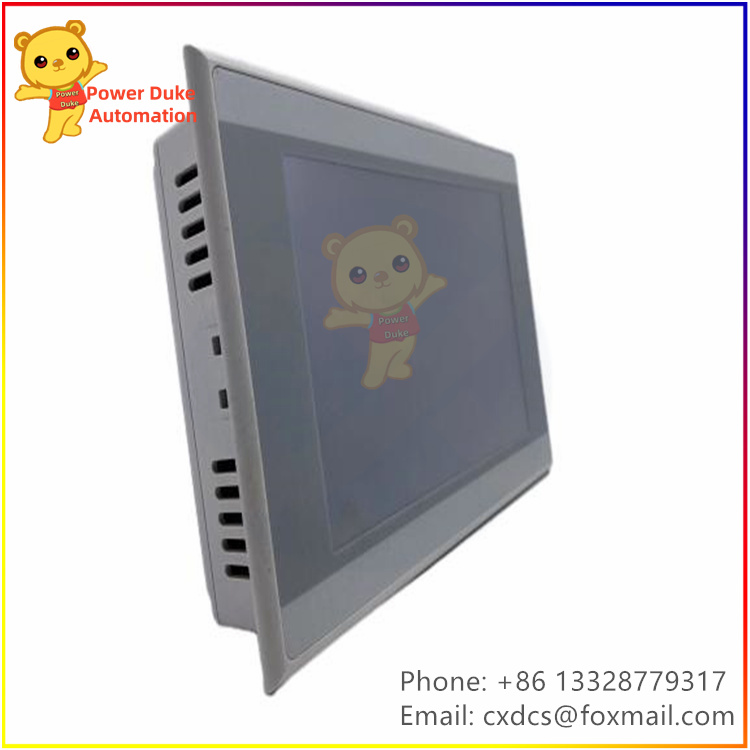

EATON XVS-440-57MPI-1-10 Operator Panel 24 volt DC touch screen

The Eaton XVS-440-57MPI-1-10 is a high-performance Human Machine Interface (HMI) device launched by Eaton. The following is a detailed introduction to this product:
I. Main Features
Display Screen:
Type: Color TFT touch screen
Size: 12.1 inches (There might be different interpretations regarding the diagonal size of the screen, but the mainstream description is 12.1 inches)
Resolution: SVGA, 800×600 pixels
Color Count: Adjustable, supports 65536 colors or 256 colors
Contrast: Typically 350:1
Brightness: Typically 350 cd/m²
Backlighting: 2 CCFLs, can be dimmed via software, with a typical lifespan of 50,000 hours
Touch Technology:
Type: Resistive touch
System: 4-wire system
Interfaces and Communications:
Built-in Interfaces: 1 Ethernet 100Base-TX/10Base-T interface, 1 RS232 interface, 1 PROFIBUS/MPI interface, 2 USB host interfaces, 1 USB device interface
Communication Protocols: Supports various industrial standard communication protocols such as Ethernet, RS232, Profibus/MPI
Storage and Expansion:
Memory: DRAM (operating system, programs, and data storage) 64MB, NVRAM (retained data) approximately 32KB
External Storage: 2 Compact Flash I/II type card slots for operating system, programs, and data storage
Operating System and Software:
Operating System: Windows CE (requires license)
Visualization Software: Supports programming and visualization platforms such as Galileo EPAM, XSOFT-CODESYS, etc.
PLC Programming Software: XSOFT-CODESYS
Other Features:
Protection Grade: Panel reaches IP65 (front), suitable for harsh industrial environments
Heat Dissipation: Power consumption 24W, designed with heat dissipation mechanism
Real-time Clock: Built-in non-replaceable CR2032 soldered battery, providing long-term time support
Shell Material: Anodized metal shell and front panel, sturdy and durable

Functions and Applications Function:
Supports multiple communication protocols and can seamlessly connect with PLCs, sensors, drivers and other devices.
Optional integrated PLC functions can meet the different needs of users.
Provides an intuitive operation interface and powerful functions, facilitating users to monitor and operate the equipment.
Application scenarios:
Widely used in industrial automation and control systems, such as in mechanical manufacturing, petrochemicals, power energy, transportation and other fields.
Can help users achieve functions like remote monitoring, fault diagnosis and data analysis of equipment, improving production efficiency and the reliability of equipment operation.
