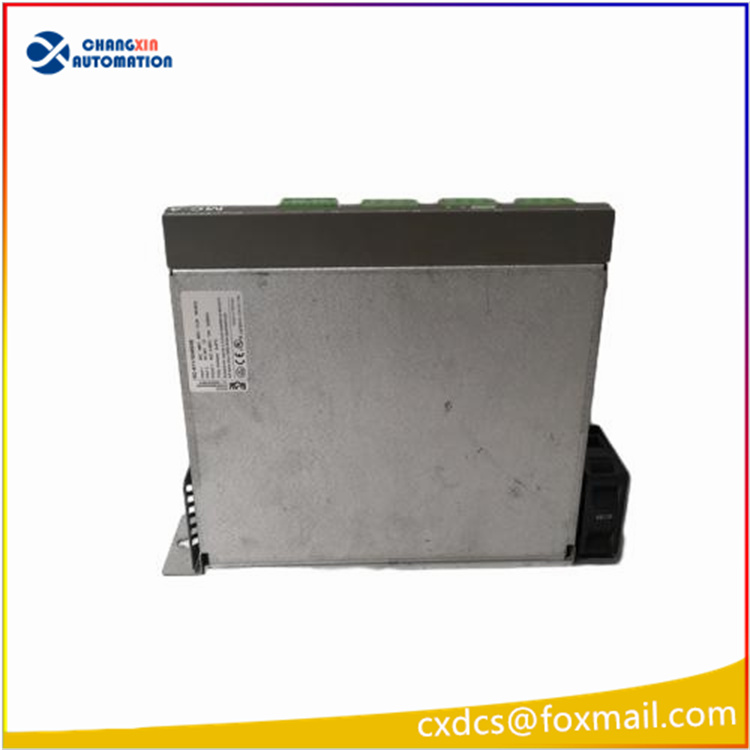

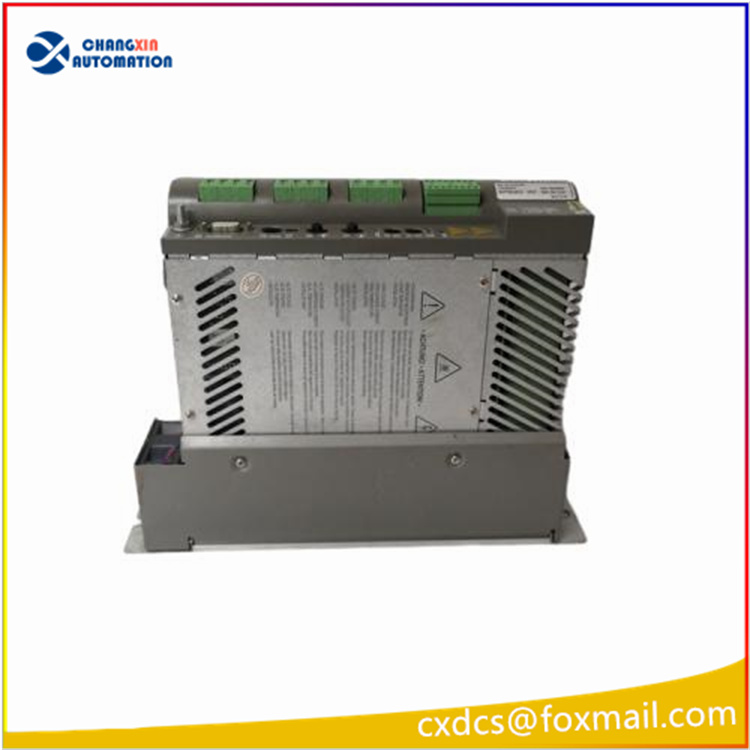

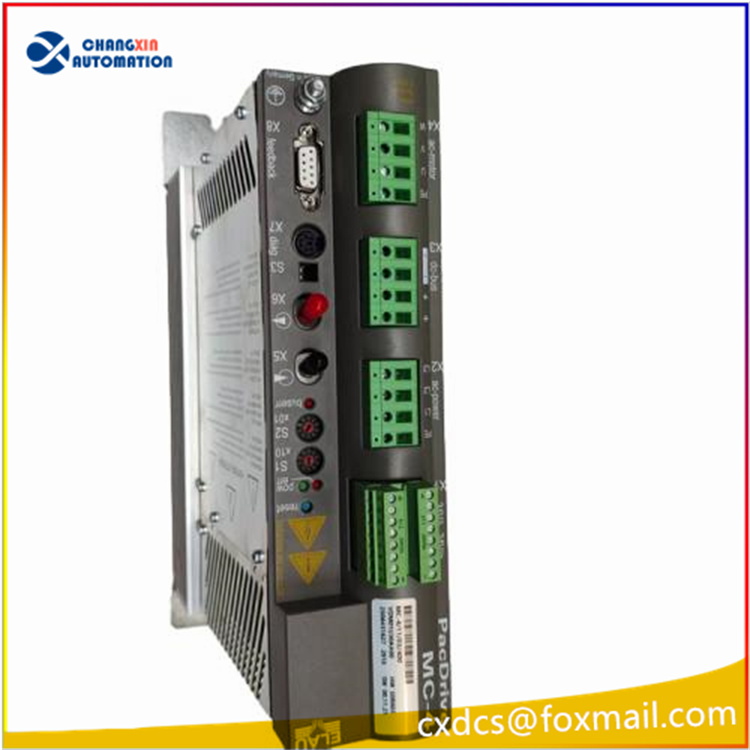

ELAU MC-4/11/10/400 Servo Drive Full Technical Datasheet

1. Brand & Model Identity

• Brand: ELAU (Schneider Electric PacDrive M Motion Platform)
• Model: MC-4/11/10/400, OEM part code: VDM01D10AA00
• Product Type: 4th generation integrated single-axis servo drive (built-in rectifier, power inverter & triple-loop regulator)
• Production Status: Discontinued OEM production, critical spare part for packaging & converting machinery
• Matched Motors: ELAU SM / SR series 400V medium-heavy duty synchronous servo motors

2. Model Code Breakdown

1. MC-4: 4th-gen PowerDrive integrated drive hardware platform
2. 11: Standard power frame architecture for 400V high-power lineup
3. 10: Rated continuous output current = 10 Arms
4. 400: 3-phase 380–480V industrial mains voltage class

3. Core Electrical Specifications

Mains Power Input

• Main supply: 3-phase AC 380V (-10%) ~ 480V (+10%), frequency 48–62Hz
• Control supply: DC 24V (-15% / +25%), max 1A draw, control board power ≈12W
• DC bus nominal voltage: DC 530–680V, internal bleeder resistor for regenerative energy absorption

Motor Output Performance

• Continuous rated output current: 10 Arms
• Peak overload current: 25 Arms (250% short-time overload, 1-second duty cycle)
• Compatible motor power range: 4.0kW ~ 7.5kW 400V ELAU SM/SR servo motors
• PWM carrier frequency: Base 8kHz, adjustable up to 20kHz for low-noise low-speed running
• Output frequency range: 0–600Hz, compatible with high-speed spindle servo motors
• Output voltage: 0–480V AC 3-phase sine wave

Control Architecture

1. Absolute / relative position positioning mode
2. Variable speed regulation mode
3. Torque-limited tension control mode

   Auto motor parameter recognition via motor electronic nameplate, no manual tuning required
