ELAU PMC-2/11/08/000/01/03/00/00/00 Integrated Positioning Servo Drive Controller Complete Technical File
I. Brand and Product Positioning
Brand: ELAU (Schneider’s early PacDrive S generation platform, earlier than MC-4+C200/C400 architecture)
Category: Single-axis integrated positioning servo controller (combination of positioning PLC logic and power drive three-loop control in one integrated unit, capable of independent single-axis operation without additional host computer)
Original Factory Condition: Already discontinued, old packaging, printing equipment core replacement spare parts
Compatible Motors: ELAU SB series permanent magnet synchronous servo motors (SB070, SB105, SB145, etc., 400V models)

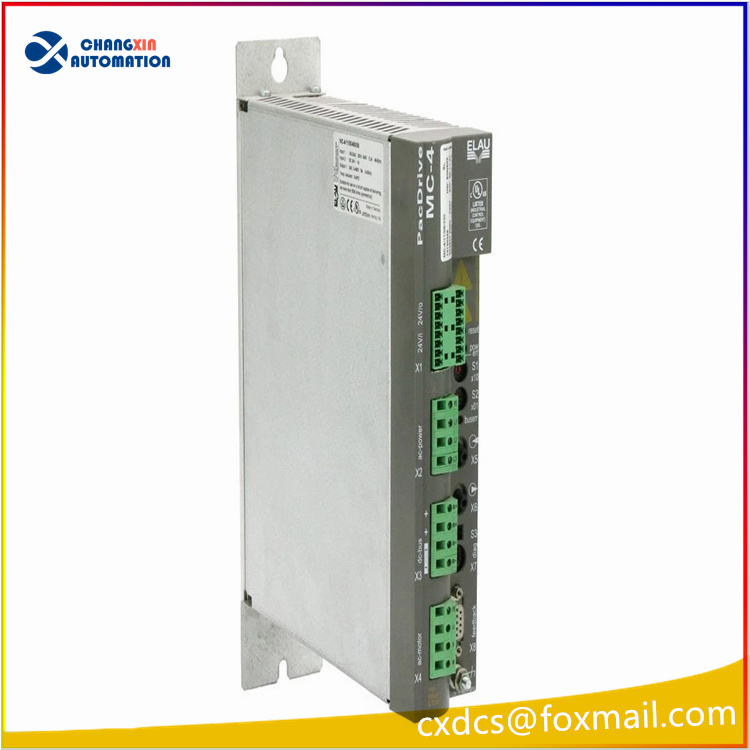

PMC-2 Drive Appearance
Complete 9-segment Model Number Decoding by Each Digit (Original Factory Standard Coding Rules) PMC-2 / 11 / 08 / 000 / 01 / 03 / 00 / 00 / 00
PMC-2: A series of integrated positioning servo controllers
11: Hardware power architecture group (400V high-power hardware framework)
08: Continuous rated output current 8 Arms
000: Voltage / Protection / Brake configuration
The first digit 0 = C = Three-phase AC 400V input; the second digit 0 = D = IP20 protection; the third digit 0 = E = Built-in discharge braking resistor
01: POS terminal I/O expansion module → 01 = ANA-1 ±10V analog input module
03: MC encoder communication expansion module → 03 = IKA-1 main encoder follow-up synchronization module (for electronic spindle / fly-cutting dedicated)
00: Basic configuration of bus protocol (without additional fieldbus hardware)
00: Safety emergency stop / Hardware circuit without special customization
00: Basic firmware standard version, without special process customization program package
Core Electrical Performance Parameters
1. Power Supply Input
Main power supply: Three-phase AC 342–528V (standard 400V industrial grid)
Control circuit power supply: DC 24V, rated 2A power supply
DC bus voltage: DC 530–680V, built-in braking discharge resistor
2. Motor Output Power Capacity
Continuous rated output current: 8 A rms
Peak overload current: 16 A rms (200% short-term 1-second overload)
Suitable for SB servo motor power range: 2.2–3.5kW 400V winding type
