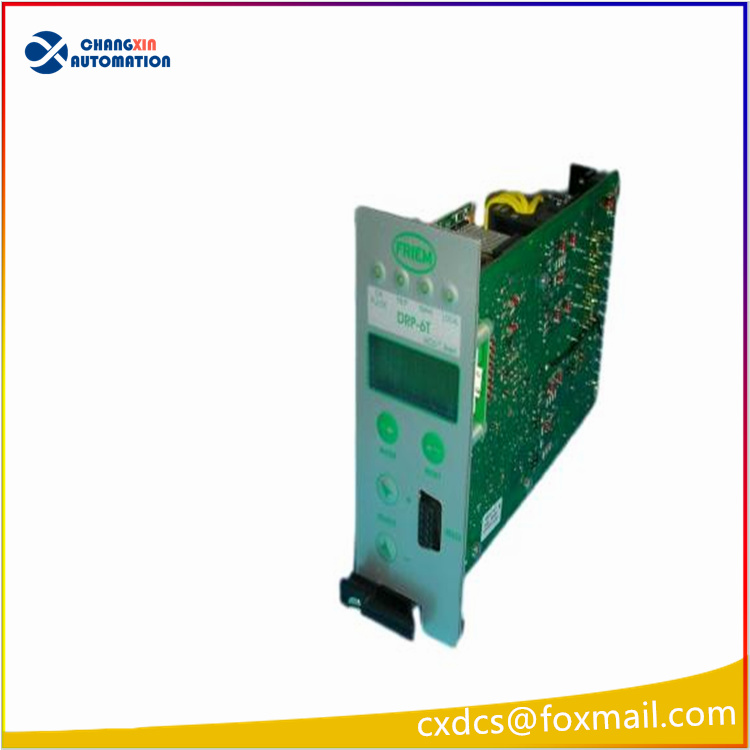

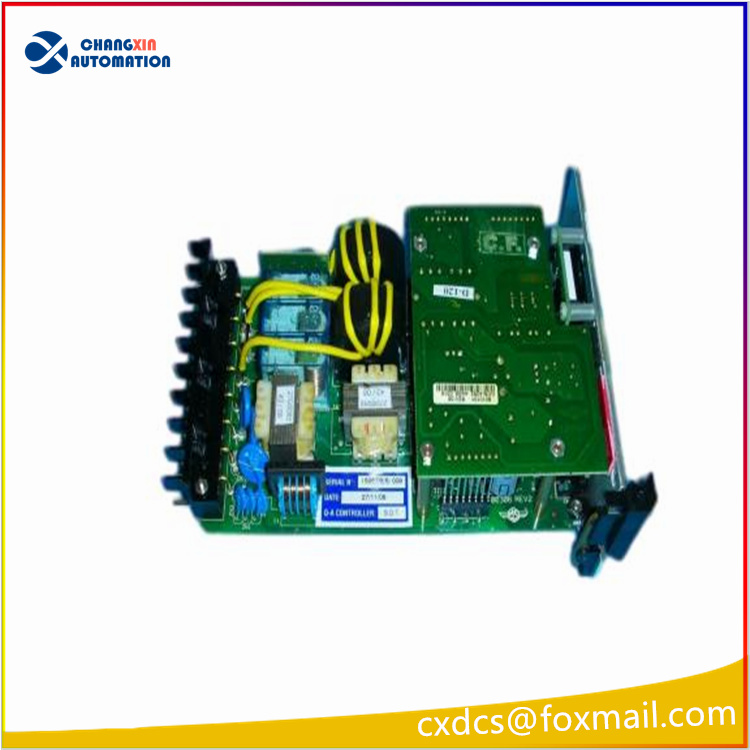

1. Core electrical parameters (DRP-6T-H standard specification)
Rated power: 6kW Input
Three-phase AC: 380~480V, 50/60Hz
Wide-range grid adaptation, voltage fluctuation resistance
DC output
Voltage regulation range: DC 0~120V, continuously adjustable
Continuous rated current: 20A; Peak short-time 40A
Power factor ≥ 0.99, conversion efficiency 96%~98%
Control configuration (-H enhanced feature)
Standard main control board MC22-T digital controller
Support for 0–10V/4–20mA analog setpoint, RS485 Modbus communication
-H version enhances overcurrent, overvoltage, overtemperature, and water shortage interlock protection, with self-check and fault code diagnosis
Structure and environment
Protection level: IP20 (installed in the cabinet)
Operating temperature: -20℃ ~ +50℃
Overall size: 220×100×45mm; Net weight approximately 2kg
Air-cooled cooling, modular plug-and-play design for easy replacement and maintenance
-H suffix meaning
DRP-6T: Basic 6kW star topology rectifier model
-H = Heavy duty enhanced version
Power semiconductor thyristor chip current impact resistance is enhanced
Drive circuit anti-interference is strengthened, suitable for chemical plants and electrolytic cell strong electromagnetic environment
Capacitors, resistors, etc. high-life components are upgraded, providing higher stability for 24-hour production line operation
Fault alarm circuit redundant design, suitable for unmanned operation conditions
Typical application scenarios
Seawater electrolysis for chlorine production, circulating water sterilization electrolysis power supply
Metal electroplating, anodizing, electrophoretic coating DC power supply
Semiconductor PVD/CVD deposition equipment bias power supply
Laboratory electrochemistry, corrosion testing constant current constant voltage source
Battery large-capacity formation, charging and discharging aging test
Supply and spare parts information
Original factory status: Standard production model, no suspension; Original factory delivery time 6–10 weeks
Core vulnerable spare parts:
Main control board: MC22-T (the brain of the entire machine, can be replaced separately)
Thyristor power bridge, cooling fan, buffer absorption capacitor
Alternative compatibility: The standard version of DRP-6T in the same series can be replaced by DRP-6T-H after program fine-tuning, but the lifespan in heavy-load conditions is slightly shorter
Market channels: New original equipment, refurbished second-hand available in stock, second-hand must verify the constant current and stable voltage accuracy and insulation withstand voltage
