GE 151X1235DB15SA01 Excitation System PCM Main Control Processor Module

Product Description

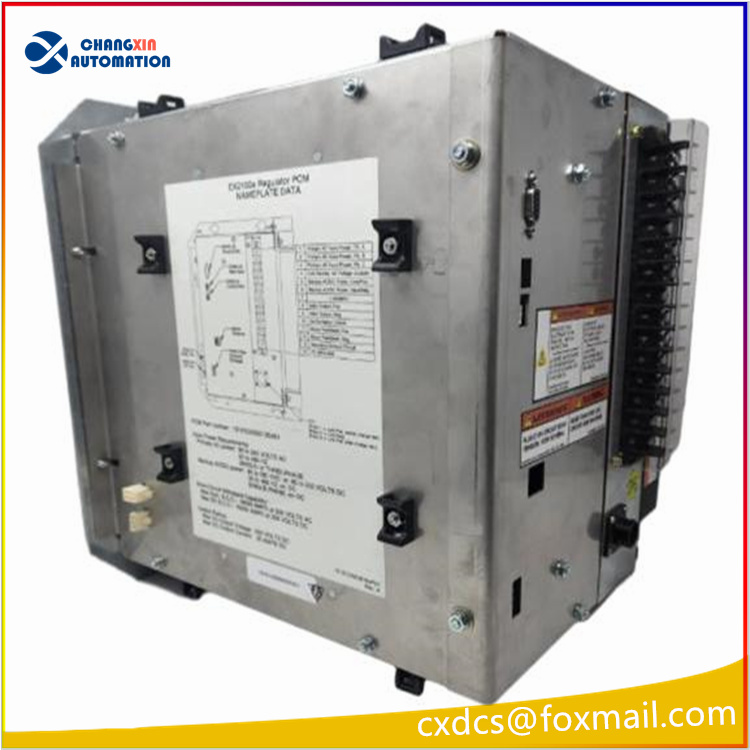

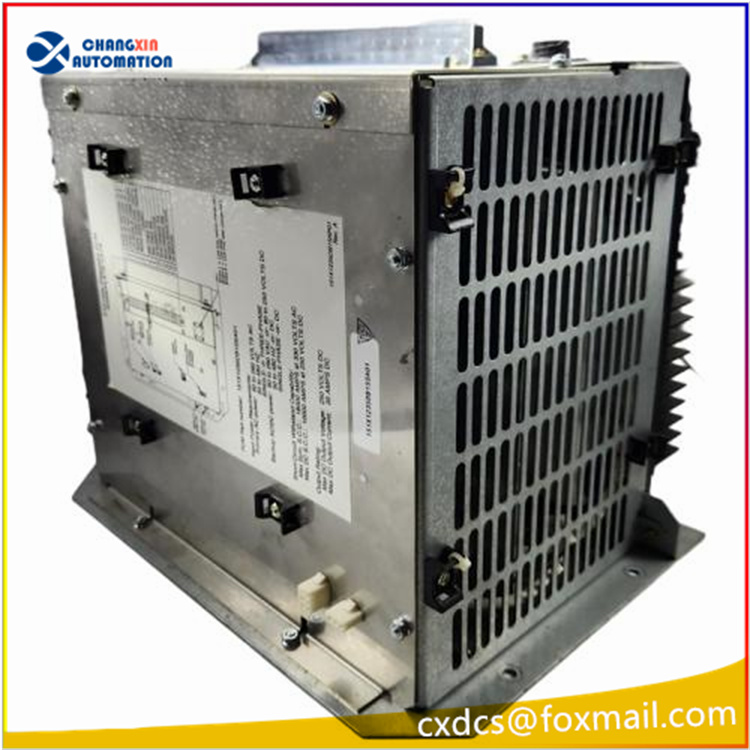

Full product name: GE EX2100e Excitation System PCM Processor Control Module, part of the GE 151X series, serves as the core control card for the GE EX2100/EX2100e synchronous generator excitation control system. Featuring a modular plug-in backplane architecture, it integrates high-speed computing chips, multiple network interfaces, and analog signal acquisition circuits, providing full functionality including excitation regulation, logic control, communication, and fault diagnosis. It is the central control unit for excitation systems in thermal and hydroelectric power generation units, compatible with GE gas turbine control hardware platforms. Originally manufactured by U.S.-based GE, this module is a component of the FANUC-GE industrial automation product line.

Technical Specifications
Electrical Power Supply: Dual AC input options—AC110/120V or AC220/240V; auxiliary DC24V circuit; built-in onboard power conversion circuitry
Communication Interfaces: Dual industrial Ethernet ports and RS485; supports Modbus TCP, OPC-UA, and IEC60870 industrial protocols
Analog Channels: 4–20mA current input and 0–10VDC voltage output, compatible with excitation power unit sampling circuits
Environmental Conditions: Operating temperature -40°C to +70°C; storage temperature -55°C to +85°C; protection rating IP30; suitable for high-temperature and dusty environments in power plants
Physical Dimensions: 172mm × 102mm × 156mm; net weight 2.78kg; standard CPCI rack-mounted card format
Hardware Performance: Onboard 1MB RAM; redundant hardware self-diagnosis; overvoltage, overcurrent, and short-circuit hardware protection; online fault recording capability
Installation Method: Direct insertion into EX2100e rack backplane slot; standard 10-slot chassis configuration

Application Areas
Thermal Power Industry: Main controller for excitation cabinets in steam turbine generator sets; excitation control for captive power plant synchronous generators
Hydropower Industry: Excitation control devices for hydro turbine generator sets; automation upgrades for small and medium-sized hydropower stations
Gas Turbines: Control card配套 for GE heavy-duty gas turbine generator EX2100e excitation systems
Nuclear & Distributed Energy: Auxiliary generator control in nuclear power plants; biomass power generation; grid-connected photovoltaic power generation units
Industrial & Mining Captive Power Plants: Spare parts replacement for excitation systems in steel mills, chemical plants, and coal mines
