Product Description

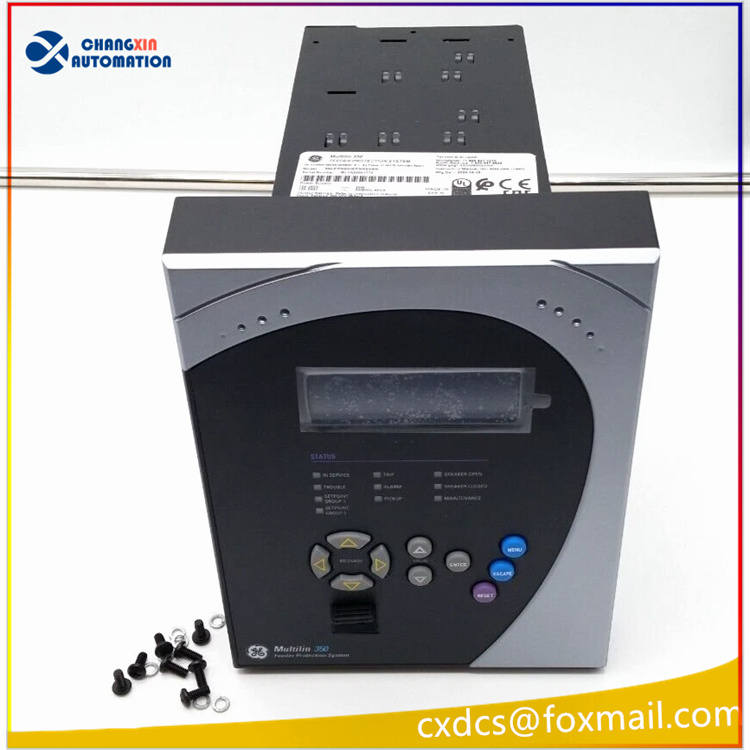

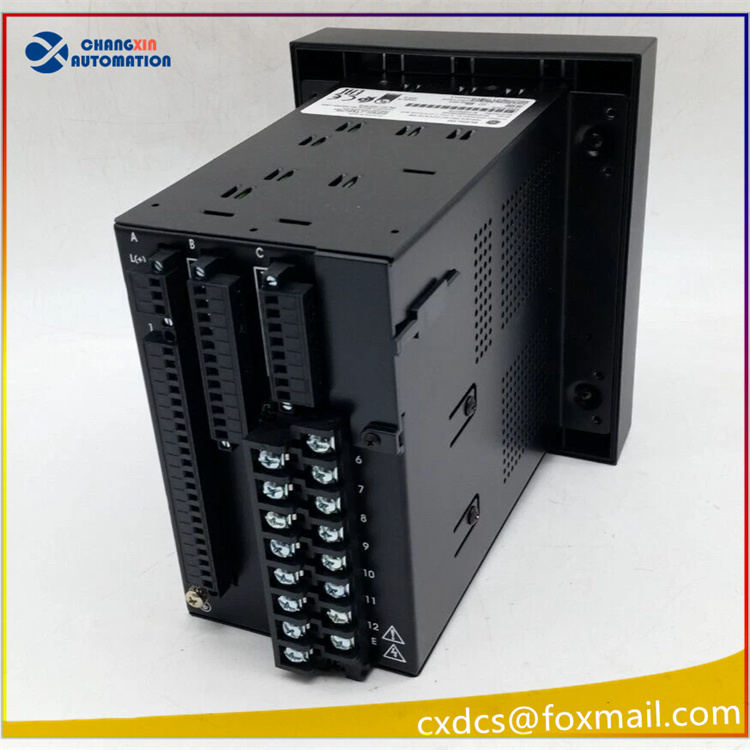

GE 350-EP0G0HEENNSNNN is a digital feeder protection relay of the 3 Series SR3 platform produced by General Electric (GE Multilin, now part of GE Vernova) in the United States. The core feature of this model is that all overcurrent protection functions are set to “None” (absent), thus it is essentially a distribution protection device with core functions including voltage monitoring, frequency monitoring, arc flash detection, and circuit breaker control, rather than a traditional overcurrent protection feeder relay.
This relay is equipped with a dual-processor architecture. The main processor is Freescale MPC5554 (32-bit, responsible for measurement and output control), and the communication processor is Freescale MPC520B (32-bit, responsible for Ethernet communication). It samples 32 times per power cycle and is equipped with a 12-bit A/D converter, enabling high-precision measurement of electrical quantities such as voltage, frequency, and power factor. The relay provides 10 digital inputs and 7 digital outputs (2 Form A + 5 Form C), supports various communication methods including USB, RS485, RJ45 Ethernet, and fiber optic Ethernet, is compatible with mainstream industrial protocols such as Modbus RTU/TCP, DNP 3.0, IEC 60870-5-103/104, IEC 61850 GOOSE, OPC-UA, and supports PRP and HSR network redundancy protocols.
Technical Specifications
Processor: Dual processor architecture, Freescale MPC5554 (32-bit, measurement + output control) + Freescale MPC520B (32-bit, Ethernet communication)
Sampling frequency: 32 samples per power cycle (32 points per cycle)
A/D conversion: 12 bits
Phase current input: P0 configuration, no CT, 1A or 5A configurable, range 0.02 to 20 times CT, primary CT 1 to 6000A
Ground current input: G0 configuration, no CT, 1A or 5A configurable, range 0.02 to 20 times CT
Sensitive ground current: 1A or 5A, range 0.002 to 3 times CT, primary CT 1 to 600A
Voltage input: source VT, 0.12 to 65kV / 50 to 220V, VT secondary 50 to 240V, VT ratio 1 to 5000
Power supply: 125 to 250V DC or 120 to 240V AC (wide range)
Power consumption: nominal 15W (maximum 20W), 20VA (maximum 28VA)
Digital input: 8 channels, selectable threshold 17/33/84/166 VDC, optocoupler isolation
Digital output: 7 channels (2 Form A + 5 Form C)
Communication interface: USB 2.0 (front panel), RS485 (rear panel), RJ45 Ethernet, fiber Ethernet (MTRJ)
Communication protocol: Modbus RTU, Modbus TCP/IP, DNP 3.0, IEC 60870-5-103, IEC 60870-5-104, IEC 61850 GOOSE, OPC-UA
Redundancy protocol: PRP (IEC62439), HSR
Human-machine interface: 4-line × 20-character LCD, 10 front panel LED indicators
Event recording: 256 entries, time accuracy 1ms
Fault recording: longest 192 cycles, 32 points per cycle
Clock synchronization: IRIG-B
Operating temperature: -40°C to +60°C
Storage temperature: -40°C to +85°C
Humidity: maximum 95% (non-condensing, 55°C)
Altitude: maximum 2000m
Protection level: IP54 (front panel), IP10 (rear panel)
Installation method: fully pull-out type (Drawout), 35mm DIN rail
Certification: CE, UL, CSA, TUV
Setting software: EnerVista SR3 (supports full Chinese interface)
Weight: non-pull-out net weight 2.9kg, pull-out net weight 3.9kg
