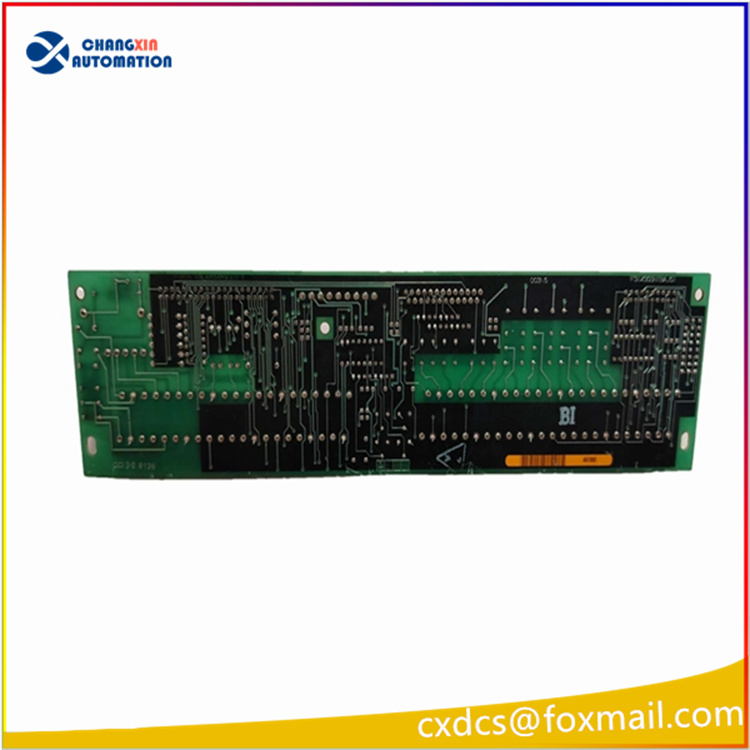

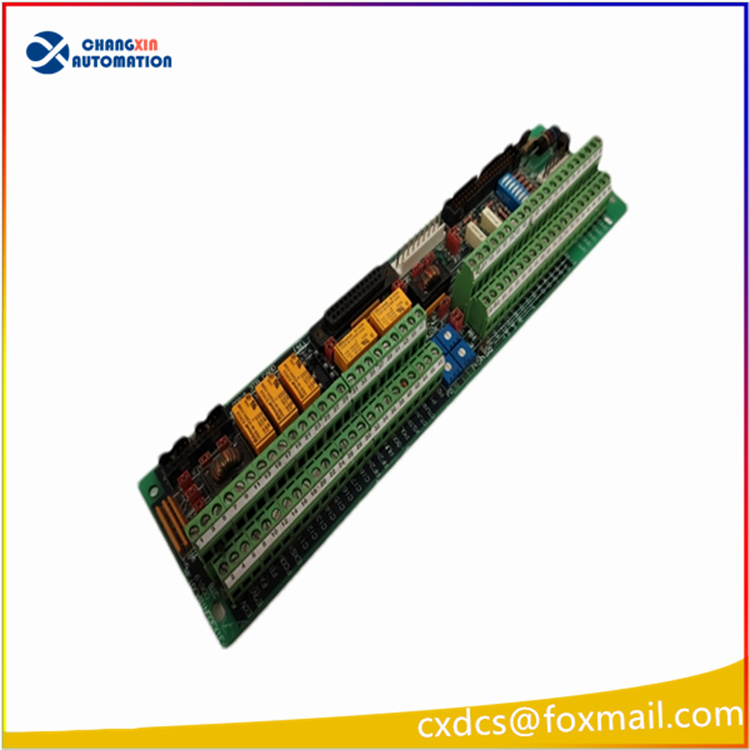

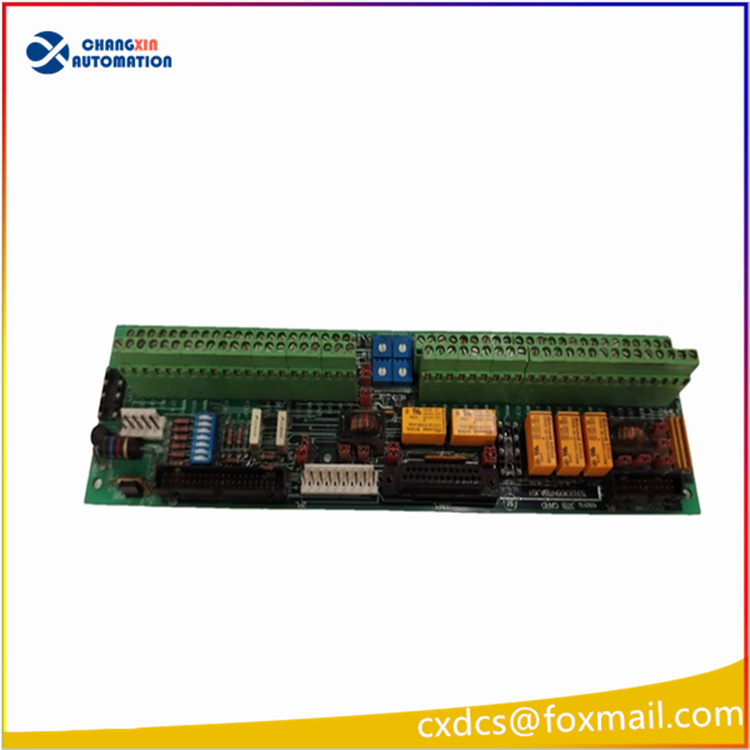

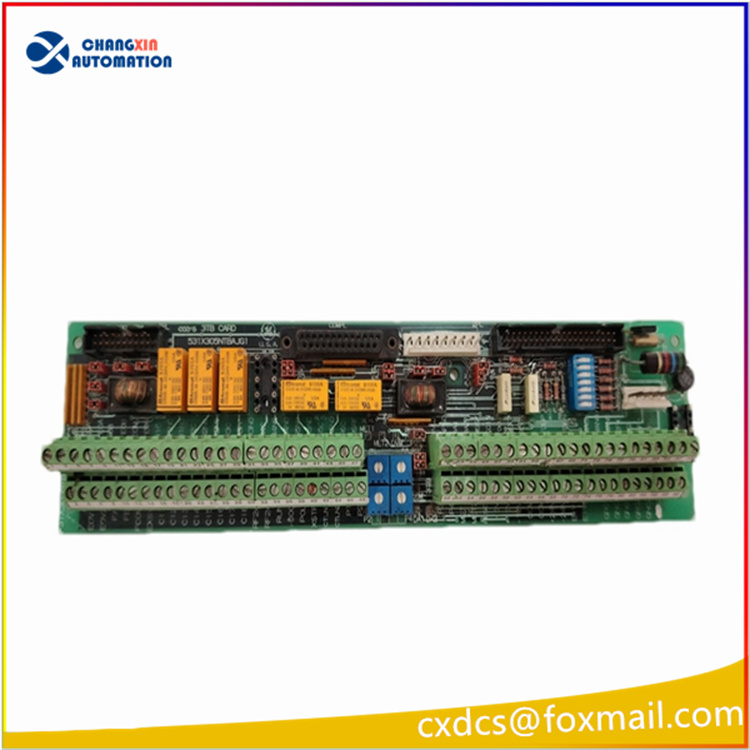

GE 531X305NTBAJG1 (NTB/3TB Drive Excitation Terminal Interface Board)

I. Basic Information
Brand: GE (now GE Vernova)
Product Type: Multi-functional external terminal board for drive/commutation system (NTB/3TB Terminal Board)
Compatible Systems: GE AC2000, DC2000 series DC speed control drives, generator excitation control systems
Version Description: The suffix “JG1” represents the hardware J version. Compatible models in the same series: 531X305NTBANG1, 531X305NTBAPG1. Different versions cannot be directly interchanged.
Product Status: The original factory has discontinued production. It is only available for disassembly, refurbishment, and inventory spare parts circulation.

Core Functions
External signal connection hub
Centralized connection of speed encoders, tachogenerators, analog setpoints, current and voltage feedback, digital start-stop interlock, emergency stop fault signals, achieving electrical isolation and connection between the main control drive board and on-site equipment.
Onboard multi-channel isolated power output
Stable voltage output: 5VDC, ±15VDC (for encoders and analog circuits)
Unstable voltage output: 24VDC, 120VAC peripheral power supply
Onboard jumpers can switch the 5V/15V encoder power supply type
7-channel relay analog output
A-type / C-type relay contacts, rated 120VAC, used for fault alarms, fans, contactors, excitation switching, and other peripheral interlock control.
Analog signal calibration
Built-in 4 adjustable potentiometers for scaling of speed, setpoint, feedback small signal ranges, and zero point offset calibration.
Debugging communication interface
Integrated RS232C, RS422 serial ports for uploading/download of drive parameters, and upper-level debugging and monitoring.

Key Electrical Parameters
Operating Temperature: -20℃ ~ +70℃, Storage: -40℃ ~ +85℃
Protection Grade: IP20 (installed in control cabinet)
Onboard fuse: Built-in two fuses for power short circuit protection
Contact Capacity: Relay 120VAC resistive load
Installation Method: Rack slot installation, gold-plated edge connectors connect with the main control board of the drive

Typical Application Scenarios
Excitation speed control systems for power plant steam turbine generators, hydroelectric generating units
GE high-power AC transmission drives for steel mills rolling mills, conveyor belts, large mine hoists
High-power DC motor speed control systems for papermaking, mining, ports
