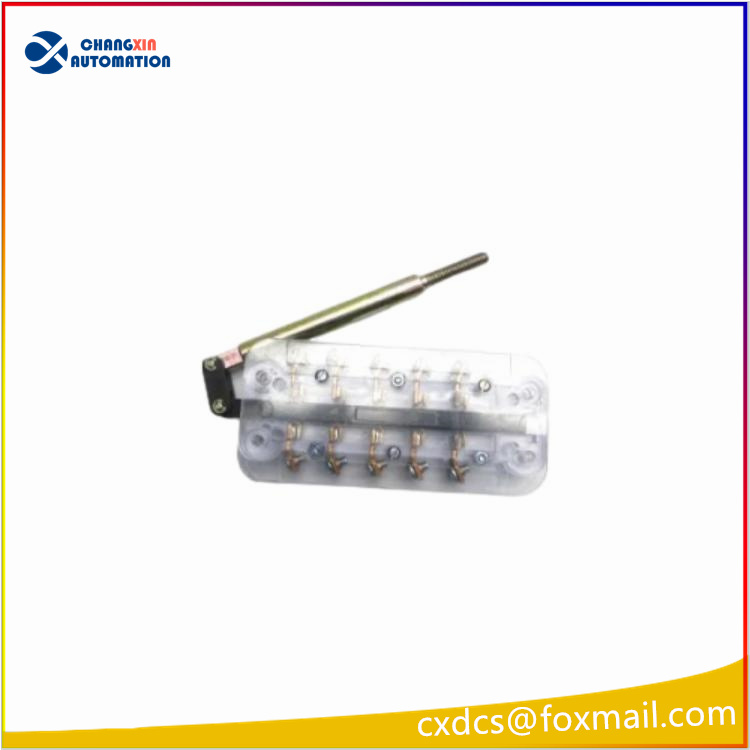

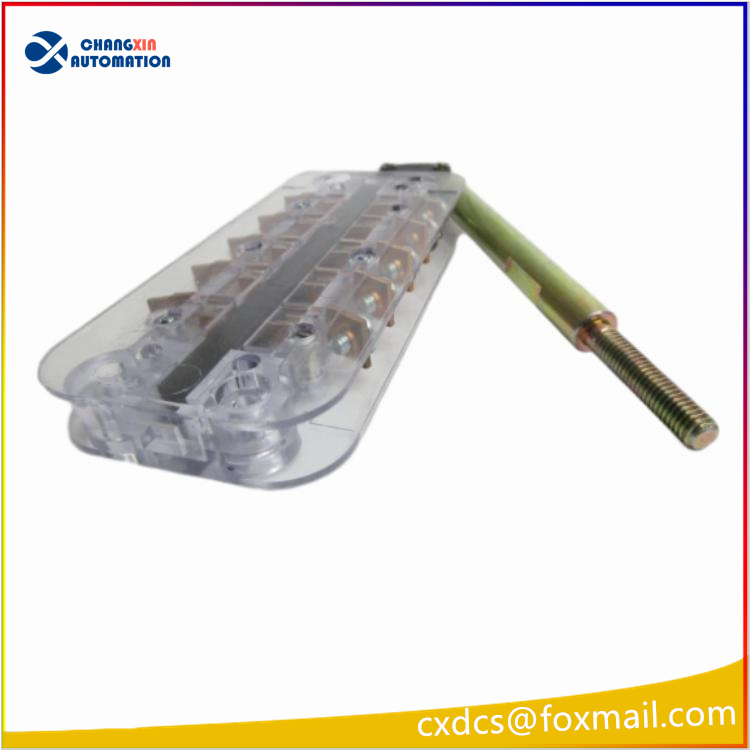

GE 55C679816G6 Electrical Interlock Assembly

Product Description

GE 55C679816G6 is an Interlock Block Assembly for high-voltage switchgear, a legacy GE high voltage control component and discontinued by original manufacturer. It adopts mechanical linkage structure for circuit interlocking with 5 normally closed contacts, enforcing operation sequence to avoid incorrect operation of high voltage switches and cabinet doors, protecting personnel and equipment. Panel-mount design, integrated into high voltage control cabinets and breaker operating mechanisms as spare part replacement for old GE high-voltage equipment. Replacement part: 55C679809G6RP.

Specifications

• Model: 55C679816G6
• Product Type: Electrical Interlock Assembly
• Contact Configuration: 5 NC (5 Normally Closed contacts)
• Mounting Type: Panel Mount
• Application: High Voltage Control System
• Product Status: Discontinued (Legacy spare part)
• Replacement Part: 55C679809G6RP
• Weight: approx. 0.145 kg (0.32 lb)
• Construction: Industrial mechanical linkage assembly

Applications

1. Safety interlock for GE high-voltage switchgear and medium voltage breaker operating mechanism
2. Mechanical interlock protection between cabinet door and switches in power plant high voltage control cabinets
3. Anti-misoperation circuit for high-voltage power distribution systems in petrochemical and mining industries
4. Maintenance and spare parts replacement for legacy GE high-voltage equipment
5. Safety interlock retrofit of primary equipment in power grid substations

Series Models

55C679816G1, 55C679816G3, 55C679816G6
