GE IC660BCM501 Genius Bus Handheld Monitor

I. Basic Material Information
Brand: GE Fanuc (Emerson)
Model: IC660BCM501
Usage: Specifically designed for the IC660HHM501 Genius handheld bus debugging monitor, including an AC power adapter + built-in battery charger
Compatible systems: GE Genius distributed I/O bus, Series 90-30/90-70 PLC system
Original factory production: Only includes a simple safety instruction page, no complete paper operation manual. The official materials are in English electronic format.
 Core Electrical Parameters
Input Specifications: 115V/230V AC 50/60Hz, with voltage dial switch on the body
Output Interface: DC round-head DC plug, for HHM handheld machine power supply + built-in lithium battery charging
Charging Characteristics: Shortest 15-minute fast charging, after full charge, it can support offline debugging of the Genius bus handheld machine
Environmental Parameters: Working temperature 0℃～+50℃, industrial wide temperature design, indoor cabinet / on-site local use
Protection: Plastic shell insulation, short-circuit, overcurrent hardware protection

Supporting Equipment and Core Function

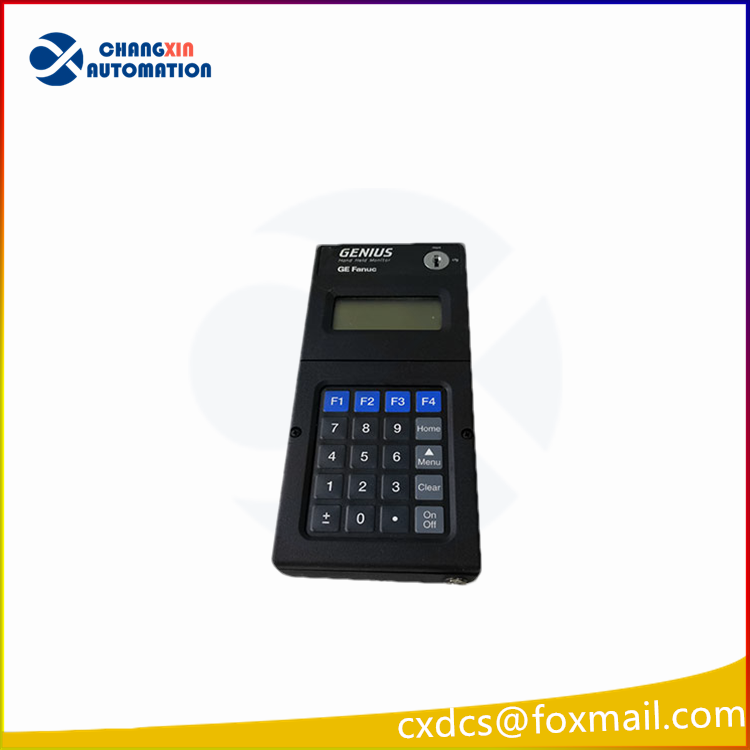

Companion Host: IC660HHM501 Genius handheld bus debugger
Can be disconnected from PLC, computer, directly connected to Genius field bus to achieve:
Bus node scanning, I/O station address configuration, fault diagnosis
Real-time monitoring of DI/DO, analog channel status, bus communication error troubleshooting
Setting Genius bus redundancy parameters, modifying remote I/O module configuration
Two major functions of BCM501
On-site AC power supply: Continuous power supply for handheld machine during long-term online debugging
Built-in battery charging: Charging the internal backup lithium battery of HHM501 to ensure offline mobile debugging use
Note: Even when using AC power, the handheld machine must be equipped with a built-in battery to be able to start and run normally

Official Supporting Manual Description
Complete User Manual Number: GEK-90486 (Genius I/O System Communication Manual) + HHM501 Handheld Monitor Operating Manual
Manual Contents
BCM501 adapter wiring, voltage level setting, charging specifications
HHM handheld machine bus wiring, configuration mode / monitoring mode operation methods
Genius bus node fault troubleshooting, I/O parameter setting steps
Multi-language settings (English / French / German / Italian), bus error code table
There is no official Chinese version manual, only the original English PDF, mostly third-party simplified translation materials in China

Typical Application Scenarios
Coal power, chemical industry, metallurgy GE 90 series PLC + Genius remote I/O field debugging, fault emergency repair
Distributed bus node address allocation, communication anomaly location, line short circuit / module fault troubleshooting
Old GE Genius system technical renovation, I/O expansion, bus redundancy loop debugging
