Basic Material Information

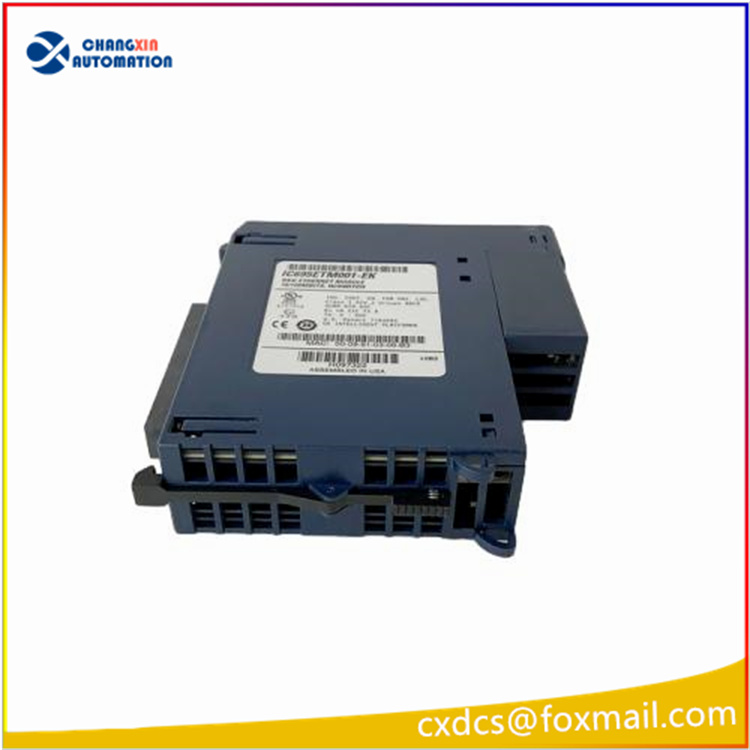

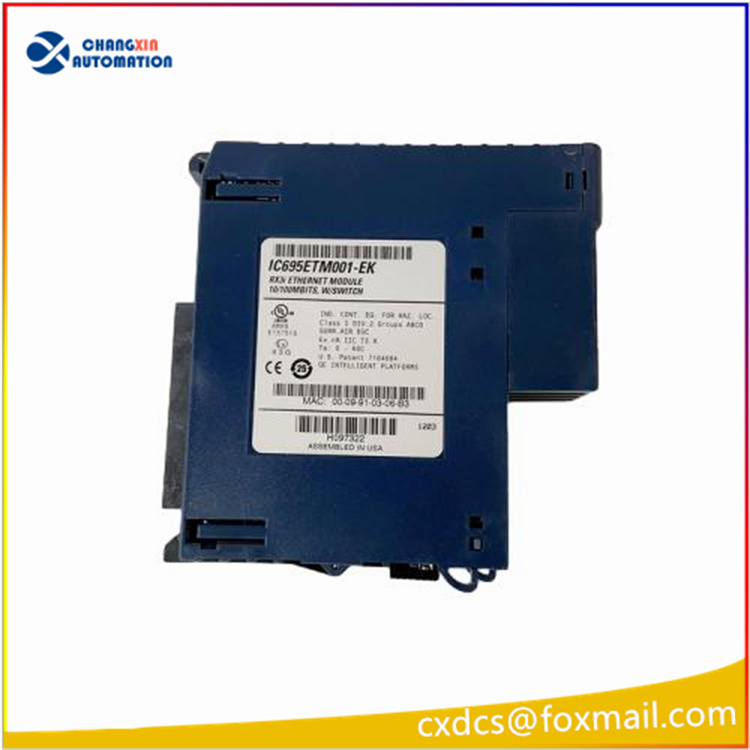

Model: IC695PSD040
Series: PACSystems RX3i PLC Ethernet Interface Module
Hardware Version: HW Standard Industrial Wide Temperature Version
Installation: Single-slot backplane plug-and-play, supports hot swapping (firmware ≥ V2.51)
Power Supply: RX3i Backplane Power Supply, No External Power Required
Certification: CE, UL/cUL, Protection IP20 (for use in cabinet)
Hardware Interfaces and Core Parameters

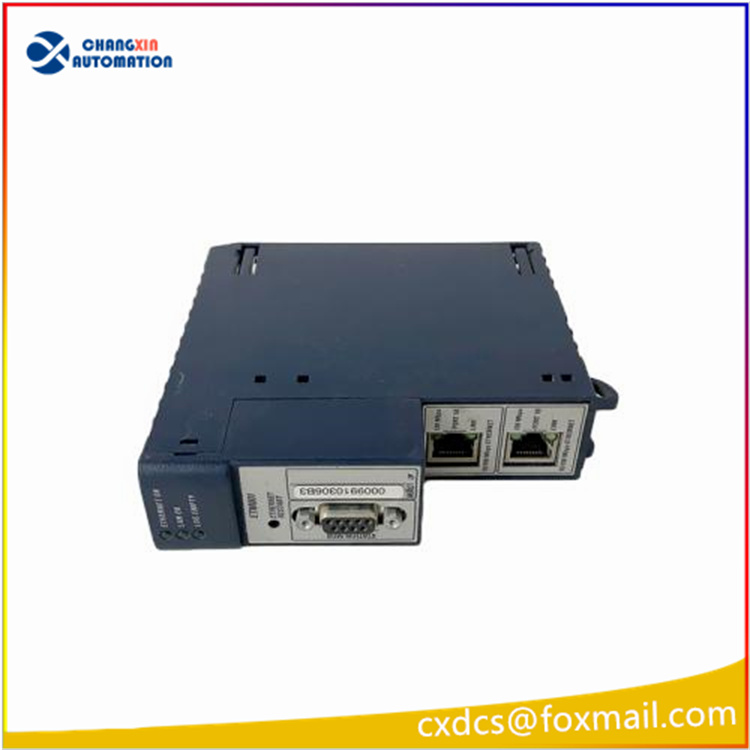

Interface Configuration
2 Shielded RJ45 Network Ports: 10/100Mbps Auto-Sensing, Built-in Layer 2 Switch, Automatic Cross-Connect Cable Recognition
1 9-Pin RS232 Debug Serial Port (Station Manager Port, Local IP Configuration, Diagnostic Debugging)
Hidden Network Port Reset Button: Only restart Ethernet Firmware, No Whole Machine Power Off Required
Hardware Configuration
Processor Frequency: 200MHz
Single IP Address, Supports Redundant IP Configuration, Used for Seamless Switching of CPU Redundant System Environmental parameters
Operating temperature: 0℃ to +60℃ (Standard Version HW)
Storage temperature: -40℃ to +85℃
Compatible backplane: IC695CHS007/CHS012/CHS016; incompatible with CPE400 processor
Support mainstream industrial communication protocols
SRTP: GE dedicated programming download, online monitoring protocol
EGD Ethernet global data: High-speed periodic data exchange between multiple PLCs
Modbus TCP master/slave stations: Connect third-party instruments, frequency converters, DCS, HMI
SNTP network time synchronization: Unified time synchronization via Ethernet, ensuring precise event and waveform time stamps

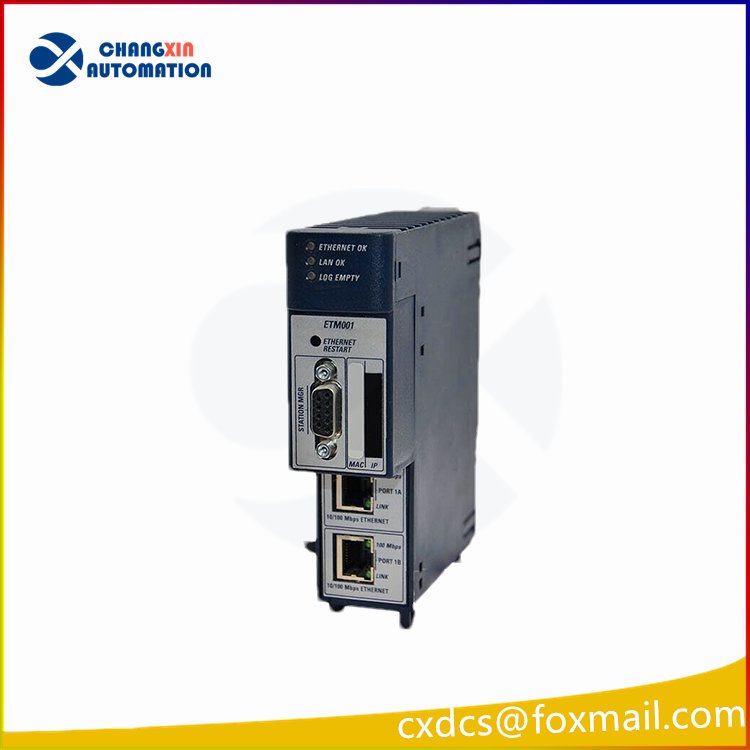

Panel indicator meanings (core fault diagnosis content of the manual)
ETHERNET OK: Always on = Module hardware is normal; Blinking = Self-check / Fault; Off = Module abnormal
LAN OK: Network interface link is normal; Blinking = Data transmission and reception
LOG EMPTY: Event log is empty; Always on indicates that there are fault logs that can be read
Each RJ45 port comes with rate/link indicator lights: Green light always on for 100M; Yellow light blinking indicates data interaction
Core functions
PLC program download, online monitoring, remote debugging
High-speed data sharing between multiple controllers, redundant system data interaction
Modbus TCP networking, connecting to upper-level SCADA, third-party intelligent devices
SNTP global time synchronization, fault event log storage, remote firmware upgrade
Dual network ports can be used for redundant wiring; single IP redundancy compatible with RX3i CPU redundancy architecture
