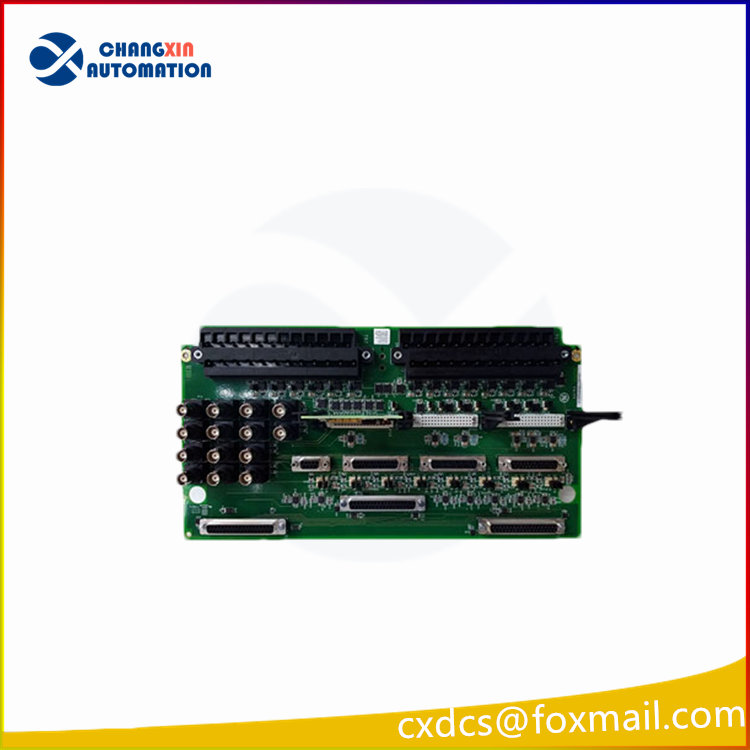

GE IS200TVBAH2ABA is not a dedicated vibration monitoring card, but rather a redundant logic module of the turbine protection system. It belongs to the Speedtronic Mark VIe control system and is specifically designed for high-speed rotating equipment such as gas turbines and steam turbines, to achieve highly reliable safety protection functions.
Core functions and features
Three-out-of-Two Voting Logic:
The module performs hardware-level three-out-of-two (2oo3) voting on three independent trip/protect signals (such as overspeed, low oil pressure, high vibration).
Only when at least two signals simultaneously trigger a dangerous state, will a safety interlock command be output to avoid false tripping or refusal due to a single sensor failure.
High reliability design:
Complies with IEC 61508 SIL2 functional safety standard, ensuring reliable operation even under extreme conditions.
Response time ≤ 10ms, meeting the real-time requirements for emergency shutdown of gas turbines and other scenarios.
Input/Output characteristics:
Supports dry contacts (NO/NC) or 24VDC active signal input, compatible with mainstream sensor and relay output levels.
Inter-channel and input/output sides adopt ≥1.5kV enhanced isolation to prevent common-mode interference from causing false actions.
Output is safety relay contacts (Form C, SPDT), rated at 250VAC / 2A, capable of directly driving the trip solenoid valve, shortening the action path.
Status monitoring and diagnosis:
Each channel is equipped with an LED indicator (green = normal, red = fault/inconsistent), and the panel provides a “Vote OK” integrated status light.
Supports fault injection testing and voting logic verification to ensure that the module behaves in accordance with safety specifications under abnormal conditions.
Technical Specifications
Input channels: 3 independent protection signals (Channel A/B/C)
Input voltage range: 0–30VDC
Output type: Safety relay contacts (250VAC / 2A)
Operating temperature: -20°C to +70°C
Protection class: IP54 (dust and water protection)
Certification standards: IEC 61508 SIL2, UL 61010-1, CE EMC Directive
Application scenarios:
Gas turbine protection:
Receive signals from three independent speed probes. Trigger emergency shutdown when any two exceed 110% of the rated speed to prevent equipment damage.
Monitor three oil pressure switch signals. After a three-out-of-two voting, control the main fuel valve to close to avoid dry friction damage to the bearings.
Electrical fault protection:
Integrate differential protection, reverse power and other relay outputs to achieve rapid mechanical disconnection in the event of electrical faults.
High reliability environment:
In environments with limited space and difficult maintenance, rely on its high reliability to achieve unmanned safe operation.
