GE IS210AEBIH1BED AE Bridge Interface Communication Card
I. Basic Positioning
Brand System: GE Vernova (formerly GE Energy) Speedtronic Mark VIe Distributed Turbine Control System, full name: AE Bridge Interface Card (AEBIH Bridge Communication Module)
Model Interpretation
IS210: Prefix of the Mark VIe Remote I/O Pack board
AEBIH = Alternative Energy Bridge Interface (specifically for wind power)
Suffix 1BED: Complete order code for hardware version and firmware batch
Core Purpose: High-speed data bridge between the wind turbine pitch control, the auxiliary control subsystem of the unit, and the Mark VIe main control CPU (IS415UCVGH1A); also compatible with remote I/O station communication for gas / steam turbine
Architecture Form: Standard I/O Pack independent card type, equipped with dedicated terminal base for installation, supports simplex, TMR triple redundancy safety architecture (SIL2)
Core Hardware and Communication Specifications
1. Bus and Interfaces
Backplane side: Specialized high-speed parallel AE bus, connects to the local I/O terminal base

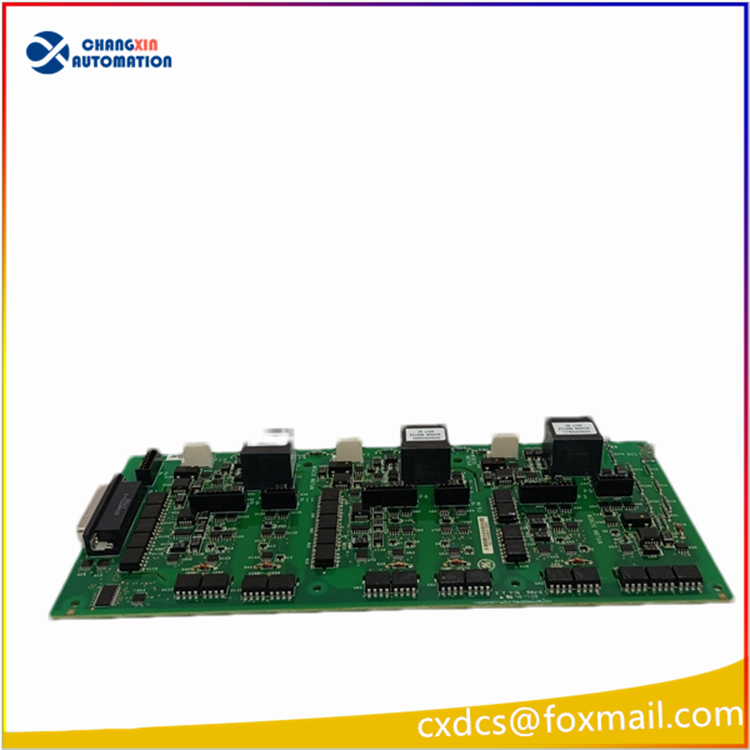

Built-in isolation transformer: 3 independent signal isolation channels, with a withstand voltage of 1500VAC, resisting strong electromagnetic interference from the wind turbine frequency converter

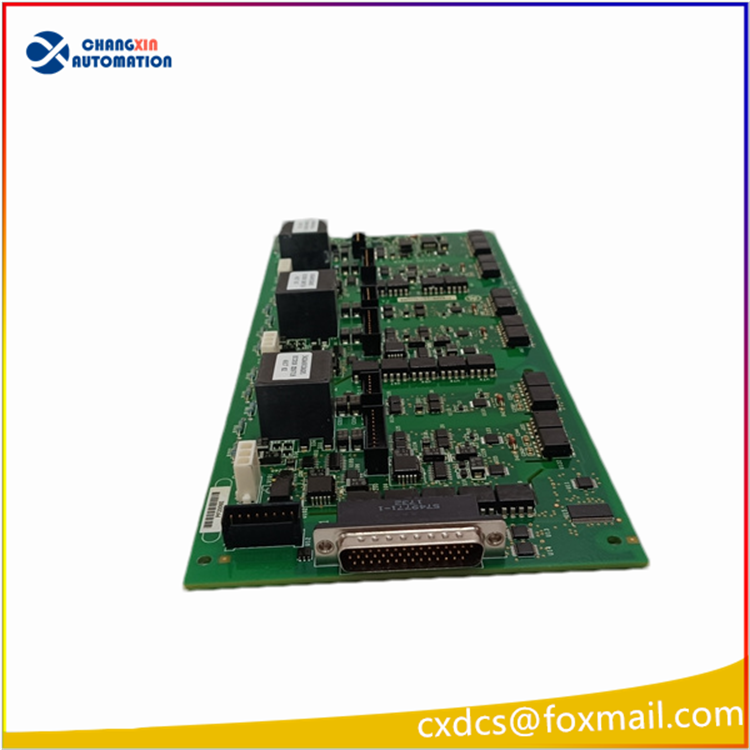

External DB25 multi-pin interface: for extended sub-signals, local encoders, pitch drive communication links
Dual internal high-speed serial buses, interacting with the rack VME main control board in real time for speed, angle, alarm, and control instructions
2. Electrical Power Supply
Power Supply: 24VDC power supply from the I/O Pack base, typical power consumption of the entire unit is approximately 5W
32-bit industrial RISC signal processing chip, millisecond-level data forwarding delay, ensuring the real-time performance of pitch loop control
3. Physical Size and Weight
Size: 292 × 130 × 27 mm
Net Weight: 0.32kg, PCB with full three-proof anti-corrosion coating, metal shielding frame
Key Functional Characteristics
Wind Turbine Pitch System Exclusive Bridge
As an intermediate hub between the pitch I/O (IS200AEPAH1ACB) and the Mark VIe main control, it forwards blade angle, servo current, limit stop, brake control signals; quickly transmits safe shutdown instructions in case of overspeed faults
Full-channel Hardware Fault Self-Diagnosis
Real-time inspection of bus disconnection, isolation circuit abnormalities, power supply under-voltage, communication packet loss; fault codes, event timestamps are stored in onboard flash memory, and the ControlST software can remotely read the traceability
TMR Redundancy Fault Tolerance Compatibility
Three IS210AEBIH1BED cards operate in parallel voting mode, a single card failure automatically isolates, the protection circuit of the unit does not have a refusal to jump or incorrect action, meeting the IEC 61400-1 safety specifications for wind power
Multi-protocol Transparent Forwarding
Compatible with GE’s private AE safety bus, Modbus RTU, SRTP real-time transmission protocol, can relay 4–20mA analog signals, encoder pulses, switch quantity DI/DO types of all signal types
No Shutdown Maintenance
Supports hot-swappable replacement under redundant configuration, during the operation of the wind turbine / unit, a faulty bridge interface card can be replaced separately without interrupting the control logic
Environmental Tolerance Parameters Table
Parameter items Specifications
Standard operating temperature -40℃ ~ +70℃
Storage temperature -40℃ ~ +85℃
Humidity 5%–95% RH without condensation, resistant to salt fog and dust
Anti-vibration and shock resistance Complies with IEC 61400 wind turbine vehicle-mounted vibration grade
Protection level IP20 (installed in control cabinet)
EMC certification CE industrial electromagnetic compatibility, SIL2 functional safety certification
V. System compatibility and accessories
Upstream main control: IS415UCVGH1A (V7666-111000) Mark VIe VME CPU motherboard
Downstream I/O subcard: IS200AEPAH1ACB pitch shaft I/O board, various AI/DI/DO signal acquisition Pack card
Installation base: Matching IS210 series standard I/O Pack terminal block
Debugging software: GE ControlST, Toolbox, for firmware upgrade, bus configuration, online diagnostic recording
Equivalent series substitution: IS210AEBIH3BED (enhanced high bandwidth version, for data throughput scenarios replacement)
Typical application scenarios
Onshore / Offshore wind turbine generators (the main scenario): Three independent pitch systems communication bridge for megawatt-level wind turbines
Gas / Steam turbine power stations: Remote auxiliary I/O station, valve position actuators, circulating water pump control cabinet communication relay
Combined cycle power plants: Waste heat boiler, turbine auxiliary control distributed I/O expansion
Oil and gas compressor units: Anti-surge valve, vent valve remote signal acquisition bridge
