GE IS215VCMIH2CB VME Bus Master Communication Interface Board

Product Description

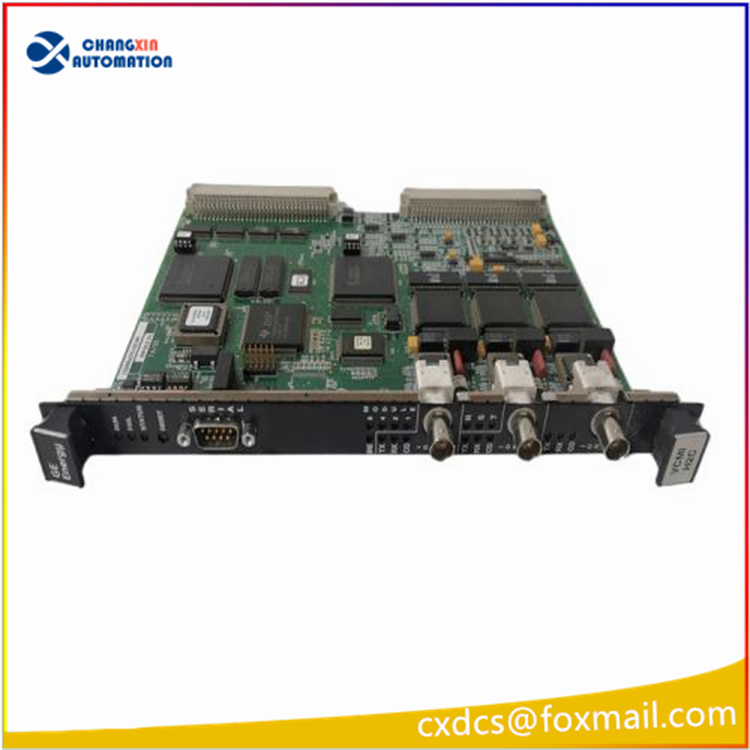

GE IS215VCMIH2CB (VCMI) is a VME Bus Master Communications Interface Board for GE Speedtronic Mark VI turbine control system, a core communication card for TMR triple modular redundant architecture. It is equipped with TI TMS320C32 32-bit DSP. As IONet system control network master, it coordinates data exchange between control racks and I/O expansion racks, manages ID recognition of all modules and terminal boards inside the rack, and delivers high-speed deterministic real-time communication among main processors, I/O modules and protection modules. Front panel has 3 IONet (10Base2 coax) ports, RS232 debug serial port, run/fault LED indicators and reset button. Widely deployed on gas and steam turbine controls in power plants to ensure synchronization and reliable data voting for TMR systems.

Specifications

• Part No.: IS215VCMIH2CB
• Brand: GE (GE Vernova)
• Type: VME Bus Master Controller / VCMI Communications Interface Board
• System: Speedtronic Mark VI Turbine Control System
• Processor: TI TMS320C32 32-bit DSP
• Memory: 32K dual-port SRAM, 128K×8 Flash memory
• Form Factor: 6U VME board
• IONet Ports: 3 × 10Base2 (RG-58 thin coaxial cable)
• Debug Port: 1 × RS232C serial port (D-sub connector)
• Power Supply: +5V, +12V, +15V, +28V via VME backplane
• Power Consumption: approx. 25W
• Operating Temperature: -40℃ ~ +70℃
• Indicators: Status, Fail, Run, channel TX/RX/CD LEDs, with reset button
• Architecture Support: TMR triple redundant system, IONet global frame synchronization
• Key Functions: VME bus master, rack board ID management, IONet network master, real-time data forwarding, system synchronization, fault diagnostics

Applications

1. Communication backbone for TMR triple redundant control systems of GE Mark VI gas turbines and steam turbines
2. Data bridge between turbine control racks and remote I/O racks in combined cycle power plants
3. Turbomachinery safety control networks for petrochemical plants and offshore platforms
4. High-speed real-time data exchange between main controllers, I/O modules and trip protection modules
5. Critical rotating machinery control in power plants for 3-channel data acquisition and voting synchronization

Mark VI VCMI Series Part Numbers

• IS215VCMIH2CA: First generation VCMI communication board
• IS215VCMIH2CB: Revised version (this item)
• IS215VCMIH2CC: Later hardware revision
• IS215VCMIH1C: Older VCMI board with single IONet port
• IS200VCMIH2BCD: Early Mark VI derivative VCMI model
