Product Description

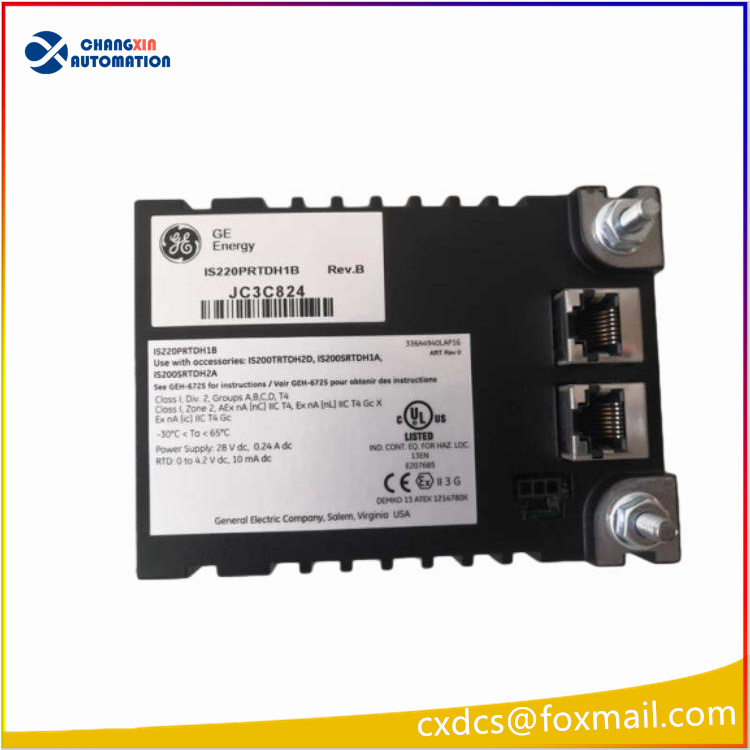

IS220PRTDH1B is an RTD resistance temperature input module for GE Speedtronic Mark VIe turbine control system. The module collects signals from platinum RTD sensors to monitor and protect temperature points of steam turbine, gas turbine bearings, lube oil, motor windings and other measuring points. It supports hot swap and built-in channel fault diagnosis. It can expand temperature measuring channels with TRTD terminal board. Equipped with dual I/O Ethernet ports to connect to Mark VIe control network, the module has galvanic isolation for stable and reliable operation. It is a core I/O spare part for power plant turbine control systems.
Data Sheet
| Item | Specification |
|---|---|
| Model | IS220PRTDH1B |
| Series | Mark VIe / Mark VIeS |
| Type | RTD Temperature Input Module |
| Channels | 8 onboard RTD inputs; up to 16 channels with TRTD terminal board |
| Supported RTD Sensors | Pt100, Pt200, Pt500, Pt1000 |
| Temperature Range | -200℃ ~ +850℃ |
| ADC Resolution | 16-bit |
| Communication | Dual I/O Ethernet for Mark VIe control network |
| Operating Temperature | -40℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Relative Humidity | 5%~95%, non-condensing |
| Max Power Consumption | 2W |
| Isolation | Galvanic isolation on RTD channels |
| Features | Hot-swap capable, channel self-diagnostics, status LED fault indication |
| Protection Class | IP20 (module body) |
| Weight | Approx. 0.2~0.36kg |
| Origin | USA |
Product Application
It is mainly used in Mark VIe control systems for gas turbines and steam turbines. It monitors and protects bearing temperature and lube oil temperature in thermal power plants and combined cycle power stations. It is also applied in oil & gas industry, large industrial power equipment and generator sets for temperature acquisition, over-limit protection and process temperature monitoring.
Related Series Models
- IS220PRTDH1A (old version RTD input module)
- IS220PRTDH1BC (derivative version)
