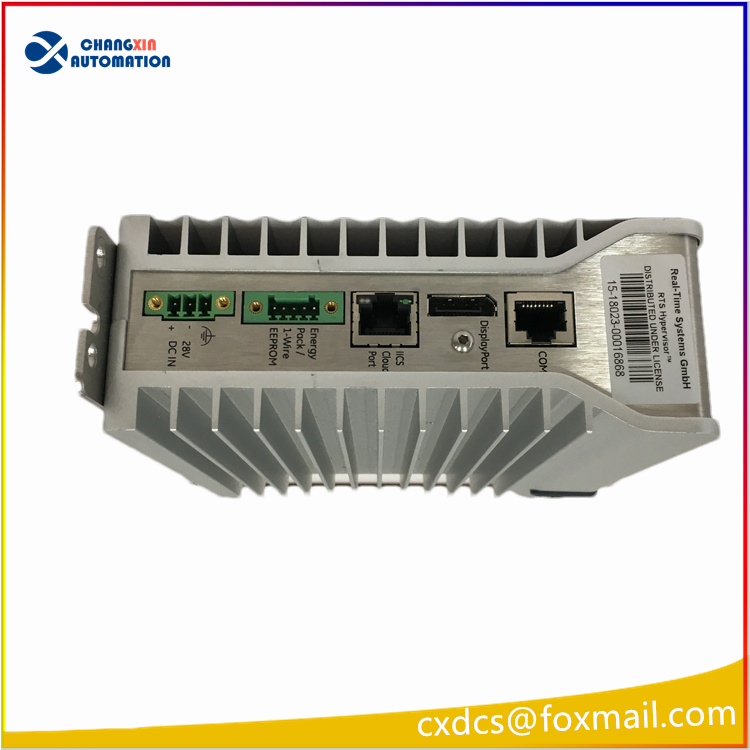

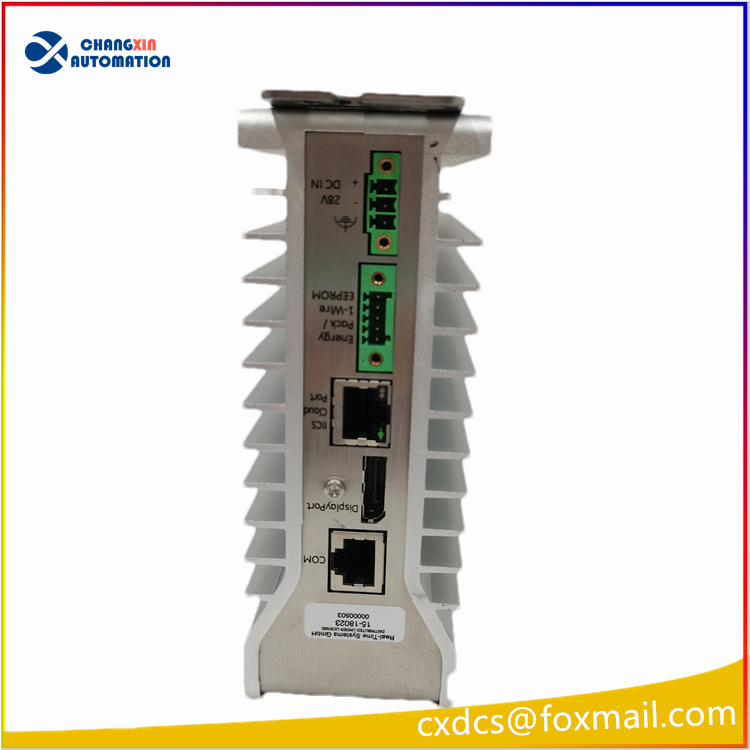

GE IS420UCSCS21A Mark VIeS Safety SIS Controller

GE IS420UCSCS21A (Base Model IS420UCSCS2) Mark VIeS Safety SIS Controller
I. Model Basic Information
Full part number: IS420UCSCS21A, Core Function Model: IS420UCSCS2
Brand: GE Vernova (formerly GE General Electric)
Platform: Mark VIeS Triple Redundant SIL Safety Instrumented System (ESD emergency shutdown, unit protection dedicated)
Position: Dual-core safety main control CPU, core for safety logic operation of steam turbines / gas turbines, power generation units, meeting IEC61508 SIL2 safety level

Interpretation of Model Characters
IS420: Unified prefix for Mark VIe/VIeS controllers
UCSC: Universal Controller Signal Carrier – General-purpose safety controller carrier
S: Safety – Safety type (specific for VIeS SIS, distinguishes from ordinary UCSB/UCSCH control CPUs)
2: Second-generation hardware platform
1A: Version, coating / configuration suffix, determines firmware and terminal configuration, cannot be used interchangeably

Core Hardware Configuration Processor
AMD G-Series dual-core at 1.6GHz, dual-path independent computing voting, fault-tolerant architecture, meeting the dual-check logic requirements of the security system
Memory storage
Standard configuration includes 2GB DDR3 industrial-grade memory and large-capacity SSD; storage security logic programs, fault recording, and trip event recording Operating System
QNX Neutrino is a real-time secure operating system with hard real-time performance without jitter, and millisecond-level secure interlock response.
Communication interface (multiple network ports redundancy)
Multi-channel IONet real-time industrial Ethernet: connects IS420YUAAS1A and other remote analog/digital I/O modules
Redundant Gigabit Ethernet RJ45: connects Cimplicity upper-level HMI and third-party DCS (ABB 800xA excitation system)
USB debugging port, local Console maintenance port
Supports IEEE1588 high-precision clock synchronization, with the entire system achieving microsecond-level timing alignment
Electrical specifications
Power supply: DC18~30V (cabinet 24V DC)
Fanless cooling, full metal heat sink, IP20 cabinet installation
Operating temperature: -40℃ ~ +70℃ wide temperature power plant conditions
Power consumption: approximately 30W, supports TMR triple redundancy rack parallel operation

Core safety functions (core of SIS system)
Safety function SIF logical operation
Executes protection logic such as overspeed, high vibration, low oil pressure, temperature limit, excitation failure, etc., and drives the ESD emergency trip circuit
Dual hardware voting fault tolerance
Dual-core independent operation, comparison of two paths’ results, single-channel failure does not trigger false shutdown, in line with SIL2 safety specification
Triple redundancy TMR architecture support
Three IS420UCSCS21A operate in parallel voting, used for high-reliability unit protection of large steam turbines / gas turbines
Fault diagnosis and event recording
Real-time self-check of CPU, network, I/O circuits, power supply; permanently stores process data before and after tripping for accident analysis
Safety interlock isolation
Hardware independent safety trip output, unaffected by upper-level communication, program anomalies, ensuring reliable shutdown of unit in case of failure

System component list
Safety main controller: IS420UCSCS21A (this SIS controller)
Remote I/O module: IS420YUAAS1A universal analog input/output card
IONet industrial network cables, redundant switch
Upper-level monitoring: GE Cimplicity HMI, Plant Historian history server
Companion excitation system: ABB UNITROL 6000 excitation cabinet (PPC907BE, UFC921A boards)
Configuration software: ControlST / ToolboxST (program download, protection setting)

Typical application scenarios
ESD safety protection system for gas turbines and steam turbines in combined cycle power plants
Over-speed, vibration, oil pressure safety interlock for large-scale power generation units in hydropower and thermal power
SIS emergency shutdown device for large-scale compressors and booster units in oil and chemical industries
Safety instrument control system for self-owned power plants, steel mills, steam turbines generators, combined with TSI vibration monitoring (Ingersoll Rand 3500)
