Product Description

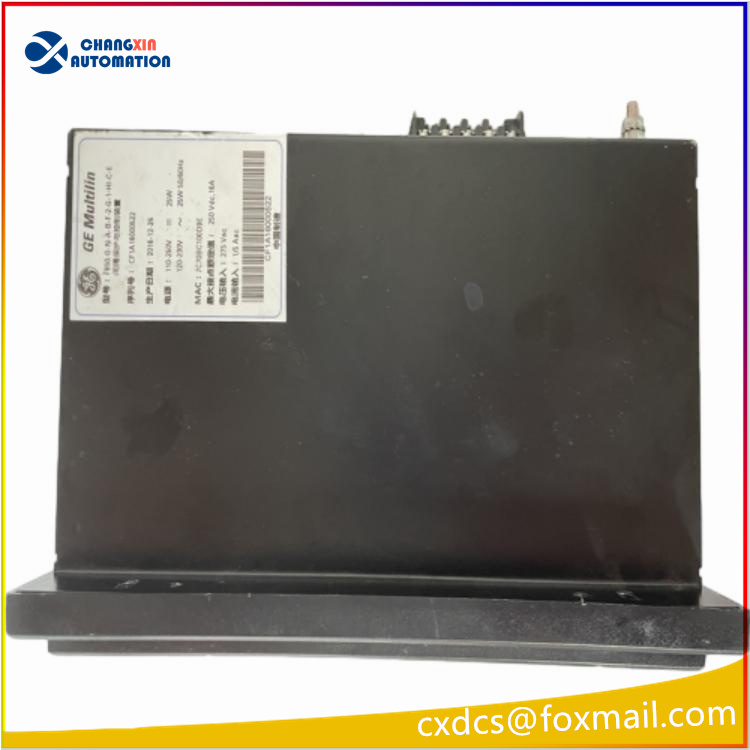

GE Multilin F650‑G‑N‑A‑B‑F‑2‑G‑1‑HI‑C‑E is a high‑performance feeder protection and bay controller IED within GE Vernova F650 series. Adopting dual‑DSP hardware architecture, the “G” variant is equipped with color graphical LCD HMI. It integrates relay protection, metering, local control, fault oscillography and sequence‑of‑event (SOE) recording. It supports FlexLogic programmable logic configuration and comprehensive feeder protection algorithms. With modular plug‑in hardware and multi‑channel I/O, multiple communication ports can operate simultaneously. It supports mainstream power‑system communication protocols for connection with substation SCADA and supervisory systems. Configuration, commissioning and post‑fault analysis are completed via EnerVista software. Built‑in hardware self‑diagnosis and time‑synchronization functions are available. Widely deployed in medium‑voltage power distribution systems, it serves as critical spare‑part protection relay for legacy‑project maintenance and replacementGE Vernova.
Technical Specifications
| Item | Specification |
|---|---|
| Full Model | F650‑G‑N‑A‑B‑F‑2‑G‑1‑HI‑C‑E |
| Brand | GE Multilin (GE Vernova) |
| Product Type | Feeder Protection & Bay Controller IED |
| Hardware Architecture | Dual‑DSP real‑time processing architecture |
| Human‑Machine Interface | G‑type color graphical LCD, supports single‑line diagram, waveform display, local keypad operation |
| Power Supply | HI range:110‑250VAC /110‑300VDC, Max. power consumption ≤15W |
| Current Input | CT secondary 1A /5A configurable |
| I/O Allocation | Multi‑channel programmable digital inputs, programmable relay outputs, trip‑circuit supervision supported |
| Communication Ports | Dual Ethernet RJ45, RS232; multi‑port simultaneous operation |
| Supported Protocols | IEC61850 Ed2, Modbus TCP/RTU, DNP3.0, IEC60870‑5‑103/104, PRP/HSR redundancy, IEEE1588(PTP) time synchronizationGE Vernova |
| Main Protection Functions | Phase / neutral / ground overcurrent, directional overcurrent, sensitive earth‑fault, over‑voltage & under‑voltage, frequency protection, breaker‑failure, synchro‑check, up to 4‑shot auto‑reclosing, load‑shedding etc.GE Vernova |
| Data Recording | COMTRADE fault oscillography, 479 time‑stamped SOE event records |
| Configuration Software | EnerVista |
| Operating Temperature | -40℃ ~ +70℃ |
| Certifications | IEC60255, UL1053, CE, KEMA |
| Mounting | Panel flush‑mount for standard switchgear cabinet |
| Features | Modular plug‑in structure, on‑board self‑diagnosis, flexible logic programming, multi‑protocol compatibility |
Product Application
- Industrial Substations: Feeder & incoming‑line protection for 10‑35kV medium‑voltage switchgear, ring‑main‑unit automation, fast fault isolation, local operation and monitoring.
- Utility Power Distribution: Bay‑level protection for municipal distribution substations, line‑fault protection, auto‑reclosing control, interfacing with SCADA dispatching system.
- Petrochemical Industry: Medium‑voltage power distribution inside plants, comprehensive protection for motors, transformers and feeders, interlock control.
- Metallurgy & Mining: High‑voltage power rooms for heavy‑industry sites, energy metering, fault waveform capture and event traceability.
- Spare‑part Replacement: Faulty‑unit replacement for legacy F650 installations, renovation & maintenance of existing substations, substitution for older‑version IEDs of same family.
