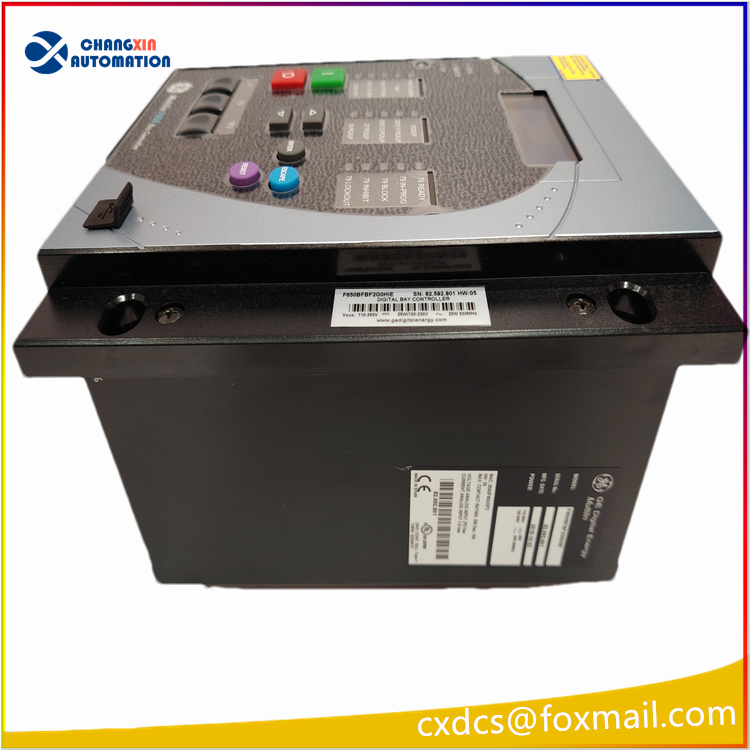

GE Multilin F650BFBF2G0HIE Medium Voltage Feeder Protection and Control Device

GE Multilin F650BFBF2G0HIE Medium Voltage Feeder Protection and Control Device
I. Basic Information
Brand: GE Vernova (formerly GE Multilin)
Full Name: F650 Feeder Protection & Bay Controller
Complete Model Analysis: F650-B-F-BF-2-G0-HI-E
B: Basic hardware configuration, standard front panel LCD, single primary side input
F: Standard protection software package (full feeder protection logic)
BF: Dual communication interface configuration
2: DI/DO point expansion version
G0: No fiber, standard RJ45 Ethernet + RS485
HI: Auxiliary working power supply DC 110～250V / AC 120～230V wide AC/DC applicable
E: International English firmware version, supports IEC/ANSI protection curves
Application Scenarios: 10kV/35kV distribution lines, switchgear stations, substation bay protection, plant power feeders, capacitors, motor protection, backup auto-switching, line automation remote measurement and control GE Vernova.

Core Protection Functions (ANSI Standard)
1. Current Class Protection
Phase-to-phase time-limited / reverse-time overcurrent (51P), instantaneous overcurrent (50P)
Grounding, sensitive grounding reverse-time / instantaneous protection (51N/50N)
Negative-sequence overcurrent protection (46), zero-sequence direction overcurrent
Overload alarm, thermal overload protection (49), CT disconnection detection
2. Voltage & Frequency Class Protection
Overvoltage / undervoltage (59/27), zero-sequence overvoltage protection
High frequency / low frequency, frequency change rate ROCOF low-frequency load shedding (81O/U)
Loss of voltage backup auto-switching, synchronous check / check for no voltage for closing (25)
3. Auxiliary Protection and Control Logic
Breaker failure protection, three-phase one-time reclosing (79)
Reverse power, direction power protection (32)
PT disconnection alarm, fault recording, 1ms precision SOE event sequence recording
Local remote control closing and opening, anti-misoperation locking, breaker wear monitoring (I²t) GE Vernova

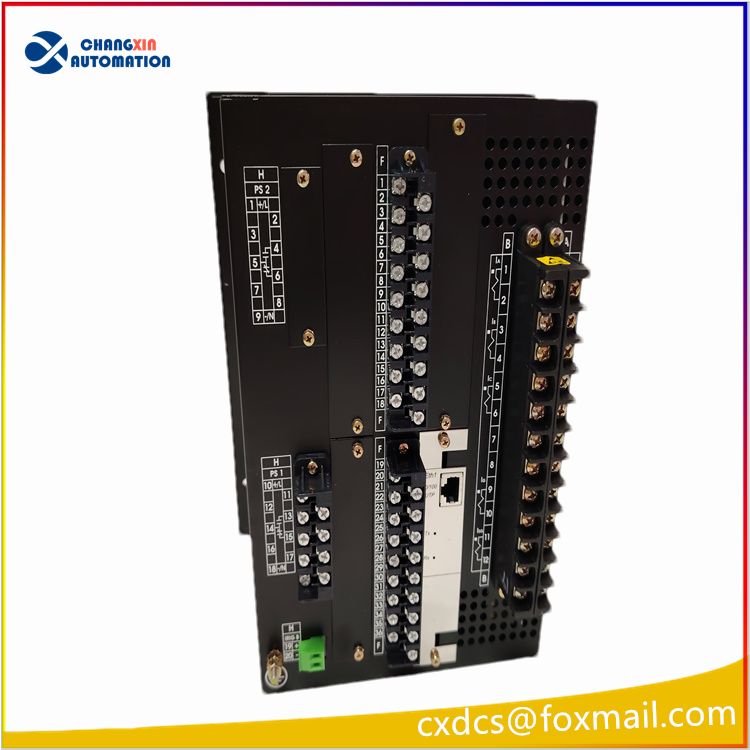

Hardware I/O Configuration
Analog Input
Three-phase current (1A/5A CT selectable), three-phase voltage (100V PT), zero-sequence current, zero-sequence voltage
Switching Quantity DI: 16-pair passive switch input (circuit breaker position, disconnect switch, energy storage, local/far control, protection setting)
Switching Quantity DO: 12-pair relay output (trip, close, alarm, signal upload)
High-precision measurement: active power / reactive power, electricity consumption, power factor, harmonic measurement

Communication Interfaces (BF Dual Communication Configuration)
1 Channel 10/100M RJ45 Ethernet: supports IEC 61850, Modbus TCP, IEC 104
1 Channel Isolated RS485: Modbus RTU, IEC 60870-5-103 protocol
Can be connected to substation integrated automation system, SCADA background, DCS to achieve four remote functions (telemetry, signaling, remote control, remote adjustment).

Electrical and Environmental Parameters
Auxiliary Power (HI Mode): DC 110～250V / AC 96～250V AC/DC applicable
Rated Input: CT 5A/1A, PT 100V
Action Accuracy: Overcurrent ±3.5%, Time Accuracy ±50ms
Operating Temperature: -40℃～+70℃; Storage – 40℃～+85℃
Protection: Panel IP65, body IP40; 6U half 19-inch rack embedded installation Dimensions: 222 (H) × 205 (W) × 250 (D) mm, net weight approximately 3.2 kg
