GE RS-FS9001 362A1052P404 flame detector

Product Description

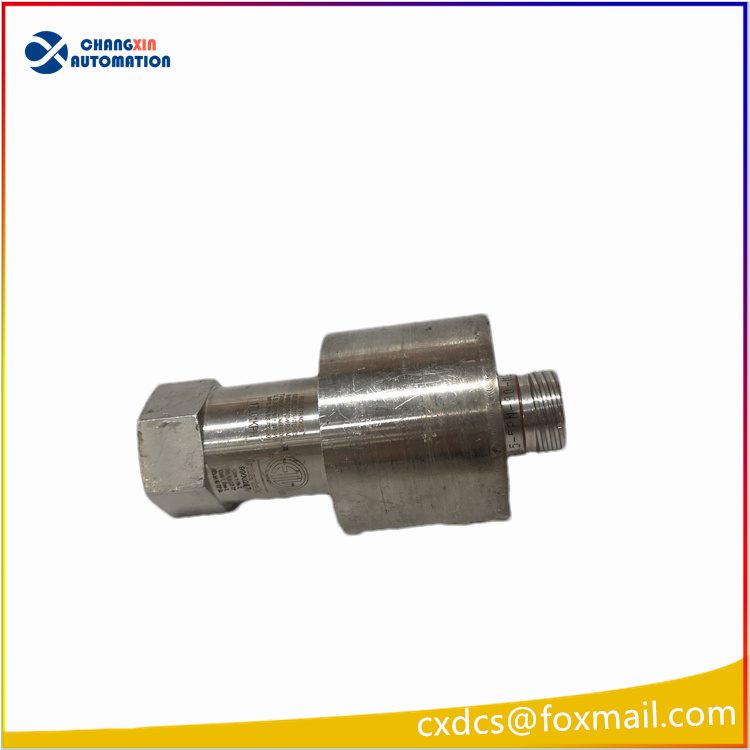

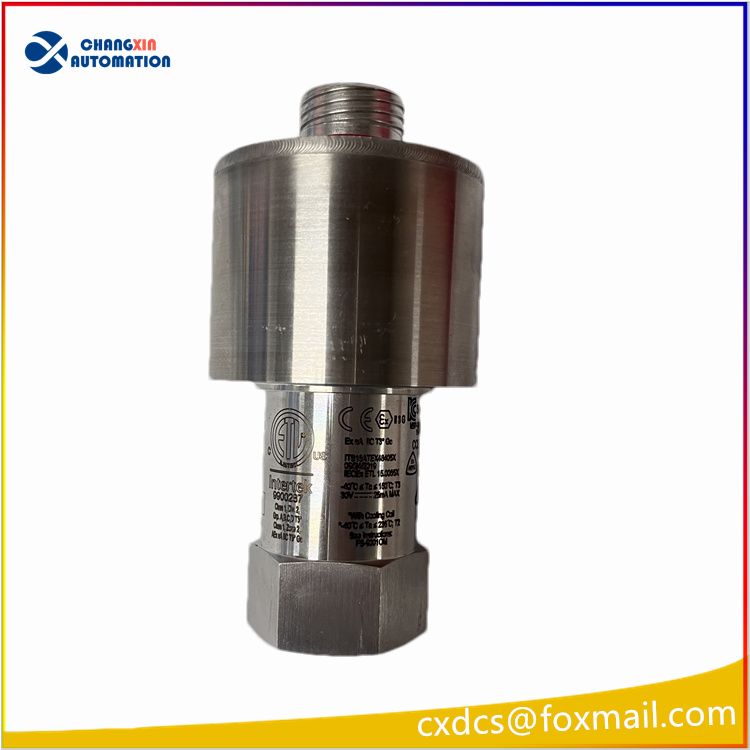

GE RS-FS9001 (Part No. 362A1052P404) Flame Tracker, originally Reuter-Stokes, is an ultraviolet (UV) flame detector probe. It adopts silicon carbide photodiode sensor and sapphire optical window to detect ultraviolet radiation of combustion flame in real time, transmitting 4-20mA analog signal to Burner Management System (BMS). With spectral discrimination function, it can distinguish real flame from background infrared radiation of hot furnace refractory to avoid false alarm. The fully sealed argon-filled stainless steel housing adapts to high temperature, vibration and dusty site conditions of boilers and gas turbines. It monitors flame presence, triggers fuel cut-off protection rapidly upon flame loss and ensures safety of combustion systems.

Technical Parameters

• Model: RS-FS9001, Part Number: 362A1052P404
• Type: Ultraviolet Flame Detector / Flame Scanner Probe
• Sensor: Silicon Carbide (SiC) Photodiode
• Optical Window: Sapphire
• Output Signal: 4~20mA DC, 2-wire
• Supply Voltage: 12~30VDC, typical 24VDC
• Response Time: ＜25ms
• Operating Temperature: -40℃ ~ +150℃ (probe body)
• Housing Material: 304 stainless steel, argon filled hermetic sealing
• Connector: MIL-C-38999 Series I, 5-pin military connector
• Certification: ATEX certified for hazardous area
• Mounting: Threaded flange furnace wall mounting
• Features: Flame spectral discrimination, anti background thermal interference, high MTBF

Product Applications

1. Flame monitoring for gas turbines, industrial boilers, incinerators and burners within BMS burner management safety systems.
2. Real-time flame detection and flame loss interlock protection for combustion equipment in thermal power, petrochemical and oil & gas industries.
3. Used in hazardous combustion equipment to discriminate true flame against hot refractory radiation and reduce false trips.
4. Spare parts replacement and maintenance for legacy GE combustion control and BMS systems.
5. Industrial combustion safety interlock protection; fast fuel shutoff upon flame-out to prevent explosion hazards.

Series Models

• RS-FS9001 (362A1052P404): Standard UV flame probe for general industrial combustion applications
• RS-FS9006: Same construction, dedicated version for GE aeroderivative gas turbines
